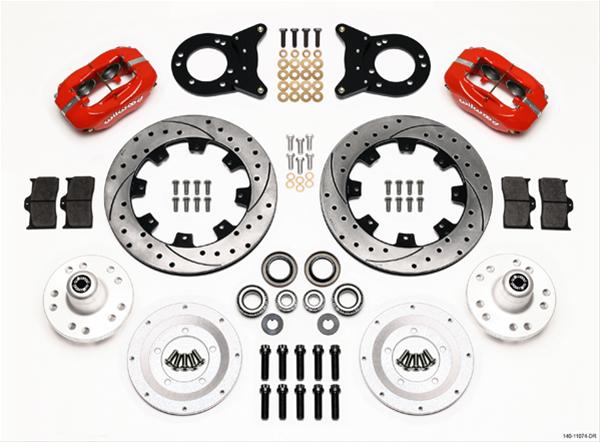

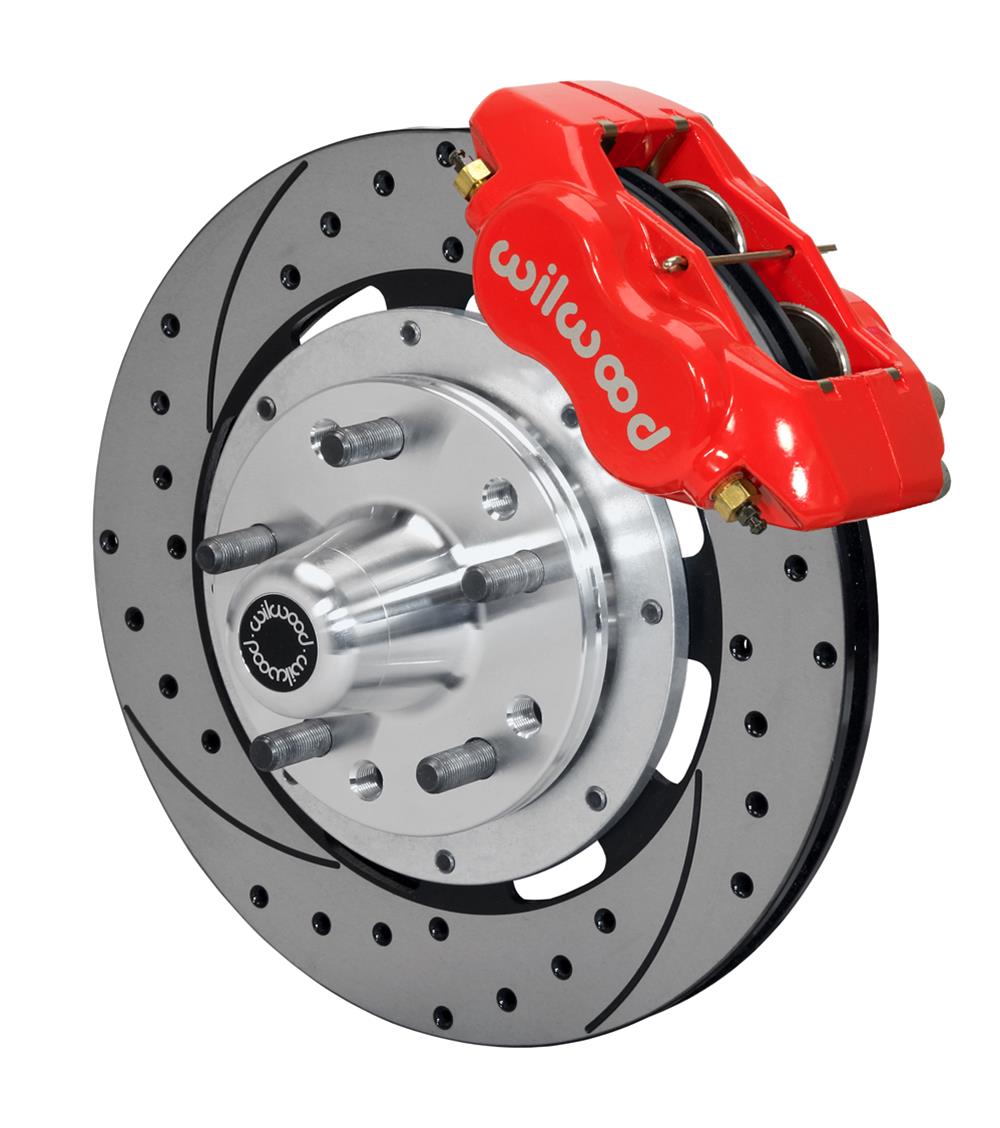

Wilwood Forged Dynalite Big Brake Front Brake Kits 140-11074-DR

With Wilwood Forged Dynalite Big Brake front brake kits, you'll be ready for show, street, or strip! Track-ready performance and high-tech style come with oversized rotors, forged billet Dynalite calipers, and high performance Wilwood SmartPads. These front brake kits are fully compatible with OE master cylinder output. Options for the caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines! The choice is yours for big stopping power--choose Wilwood Forged Dynalite Big Brake front brake kits.

Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-11074-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Forged Dynalite Big Brake Front Brake Kits
HP Direct Part Number: WIL-140-11074-DR
UPC: 889545012309
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled/Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 12.19 in./309.63mm
Front Rotor Thickness (in.): 0.81 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Four
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Red
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 15 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Includes 1/2 in.-20 wheel studs.
