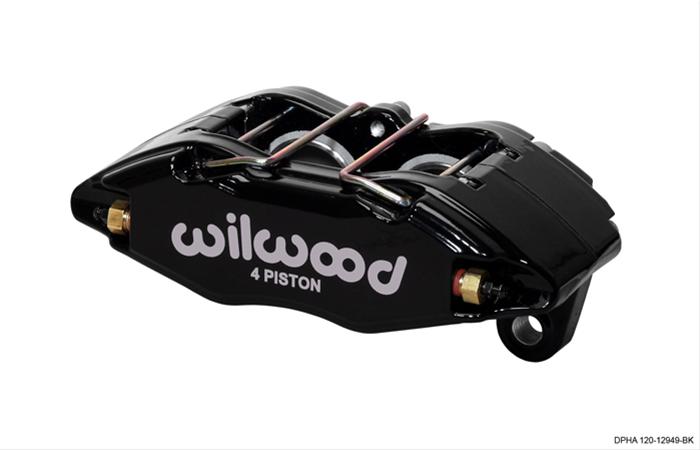

Wilwood Forged DPHA Front Calipers 120-12949-BK

Wilwood forged DPHA front calipers are DynaPro Series 4-piston calipers designed exclusively as direct bolt-ons for use on Honda ® and Acura ® models originally equipped with 262mm diameter rotors. They bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotors, accept the OE brake hose, and clear many factory aluminum 15 in. wheels.

DynaPro Honda ®/Acura ® (DPHA) calipers have forged billet bodies to deliver high-strength clamping force and positive stopping power. Plus, the stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble-free for many more miles.

Wilwood DPHA calipers work perfectly with most OE master cylinders, will maintain ABS functions, and are available in several high-gloss, high-temperature, and brake fluid-resistant sealed powdercoat colors with the Wilwood signature logo.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-12949-BK
Part Type: Brake Calipers
Product Line: Wilwood Forged DPHA Front Calipers
HP Direct Part Number: WIL-120-12949-BK
UPC: 889545002904
Caliper Series: Dynapro
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.620
Rotor Thickness (in.): 0.830 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Thread Size: M10 x 1.5
Brake Pads Included: No
Brackets Included: Yes
Bracket Material: Aluminum
Bracket Color: Black
Remanufactured: No
Quantity: Sold individually.
Notes: For use with Honda ® and Acura ® stock spindles, on models with 262mm rotors only. Bolts to factory mounts. Clears most stock 15 in. wheels.
