Description

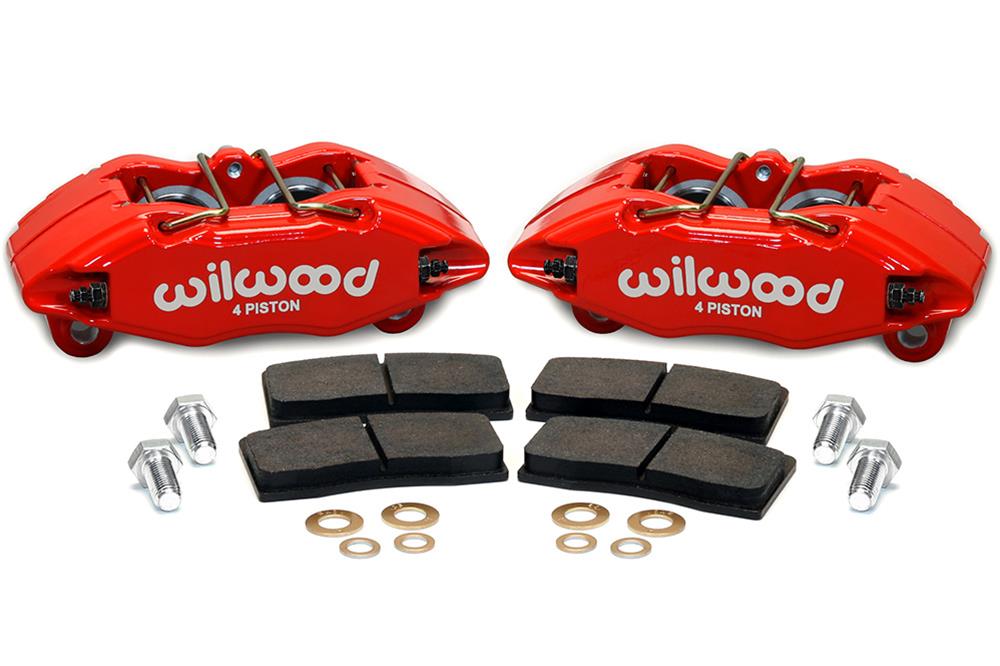

Wilwood forged DPHA front caliper kits are DynaPro packages specifically designed for Honda ® and Acura ® models originally equipped with 262mm diameter rotors. Packaged with calipers, pads, and hardware, DPHA calipers are available in several high-gloss, high-temperature, and brake fluid-resistant sealed powdercoat colors with the Wilwood signature logo.
DynaPro Honda ®/Acura ® (DPHA) 4-piston calipers have forged billet bodies to deliver high-strength clamping force and positive stopping power. Plus, the stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble-free for many more miles.
Wilwood forged DPHA front caliper kits bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels, including the EM1 Si 15 in. wheel. The calipers also work perfectly with the OE master cylinder and ABS functions.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-13029-R
Part Type: Brake Calipers
Product Line: Wilwood Forged DPHA Front Caliper Kits
HP Direct Part Number: WIL-140-13029-R
UPC: 889545018677
Caliper Series: Dynapro
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.620
Rotor Thickness (in.): 0.830 in.
Caliper Material: Aluminum
Caliper Color: Red
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: M10 x 1.5
Brake Pads Included: Yes
Brake Pad Material: Semi-metallic
Brackets Included: Yes
Bracket Material: Aluminum
Bracket Color: Red
Remanufactured: No
Quantity: Sold as a kit.
DynaPro Honda ®/Acura ® (DPHA) 4-piston calipers have forged billet bodies to deliver high-strength clamping force and positive stopping power. Plus, the stainless steel pistons provide fully balanced pad loading, along with the corrosion resistance and thermal retardant qualities of the stainless alloy that will keep your calipers cooler and running trouble-free for many more miles.
Wilwood forged DPHA front caliper kits bolt directly to the stock mounts on factory spindles, fit over the OE 262mm diameter rotor, accept the OE brake hose, and clear many factory aluminum wheels, including the EM1 Si 15 in. wheel. The calipers also work perfectly with the OE master cylinder and ABS functions.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-13029-R
Part Type: Brake Calipers
Product Line: Wilwood Forged DPHA Front Caliper Kits
HP Direct Part Number: WIL-140-13029-R
UPC: 889545018677
Caliper Series: Dynapro
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.620
Rotor Thickness (in.): 0.830 in.
Caliper Material: Aluminum
Caliper Color: Red
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: M10 x 1.5
Brake Pads Included: Yes
Brake Pad Material: Semi-metallic
Brackets Included: Yes
Bracket Material: Aluminum
Bracket Color: Red
Remanufactured: No
Quantity: Sold as a kit.
