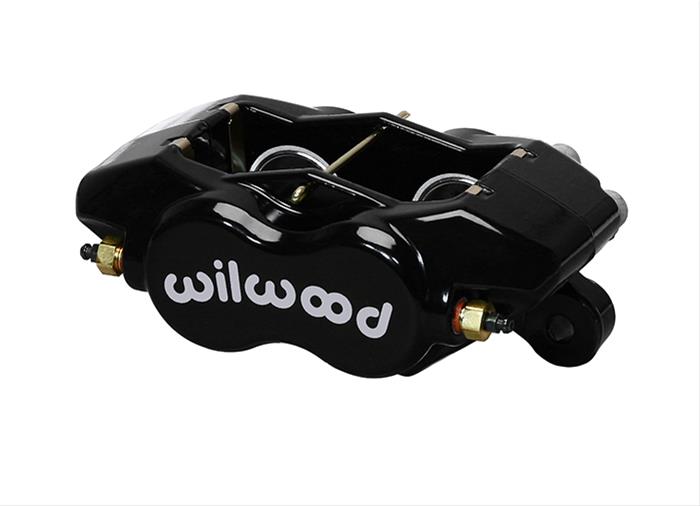

Wilwood Forged Billet Dynalite Internal Brake Calipers 120-13842-BK

Wilwood Forged Billet Dynalite Internal brake calipers are the next generation enhancement of the venerable Forged Dynalite Series calipers. The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper's body. This removes the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA-generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Billet Dynalite Internal to outperform all existing styles in this caliper class. Order the replacement model designed for your caliper application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-13842-BK
Part Type: Brake Calipers
Product Line: Wilwood Forged Billet Dynalite Internal Brake Calipers
HP Direct Part Number: WIL-120-13842-BK
UPC: 889545070910
Caliper Series: Forged Billet Dynalite Internal
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.620
Rotor Thickness (in.): 0.810 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
