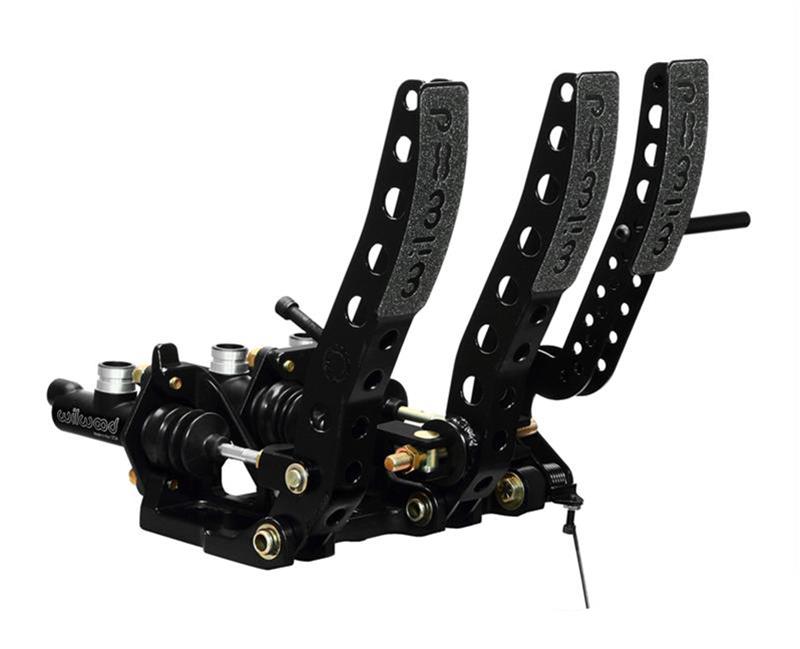

Wilwood Floor Mount Three Pedal Assemblies 340-12411

Wilwood floor mount pedals assemblies have a brake/clutch/throttle triple pedal design. The three individual fabricated steel pedals with non-slip pedal pads feature an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with this pedal trio are mounting studs, clevises, and balance bar assemblies that are designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 340-12411
Part Type: Pedal Assemblies
Product Line: Wilwood Floor Mount Three Pedal Assemblies
HP Direct Part Number: WIL-340-12411
UPC: 889545028430
Pedal Type: Throttle/Brake/Clutch
Pedal Mounting Location: Floor mount
Pedal Pad Included: Yes

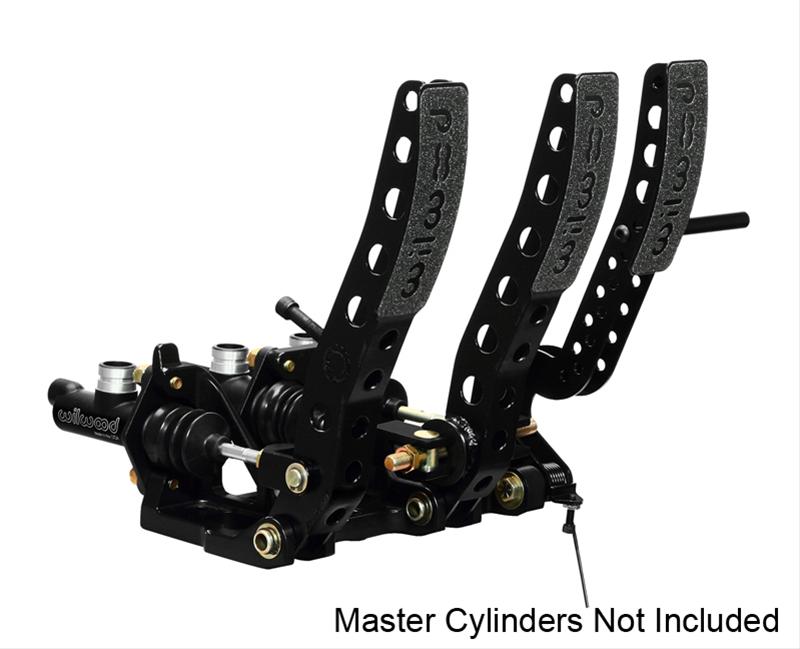

Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Black
Pedal Color: Black
Gas Pedal Shape: Rectangle
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: 5.25:1
Balance Bar Included: Yes
Master Cylinder Style: Single
Quantity: Sold individually.
Notes: Designed for use with Wilwood compact, high volume, or combination master cylinders.
