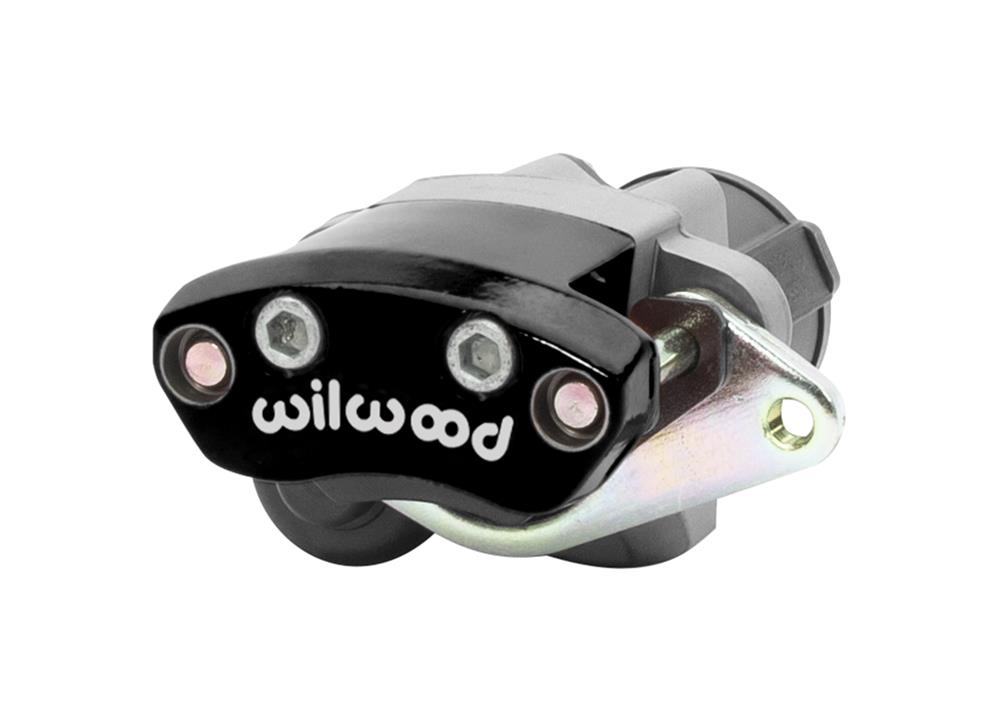

Wilwood Electronic Parking Brake Calipers 120-15700-BK

Wilwood Electronic Parking Brake (EPB) calipers are high-torque alternatives to manual cable actuated brakes. Offering a simplified installation with additional electronic control systems also available from Wilwood, these EPB stand-alone calipers are available for rotors with diameters up to 15.00 in. and with widths from .157 in. to 1.25 in. The larger units are sized for use on the rear of typical cars and trucks, while the smaller units for thinner rotors are ideal for powersports, agricultural, and utility machines with non-vented rotors as thin as .157 in.

Wilwood EPB calipers are constructed of forged aluminum for strength and lighter weight, with a steel bracket and geared motor assembly to provide 2,400 lbs. of clamping force. Right and lefthanded motor options are available for ease of installation, they are available in several finishes. Choose the size and finish preferred for your application.

Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-15700-BK
Part Type: Brake Calipers
Product Line: Wilwood Electronic Parking Brake Calipers
HP Direct Part Number: WIL-120-15700-BK
UPC: 889545091311
Caliper Series: Wilwood
Caliper Piston Quantity: One
Piston Diameter (in.): 1.250
Rotor Thickness (in.): 0.810 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: Yes
Fittings Included: No
Brake Pads Included: Yes
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Designed for 11.00 in. to 14.00 in. rotor diameter.
