Description

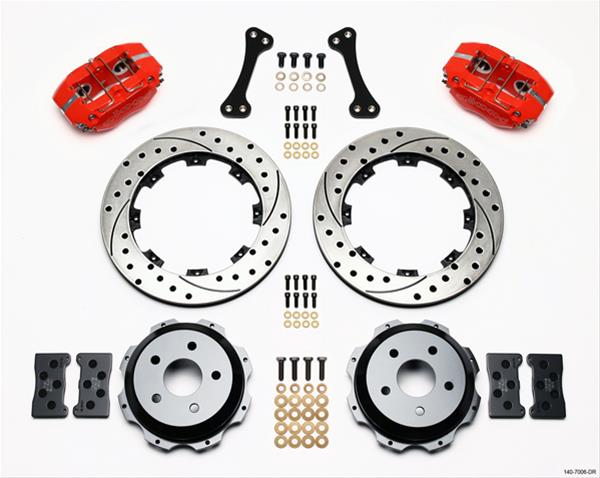

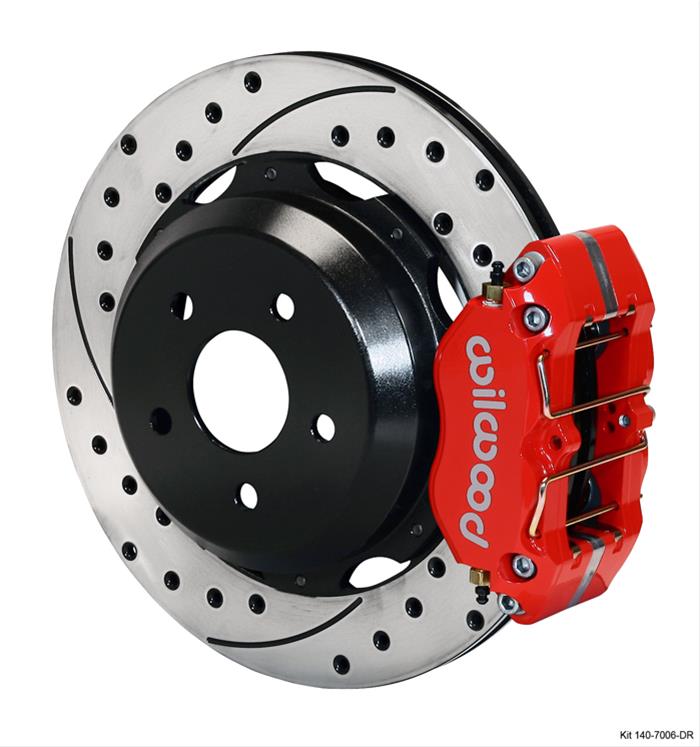

Wilwood DynaPro rear brake kits for OE parking brakes provide brake performance upgrades and retain the full function of your OE parking brake. These Wilwood rear brake kits feature forged billet DynaPro 4-piston calipers, high performance SmartPads, and rotor and hat options, offering a precise fit, high clamping power, and a firm pedal response. These specialized rear axle brake kits choose piston caliper sizes that will provide balanced rear bias ratios using the output from your OE master cylinder. Complement your OE parking brakes with the performance and style of big brake upgrades--Wilwood DynaPro rear brake kits for OE parking brakes.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-7006-DR
Part Type: Disc Brake Kits
Product Line: Wilwood DynaPro Rear Brake Kits for OE Parking Brakes
HP Direct Part Number: WIL-140-7006-DR
UPC: 889545023107
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (mm): 5 x 100.00mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 15 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.

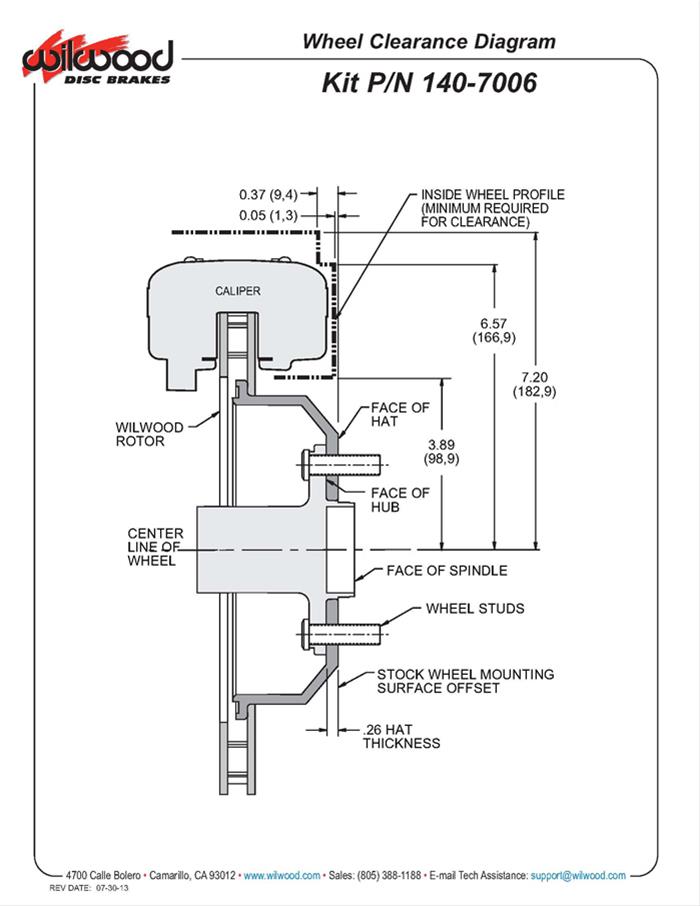

Notes: This rear brake kit fits USDM models with single piston rear calipers and 170mm parking brake shoes. Please reference the wheel clearance diagram in "Charts & Guides" if this kit is being used with 15 in. wheels, not all 15 in. wheel are compatible. Modifications to the backing plate are required for installation. This kit does not include the brake hoses necessary to complete installation, they must be purchased separately.
Manufacturer's Part Number: 140-7006-DR
Part Type: Disc Brake Kits
Product Line: Wilwood DynaPro Rear Brake Kits for OE Parking Brakes
HP Direct Part Number: WIL-140-7006-DR
UPC: 889545023107
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (mm): 5 x 100.00mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 15 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: This rear brake kit fits USDM models with single piston rear calipers and 170mm parking brake shoes. Please reference the wheel clearance diagram in "Charts & Guides" if this kit is being used with 15 in. wheels, not all 15 in. wheel are compatible. Modifications to the backing plate are required for installation. This kit does not include the brake hoses necessary to complete installation, they must be purchased separately.
