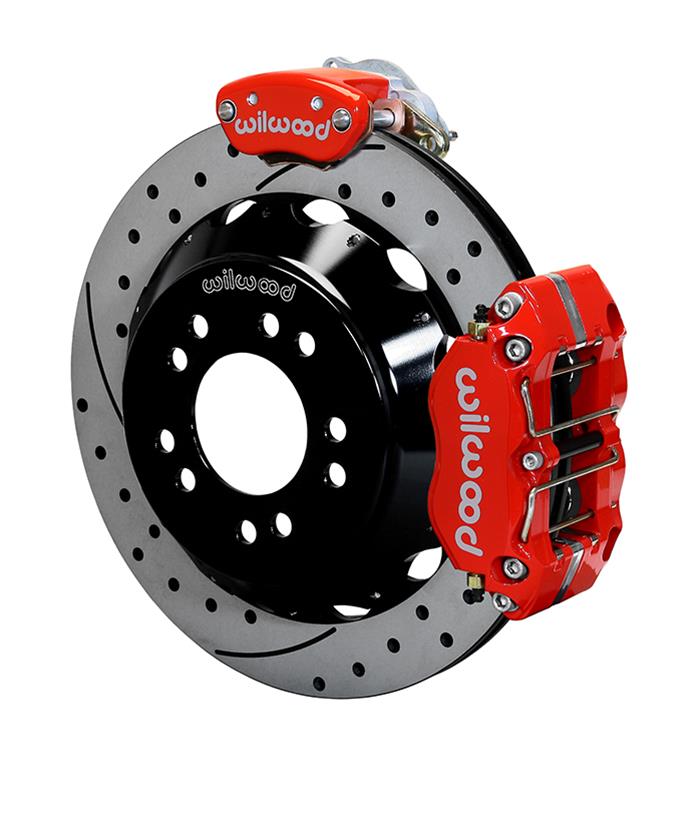

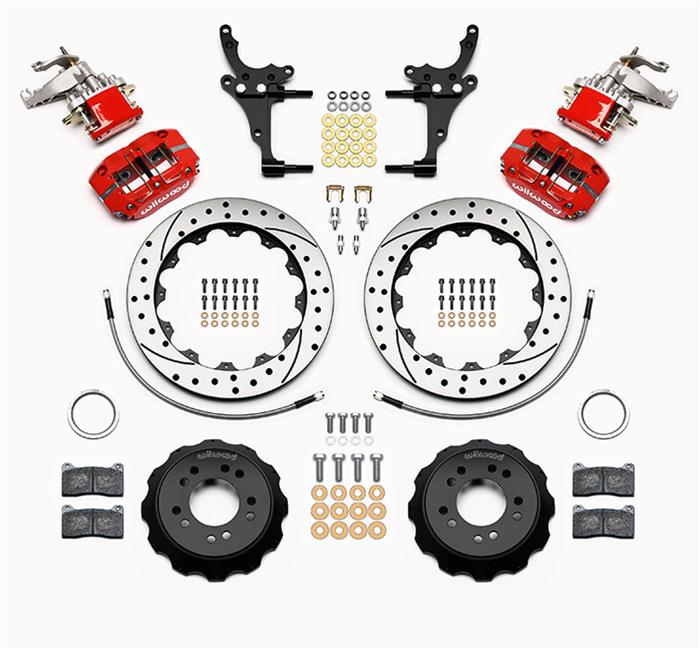

Wilwood Dynapro Radial-MC4 Rear Parking Brake Kits 140-14090-DR

Wilwood Dynapro Radial-MC4 rear parking brake kits offer the stopping power and great looks that match your late model, high performance vehicle. An ideal solution for applications that require a separate, mechanically actuated emergency brake caliper, they also complement front big brake upgrades. These kits provide high-capacity braking from the oversized rotors and other parts matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Relish the enhanced performance, increased durability, and high-tech style of a Wilwood Dynapro Radial-MC4 rear parking brake kits. Order the kit designed to best fit your application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14090-DR
Part Type: Disc Brake Kits
Product Line: Wilwood Dynapro Radial-MC4 Rear Parking Brake Kits
HP Direct Part Number: WIL-140-14090-DR
UPC: 889545073850
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Mechanical caliper
Minimum Recommended Wheel Diameter (in.): 17 in.
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.
Notes: Fits Factory Five Racing vehicles using 1994-2004 mustang spindles.
