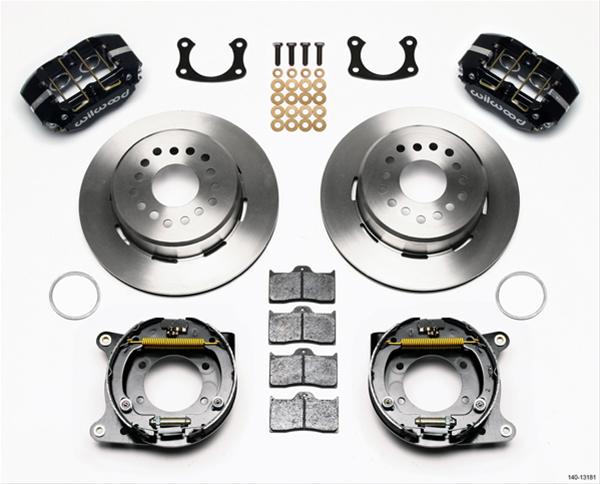

Wilwood DynaPro Lug-Mount Rear Parking Brake Kits 140-13181

If you're replacing the rear brake shoes for your parking brake and have a desire to have discs all around, Wilwood DynaPro Lug Mount rear parking brake kits have a complete solution for rear axles that require a parking brake. Included are forged billet piston calipers, one-piece drum/rotors, and high-friction pads, as well as all necessary hardware to provide improved braking for the custom machine you drive. These kits are designed to fit OE factory spindles, allow for a clear-cut install, and will provide exceptional holding power for the parking brake. Various caliper finishes and rotor designs allow you to choose the essential style and brake performance for your personal application.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-13181
Part Type: Disc Brake Kits
Product Line: Wilwood DynaPro Lug-Mount Rear Parking Brake Kits
HP Direct Part Number: WIL-140-13181
UPC: 889545019100
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Axle Housing Flange Style: Big Ford New Style/Torino (3.562 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 2.500 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Fits 5 x 4.50 in./5 x 4.75 in./5 x 5 in. bolt patterns.
