Description

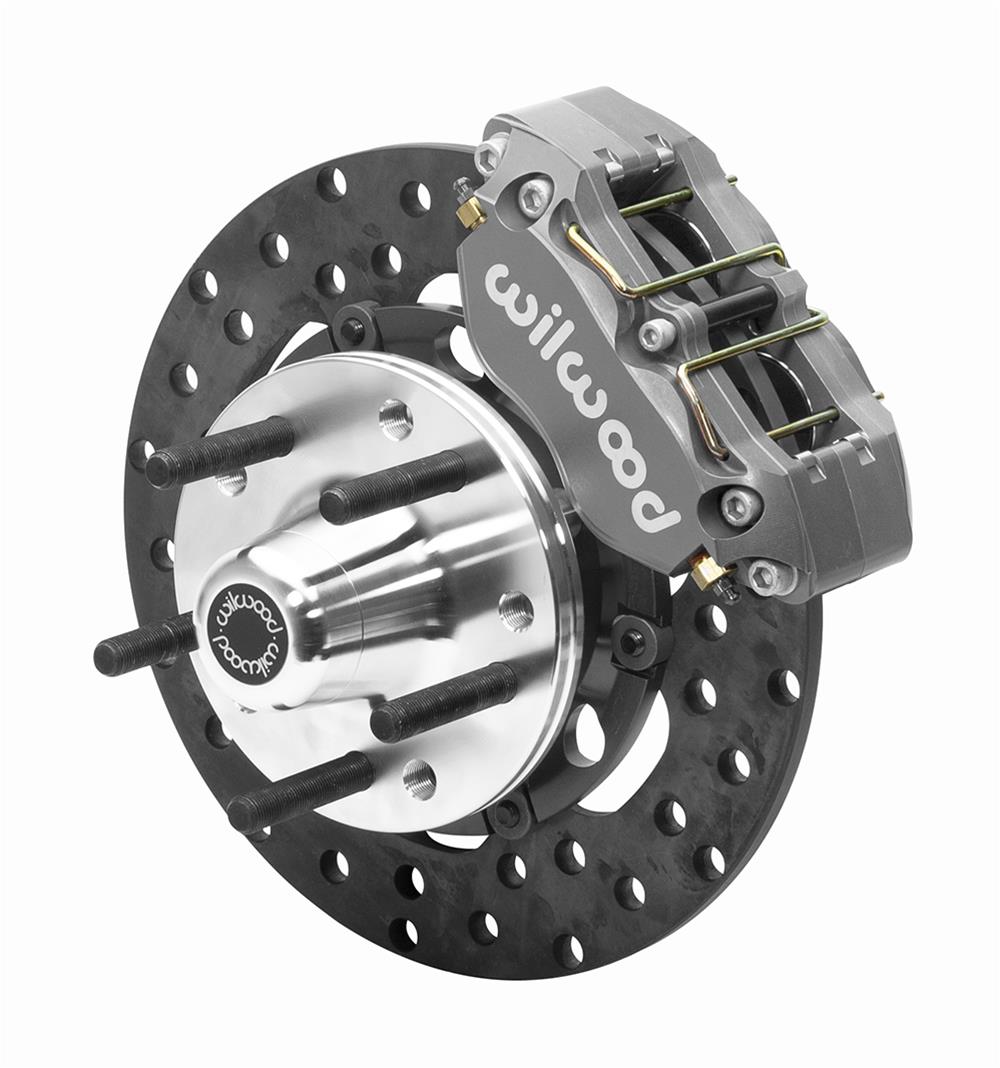

Wilwood DynaPro lug-mount front dynamic drag brake kits are sure to become very popular with drag racers. With forged aluminum and strong steel, these DynaPro kits still provide an average weight savings of over 30 lbs. compared to stock drum or disc brakes. DPL kits are available for the popular musclecar spindles and struts used on 4-wheel disc cars weighing up to 2,800 lbs., or rear drum brake-equipped cars weighing up to 2,400 lbs. Order the kit designed for your vehicle application.

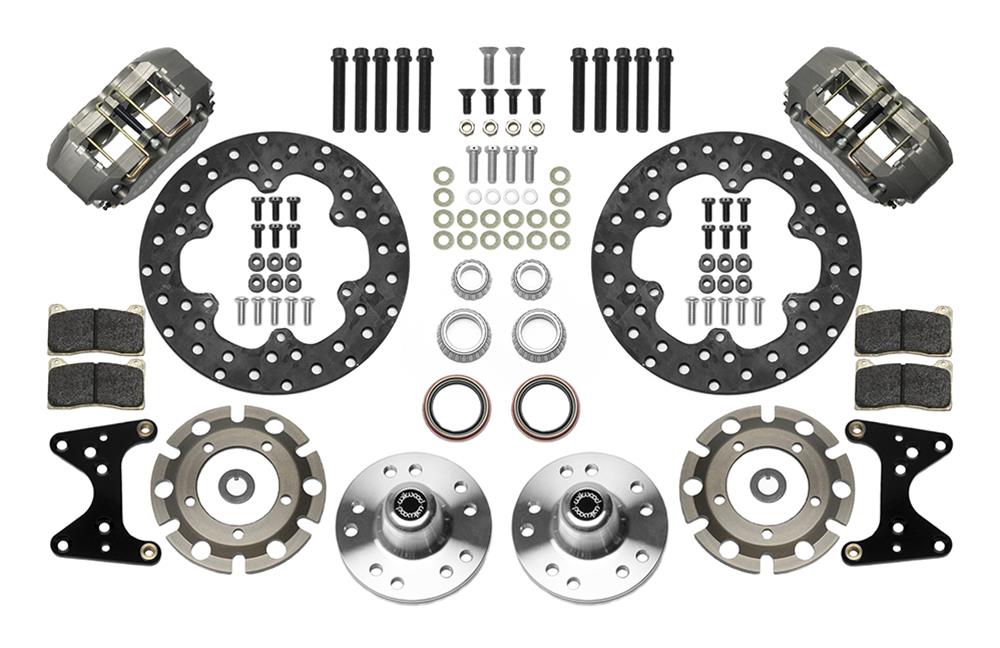

Wilwood front dynamic drag brake kits feature:
* Dynamic rotor mounting adapters with T-nuts promote less distortion due to temperature and extend rotor life
* Forged billet aluminum 4-piston nickel plated calipers with stainless steel pistons
* Calipers mount directly to the spindle with an aluminum bolt-on bracket
* Forged billet aluminum 5-lug hubs
* Drilled, black oxide coated steel rotors
* New hardware, wheel bearings, seals, and extra-length lug studs
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14416-D
Part Type: Disc Brake Kits
Product Line: Wilwood DynaPro Lug-Mount Front Dynamic Drag Brake Kits
HP Direct Part Number: WIL-140-14416-D
UPC: 889545093810
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled surface
Front Rotor Construction: Solid
Front Rotor Diameter: 10.75 in./273.05mm
Front Rotor Thickness (in.): 0.35 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Four
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Gray/Silver
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 0.410 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Uses factory disc or drum spindle.
Wilwood front dynamic drag brake kits feature:
* Dynamic rotor mounting adapters with T-nuts promote less distortion due to temperature and extend rotor life
* Forged billet aluminum 4-piston nickel plated calipers with stainless steel pistons
* Calipers mount directly to the spindle with an aluminum bolt-on bracket
* Forged billet aluminum 5-lug hubs
* Drilled, black oxide coated steel rotors
* New hardware, wheel bearings, seals, and extra-length lug studs
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14416-D
Part Type: Disc Brake Kits
Product Line: Wilwood DynaPro Lug-Mount Front Dynamic Drag Brake Kits
HP Direct Part Number: WIL-140-14416-D
UPC: 889545093810
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled surface
Front Rotor Construction: Solid
Front Rotor Diameter: 10.75 in./273.05mm
Front Rotor Thickness (in.): 0.35 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Four
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Gray/Silver
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 0.410 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Uses factory disc or drum spindle.
