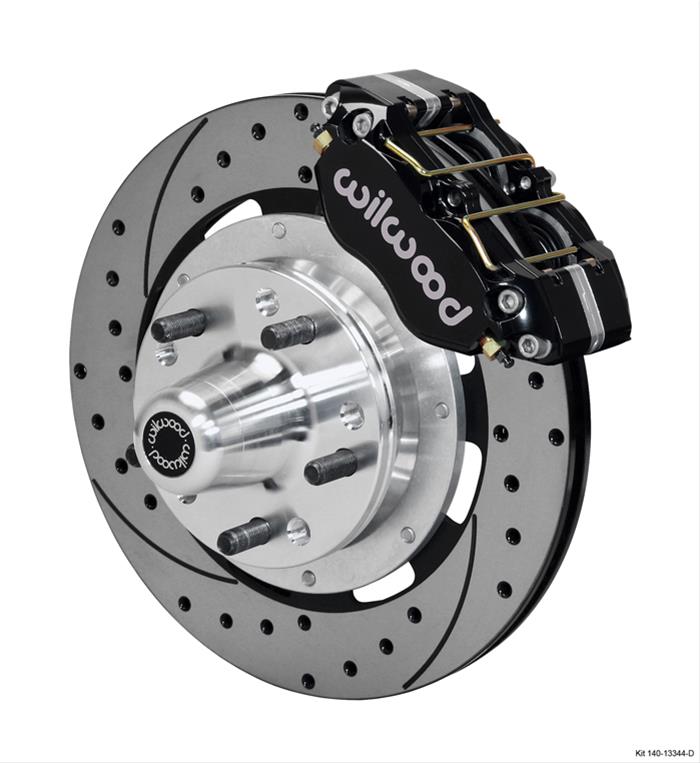

Wilwood DynaPro Dust-Boot Big Brake Front Brake Kits 140-13344-D

Wilwood DynaPro Big Brake front brake kits provide the edge of larger diameter brake rotors for conventional non-ABS spindles on machines with big brake stopping power. These kits were developed for locations or applications where dust-booted pistons are appropriate, to provide added protection against track and road-born debris in low temperature ranges or harsh environments. A full range of options for caliper finish and rotor design allows you to individualize style and performance requirements … from the mildest to the wildest.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-13344-D
Part Type: Disc Brake Kits
Product Line: Wilwood DynaPro Dust-Boot Big Brake Front Brake Kits
HP Direct Part Number: WIL-140-13344-D
UPC: 889545020090
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled/Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 12.19 in./309.63mm
Front Rotor Thickness (in.): 0.81 in.
Brake Rotor Bolt Pattern (in.): Dual 5 x 4.50 in./5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): Dual 5 x 114.30mm/5 x 120.65mm
Rear Rotor Included: No
Rear Rotor Style: Cross-drilled/Slotted surface
Front Caliper Included: Yes
Front Caliper Piston Quantity: Four
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No

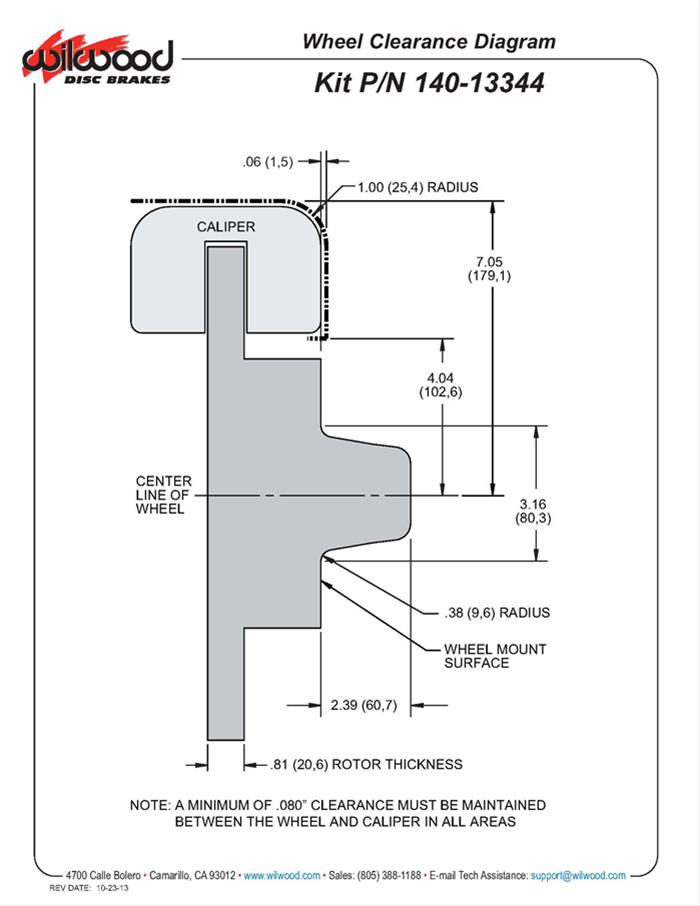

Minimum Recommended Wheel Diameter (in.): 15 in.
Offset (in.): 0.090 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.

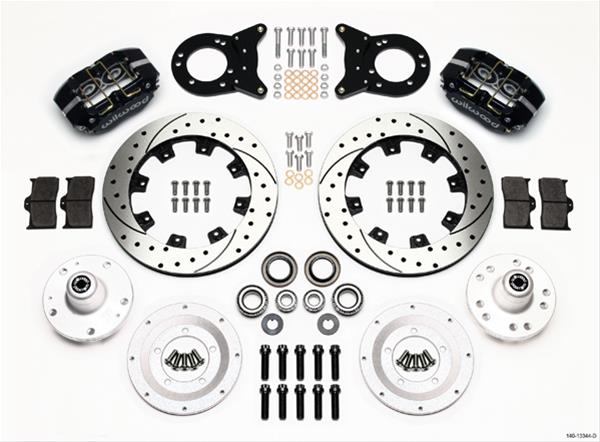

Notes: Includes 1/2 in.-20 wheel studs. Kit includes hubs, brake pads, and mounting hardware. Bolt circles for hubs are 5 x 4.50 and 5 x 4.75 in.
