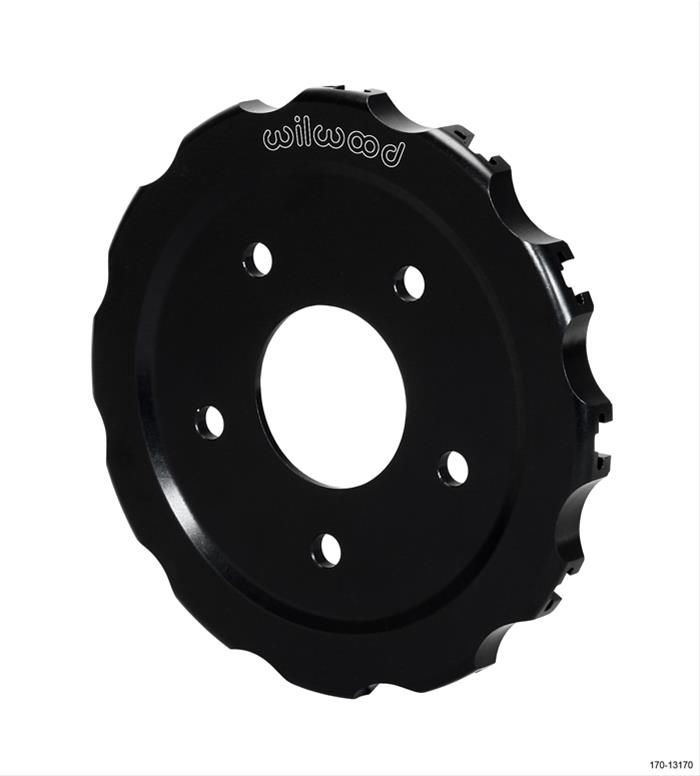

Wilwood Dynamic Bobbin Mount Hats 170-13170

Wilwood dynamic bobbin mount hats eliminate the problems associated with thermal distortion. They incorporate a rotor mounting system that allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points so the rotors stay flatter and run truer. Also, the brake response and pedal feel remain consistent, and pad knock back, and rotor drag are eliminated. With Wilwood dynamic bobbin mounts, parking brake hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 170-13170
Part Type: Brake Rotor Hats
Product Line: Wilwood Dynamic Bobbin Mount Hats
HP Direct Part Number: WIL-170-13170
UPC: 889545042153
Brake Rotor Hat Type: Bobbin
Brake Rotor Hat Material: Aluminum
Brake Rotor Hat Color: Black
Brake Rotor Hat Bolt Circle: 12 x 8.75 in.
Brake Rotor Hat Offset (in.): 0.29
Brake Rotor Hat Stud Hole Diameter (in.): 0.52
Brake Rotor Hat Center Hole I.D. (in.): 2.78
Brake Rotor Hat Face Thickness (in.): 0.30
Brake Rotor Hat Clearance I.D. (in.): 6.90
Quantity: Sold individually.
