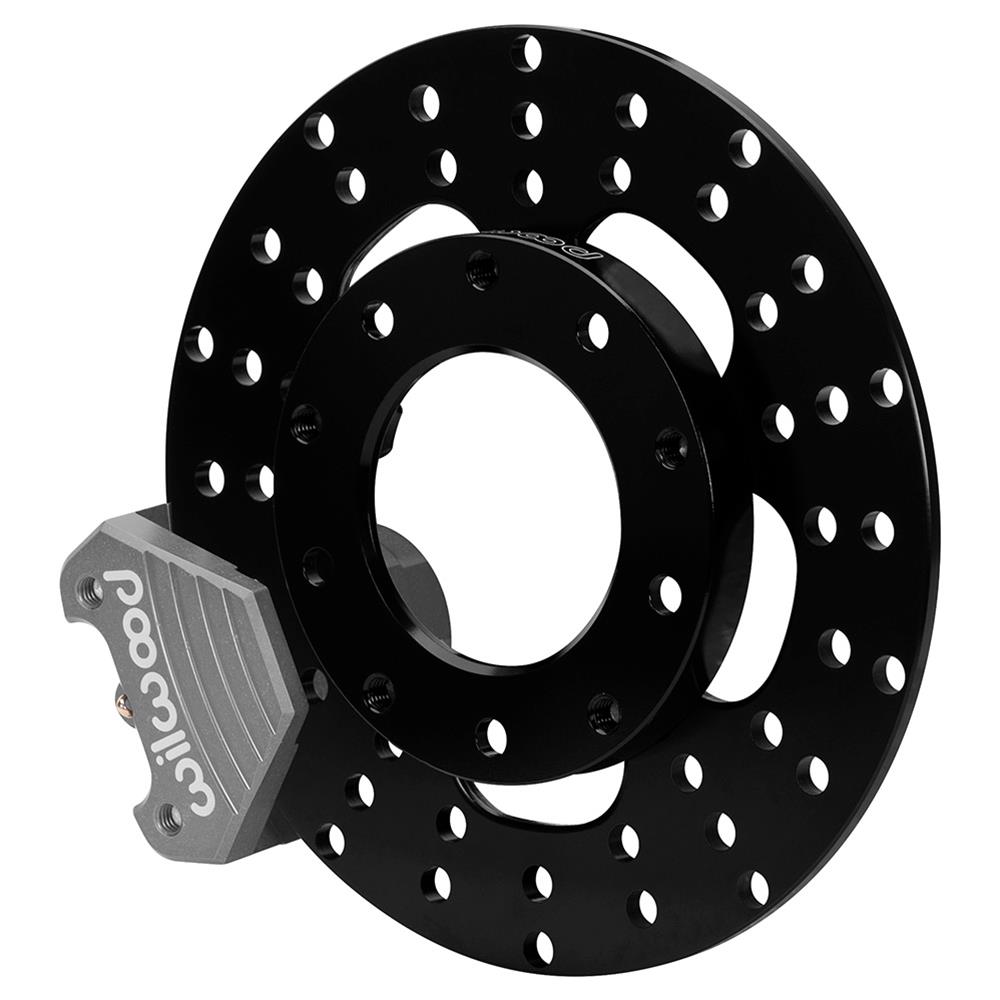

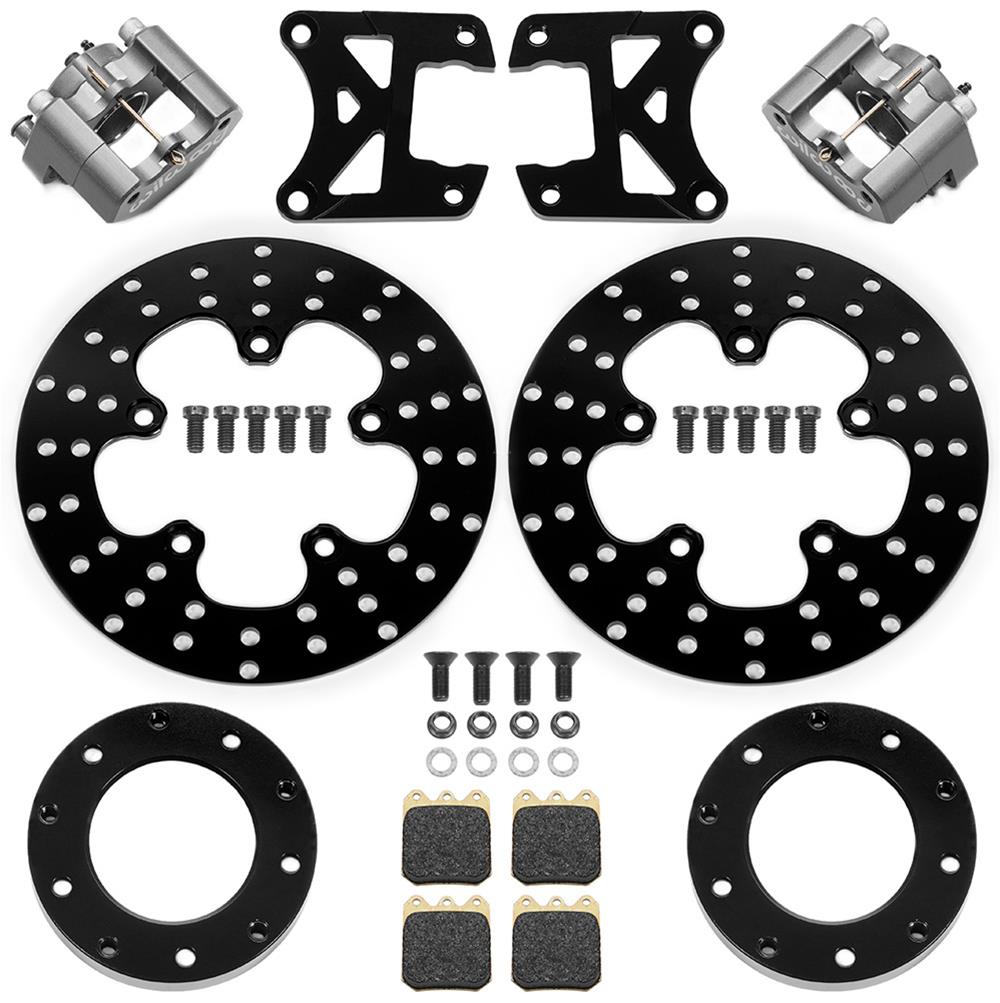

Wilwood Dynalite Single Floater Front Drag Brake Kits 140-16559-D

Purpose-built by Wilwood for your P&S/Anglia spindle mounts--Dynalite Single Floater front drag kits. These calipers and lightweight steel rotors of these Dynalite drag kits combine to provide excellent static holding power for use as a staging brake or as a supplementary brake on vehicles using parachutes and rear brakes to provide the majority of the stopping power. Wilwood provides aluminum hats to mount the rotors directly to your spindle mount wheels and they offer a choice of solid or lightweight drilled rotors to provide the lowest possible weight to your front axles. Get stopping power built specifically for your application--Wilwood Dynalite Single Floater front drag kits.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-16559-D
Part Type: Disc Brake Kits
Product Line: Wilwood Dynalite Single Floater Front Drag Brake Kits
HP Direct Part Number: WIL-140-16559-D
UPC: 889545100877
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Cross-drilled surface
Front Rotor Construction: Solid
Front Rotor Diameter: 10.00 in./254.00mm
Front Rotor Thickness (in.): 0.25 in.
Brake Rotor Bolt Pattern (in.): 5 x 4.75 in.
Brake Rotor Bolt Pattern (mm): 5 x 120.65mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: One
Front Caliper Material: Aluminum
Front Caliper Color: Gray/Silver
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: No
Offset (in.): 0.900 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: For use on Santhuff Spindle with spindle mount wheels.
