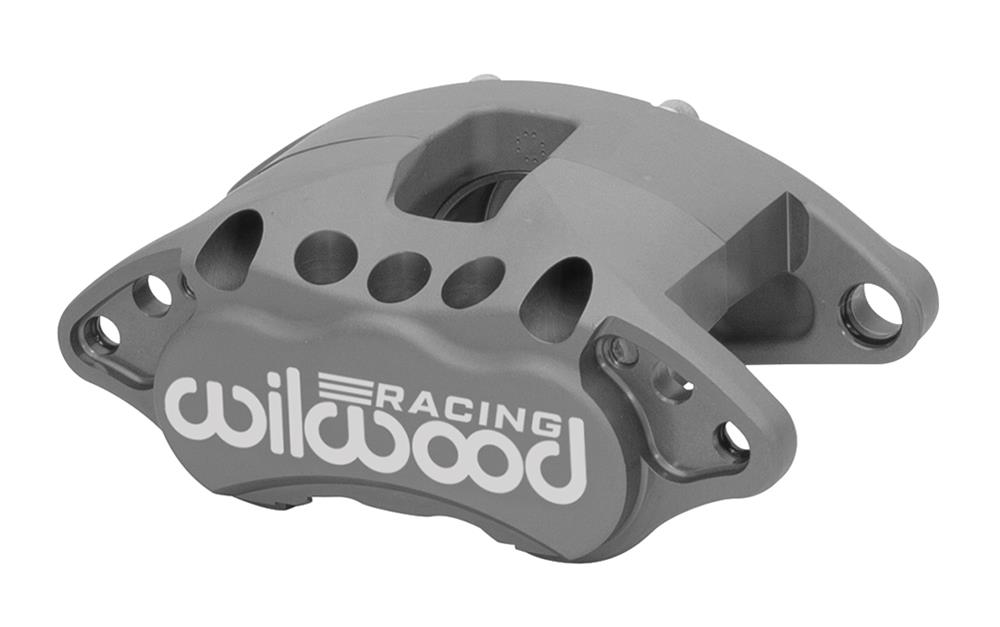

Wilwood D52-R Single Piston Floater Calipers 120-15610

Wilwood's D52-R single piston floater calipers feature a lightweight 4.3 lb. forged aluminum Type III hard-anodized body with a stainless steel piston. They're offered in a variety of options, including piston diameters of 2.38 or 2.75 in.; rotor widths of 0.81, 1.04, or 1.28 in.; and rotor diameters of up to 12.50 in. The caliper fluid inlet port is centered directly behind the piston, and this eliminates any interference with slide pins.

These heavy-duty brake calipers feature a lower deflection rate and higher volumetric efficiency, which makes them superior to heavier cast models. They use standard D52 pads available in a range of compounds for every application. The Wilwood D-52R calipers also use the original GM stock height and offset mounting, so there's no need to make expensive modifications. This is the pinnacle design for OEM replacement racing calipers. Order the size needed for your application.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-15610
Part Type: Brake Calipers
Product Line: Wilwood D52-R Single Piston Floater Calipers
HP Direct Part Number: WIL-120-15610
UPC: 889545090086
Caliper Series: D52 Single Piston
Caliper Piston Quantity: One
Piston Diameter (in.): 2.750
Rotor Thickness (in.): 0.810 in.
Caliper Material: Aluminum
Caliper Color: Clearcoat
Caliper Logo: Wilwood Racing
Parking Brake Provision: No
Fittings Included: No
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
