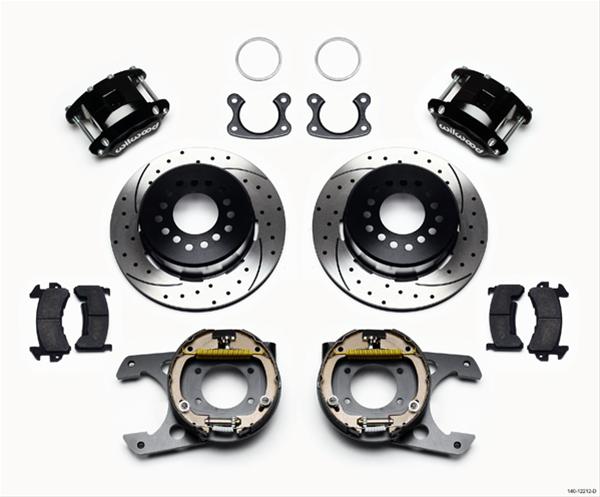

Wilwood D154 Rear Parking Brake Kits 140-12212-D

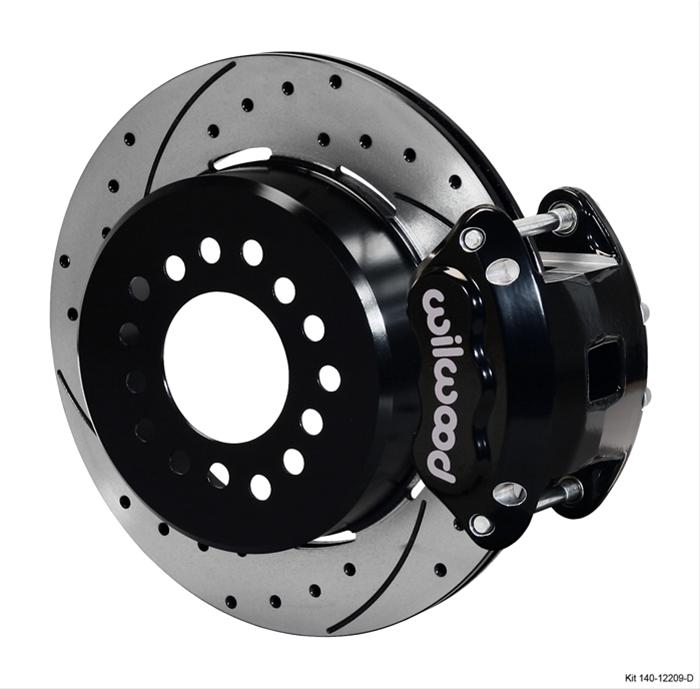

Wilwood D154 rear parking brake kits provide high performance stopping power for musclecars with rear axles that require a parking brake! Featuring forged D154 dual-piston calipers, 12.19 in. one-piece drum and rotors, and high-friction pads, these kits nicely complement your D52 or D154 calipers on OE spindles. Their neatly hidden internal shoe system allows for a clean installation and superior static holding power for parking. Optional caliper finishes and rotor designs let you customize the look and performance of your brakes. Wilwood D154 rear parking brake kits offer balanced, optimized braking for all types of custom performance street/strip and show machines!Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-12212-D
Part Type: Disc Brake Kits
Product Line: Wilwood D154 Rear Parking Brake Kits
HP Direct Part Number: WIL-140-12212-D
UPC: 889545015447
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Axle Housing Flange Style: Small Ford (3.336 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Cross-drilled/Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.19 in./309.63mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Two
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 16 in.
Offset (in.): 2.500 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: Included rotors are coated in Black Electro Coat.
