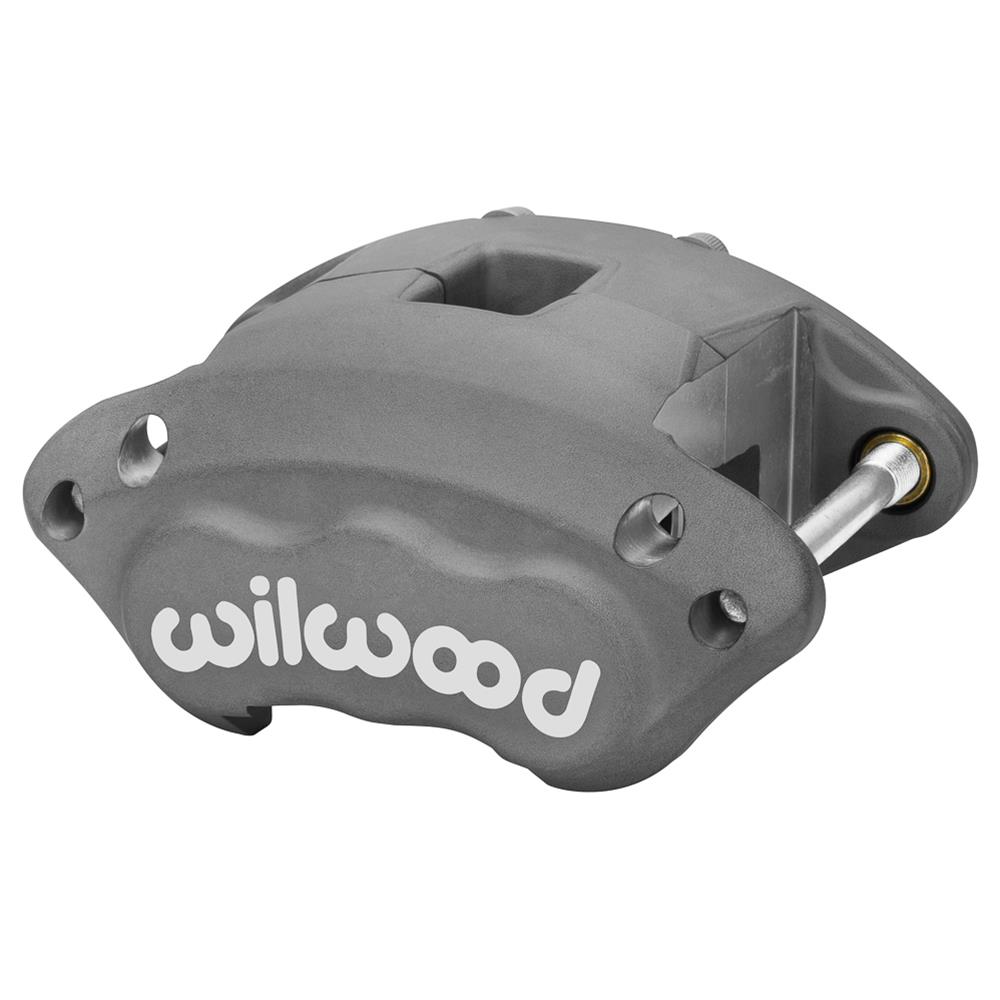

Wilwood D154-DS Single Piston Floater Calipers 120-15796

Wilwood D154-DS (dust seal) single piston floater calipers are direct bolt-on, lightweight, high-strength, extreme-duty alternatives to the OE cast iron calipers that were used on a wide range of factory, disc brake-equipped mid-size GM cars and small trucks beginning in 1978. Use of this caliper can still be found on some GM models as late as the year 2002.

D154-DS calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing. The widespread and affordable availability of D154-DS calipers and brake pad compounds also made it a popular choice in several restricted class competition categories and drum-to-disc conversions on all types of hot rods and street machines. They are available in several finishes to complement your application.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-15796
Part Type: Brake Calipers
Product Line: Wilwood D154-DS Single Piston Floater Calipers
HP Direct Part Number: WIL-120-15796
UPC: 889545100211
Caliper Series: D154-Dust Seal Single Piston Floater
Caliper Piston Quantity: One
Piston Diameter (in.): 2.500
Rotor Thickness (in.): 1.040 in.
Caliper Material: Aluminum
Caliper Color: Clearcoat
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: M10 x 1.5
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
