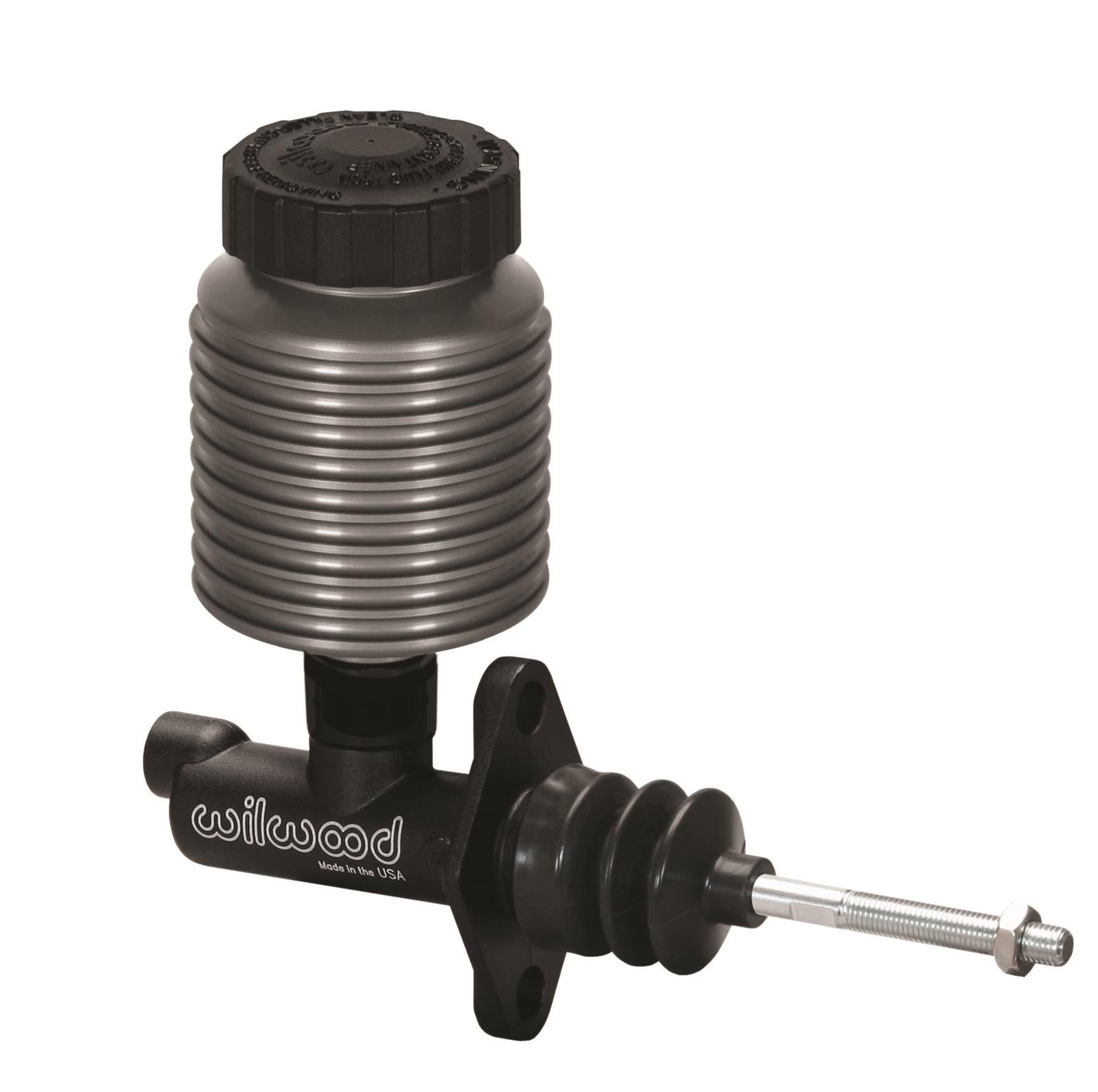

Wilwood Compact Remote Reservoir Master Cylinders 261-17277-.81

Wilwood remote reservoir compact master cylinders are the perfect solution where there is limited space for the master cylinder and fluid reservoir. This popular, lightweight, compact design is used for clutch and small master cylinder requirements and is well known for their dependability. They feature a 7/16 in.-20 fitting to connect to a remote reservoir. Available in several bore sizes with a full 1.4 in. of stroke to accommodate short pedal ratios, and hydraulic clutch actuation on space limited applications.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 261-17277-.81
Part Type: Master Cylinders
Product Line: Wilwood Compact Remote Reservoir Master Cylinders
HP Direct Part Number: WIL-261-17277-81
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.813 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 1/8 in. NPT
Master Cylinder Material: Aluminum
Master Cylinder Finish: Black
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.120 in.
Remote Reservoir: Yes
Reservoir Included: Yes
Reservoir Material: Aluminum
Reservoir Color: Gray
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: Yes
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
