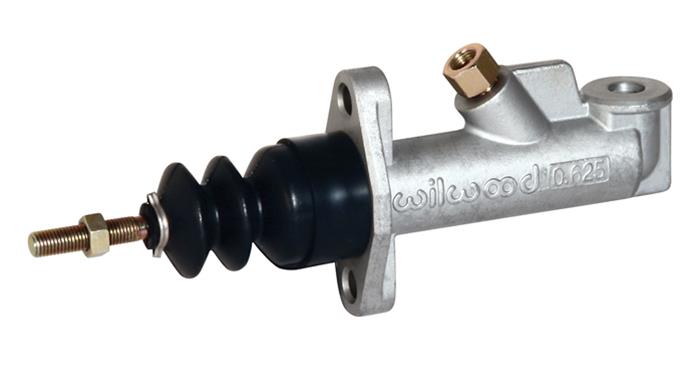

Wilwood Compact Remote Reservoir Master Cylinders 260-6087

Wilwood remote reservoir compact master cylinders are the perfect solution where there is limited space for the master cylinder and fluid reservoir. This popular, lightweight, compact design is used for clutch and small master cylinder requirements and is well known for their dependability. They feature a 7/16 in.-20 fitting to connect to a remote reservoir. Available in several bore sizes with a full 1.4 in. of stroke to accommodate short pedal ratios, and hydraulic clutch actuation on space limited applications.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-6087
Part Type: Master Cylinders
Product Line: Wilwood Compact Remote Reservoir Master Cylinders
HP Direct Part Number: WIL-260-6087
UPC: 889545067811
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.625 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 3/8 in.-24
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.400 in.
Remote Reservoir: Yes
Reservoir Included: No
Master Cylinder Cap Included: No
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.
