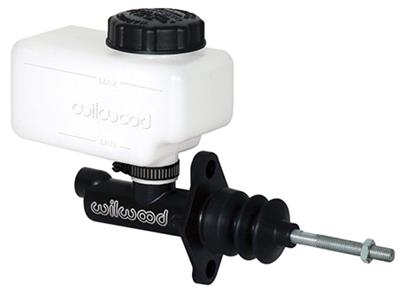

Wilwood Compact Remote Flange Mount Master Cylinders 260-14784

Wilwood compact remote flange-mount master cylinders are precision-machined from high-strength aluminum. They're designed for limited space applications requiring the output capacity of a full-size master cylinder. These units can be mounted virtually anywhere for convenient service access. A standard mounting flange provides easy installation in any vehicle.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-14784
Part Type: Master Cylinders
Product Line: Wilwood Compact Remote Flange Mount Master Cylinders
HP Direct Part Number: WIL-260-14784
UPC: 889545082807
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.938 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 1/8 in. NPT
Master Cylinder Material: Aluminum
Master Cylinder Finish: Black
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.120 in.
Remote Reservoir: Yes
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Color: White
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.

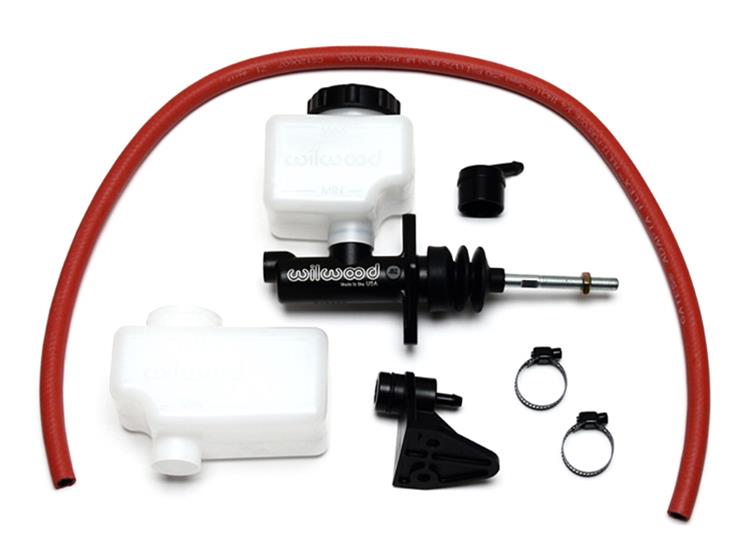

Notes: Includes master cylinder mounted reservoir and remote reservoir.
