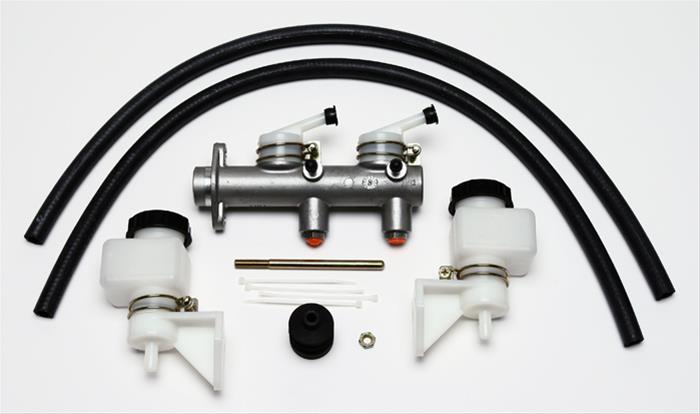

Wilwood Combination Remote Tandem Master Cylinders 260-7563

Wilwood combination remote tandem master cylinders provide one of the safest ways to actuate 4-wheel or dual-caliper axle brake systems. These versatile, lightweight, and easily adapted master cylinders provide single-pushrod activation of two separate brake fluid circuits. By completely isolating the fluid reservoirs and circuits, the front and rear brakes are able to operate independently of each other and provide a safety net, should any one side of the system become inoperable. They're a great match for Wilwood's bolt-on disc brake kits, systems configured from OE components, and a variety of industrial applications.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-7563
Part Type: Master Cylinders
Product Line: Wilwood Combination Remote Tandem Master Cylinders
HP Direct Part Number: WIL-260-7563
UPC: 889545067910
Master Cylinder Usage: Brake
Master Cylinder Bore Size: 1.000 in.
Power Brake Compatible: No
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Dual
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: Yes
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Color: Natural
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: Yes
Hardware Included: No
Remanufactured: No
Quantity: Sold as a kit.
Notes: Pushrod is 3.380 in. long with 5/16-24 threads.
