Wilwood Combination Remote Master Cylinders 260-5920

Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-5920
Part Type: Master Cylinders
Product Line: Wilwood Combination Remote Master Cylinders
Automotive Fittings Part Number: WIL-260-5920
UPC: 889545067798
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 0.813 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 3/8 in.-24
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: Yes
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Color: Natural
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: Yes
Remanufactured: No
Quantity: Sold individually.

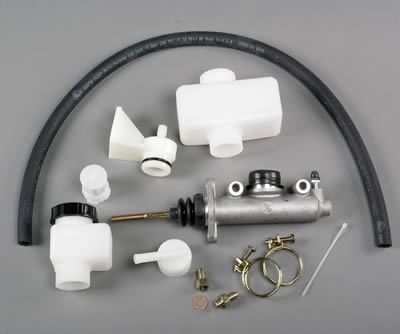

Notes: Includes master cylinder mounted reservoir and remote reservoir.
Description:
Wilwood combination remote master cylinders are precision-machined from high-strength aluminum. They include both small and large size reservoirs that can be mounted directly onto the master cylinder, or remotely mounted for more convenient service access. Six different bore sizes are available and a standard mounting flange provides easy installation in any vehicle.
