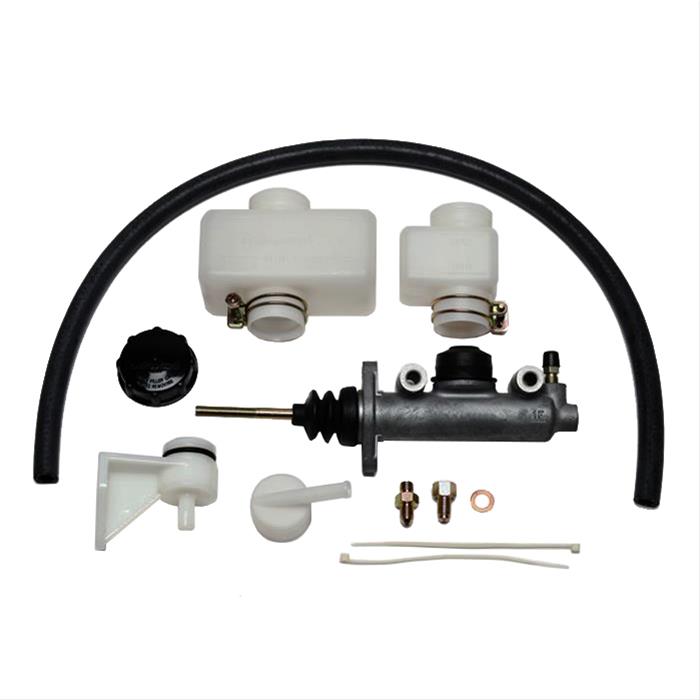

Wilwood Combination Remote Master Cylinders 260-3378

Wilwood combination remote master cylinders are precision-machined from high-strength aluminum. They include both small and large size reservoirs that can be mounted directly onto the master cylinder, or remotely mounted for more convenient service access. Six different bore sizes are available and a standard mounting flange provides easy installation in any vehicle.


Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-3378
Part Type: Master Cylinders
Product Line: Wilwood Combination Remote Master Cylinders
HP Direct Part Number: WIL-260-3378
UPC: 889545067514
Master Cylinder Usage: Brake/Clutch
Master Cylinder Bore Size: 1.000 in.
Power Brake Compatible: No
Outlet Quantity: 1
Outlet Size 1: 3/8 in.-24
Master Cylinder Material: Aluminum
Master Cylinder Finish: Natural
Bowl Design: Single
Mounting Hole Quantity: 2 holes
Mounting Flange Center to Center Distance (in.): 2.250
Master Cylinder Stroke: 1.000 in.
Remote Reservoir: Yes
Reservoir Included: Yes
Reservoir Material: Plastic
Reservoir Color: Natural
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Includes master cylinder mounted reservoir and remote reservoir.
