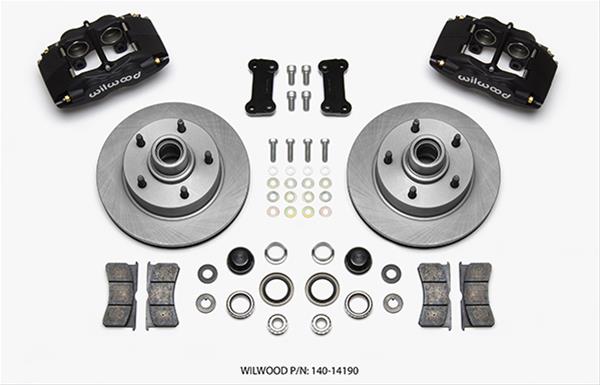

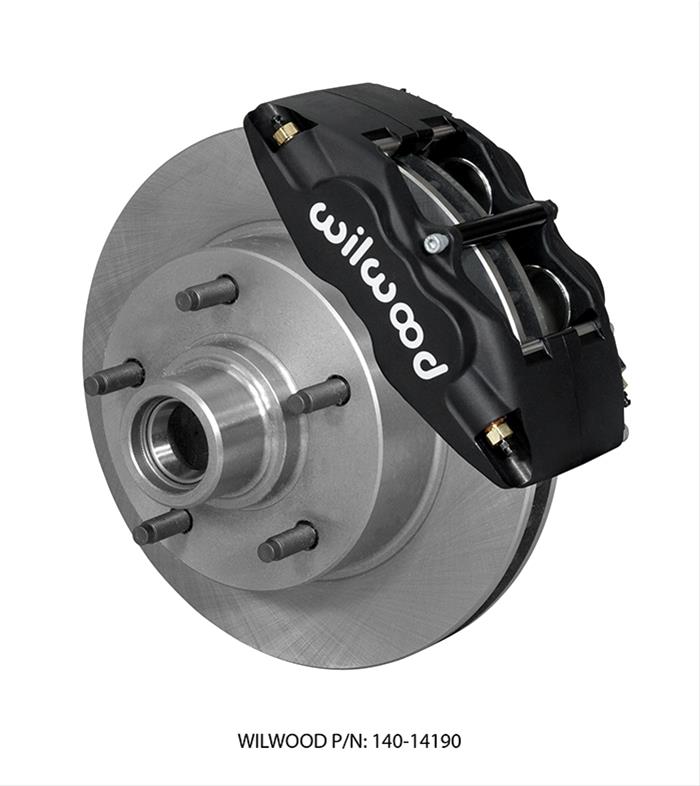

Wilwood Classic Series Forged Superlite 4 Front Brake Kits 140-14190

Wilwood Classic Series Forged Superlite 4 front brake kits are designed as a disc brake upgrade solution for OEM drum spindles on 1948-56 Ford trucks or vehicles with similar setups. Based on the esteemed Forged billet Superlite caliper, these kits are perfect for daily driving or the most selective show aficionado. Intended vehicle applications require no alterations and provide generous clearance inside popular 15 in. wheels. The brake kits can be used with either manual or power boost master cylinders--and include everything necessary for a complete install. Give your retro ride all the practical advantages of modern braking technology with a Wilwood Classic Series Forged Superlite front brake kit.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-14190
Part Type: Disc Brake Kits
Product Line: Wilwood Classic Series Forged Superlite 4 Front Brake Kits
HP Direct Part Number: WIL-140-14190
UPC: 889545077254
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Solid surface
Front Rotor Construction: Vented
Front Rotor Diameter: 11.72 in./297.69mm
Front Rotor Thickness (in.): 1.19 in.
Brake Rotor Bolt Pattern (in.): 5 x 5.50 in.
Brake Rotor Bolt Pattern (mm): 5 x 139.70mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Four
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Gray/Silver
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-10
Parking Brake Provision: No
Minimum Recommended Wheel Diameter (in.): 15 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: For use with OEM drum spindles. This brake kit has a -0.06 hub offset.
