Wilwood Brake Proportioning Valves 260-15667

Wilwood brake proportioning valves are adjustable between 100 and 3,000 psi (depending on model) with a twist of a knob or the flip of a lever, and most can reduce pressure up to 57 percent. They let you adjust brake bias quickly and easily to compensate for changing track conditions, or for big and little tire combinations.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-15667
Part Type: Brake Proportioning Valves and Distribution Blocks
Product Line: Wilwood Brake Proportioning Valves
HP Direct Part Number: WIL-260-15667
UPC: 889545090949
Adjustment Style: Knob
Inlet Quantity: 2
Inlet Attachment: Female threads
Brake Line Inlet Size: 3/8 in.-24 inverted flare
Outlet Quantity: 2
Outlet Attachment: Female threads
Brake Line Outlet Size: 3/8 in.-24 inverted flare
Connector For Warning Light: Yes
Minimum Pressure (psi): 100 psi
Maximum Pressure (psi): 1,000 psi
Pressure Reduction (%): 57 percent
Proportioning Valve Finish: Black E-coat
Proportioning Valve Material: Aluminum
Remanufactured: No
Quantity: Sold as a kit.

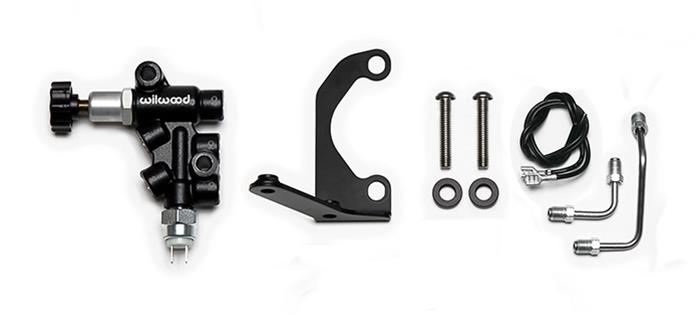

Notes: Kit includes mounting bracket for right hand side, two pre-formed brake lines from the master cylinder to the proportioning valve and mounting hardware. Designed to be used with master cylinders 260-14957 thru 260-14960 and 260-15520 thru 260-15541.
