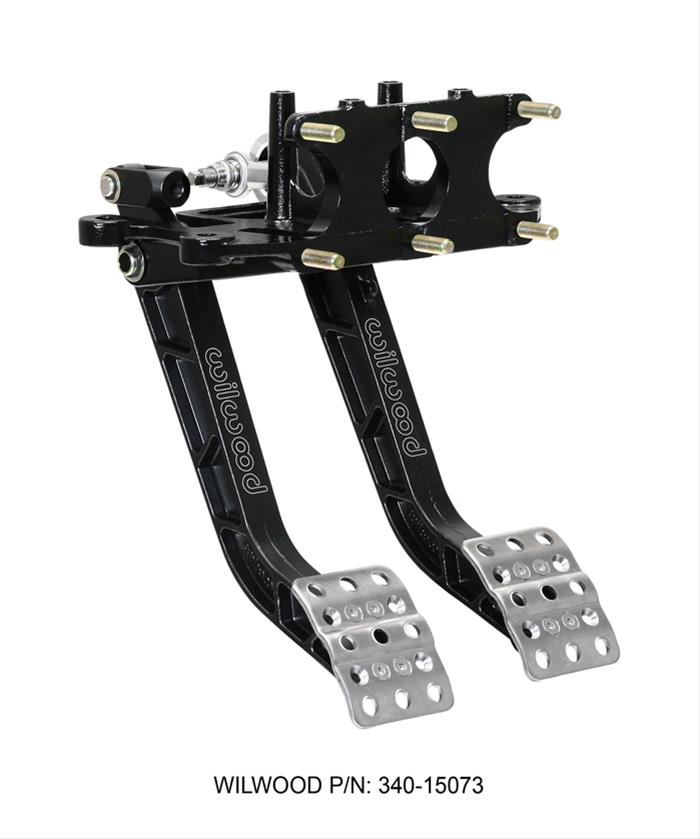

Wilwood Brake/Clutch Pedal Assemblies 340-15073

Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood's aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation.

Select versions include Wilwood's Tru-Bar pedals that utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide the ultimate in precision, control, and adjustment of brake bias on race-prepped vehicles.

All Wilwood pedal assemblies feature comfortable ergonomics with non-slip footpads and a protective coating. They're available in a variety of sizes and styles.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 340-15073
Part Type: Pedal Assemblies
Product Line: Wilwood Brake/Clutch Pedal Assemblies
HP Direct Part Number: WIL-340-15073
UPC: 889545074109
Pedal Type: Brake/Clutch
Pedal Mounting Location: Reverse mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Natural
Pedal Color: Black
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: 5.1:1
Balance Bar Included: Yes
Master Cylinder Style: Dual
Quantity: Sold as a kit.
Notes: Reverse swing mount Tru-Bar pedal assembly.
