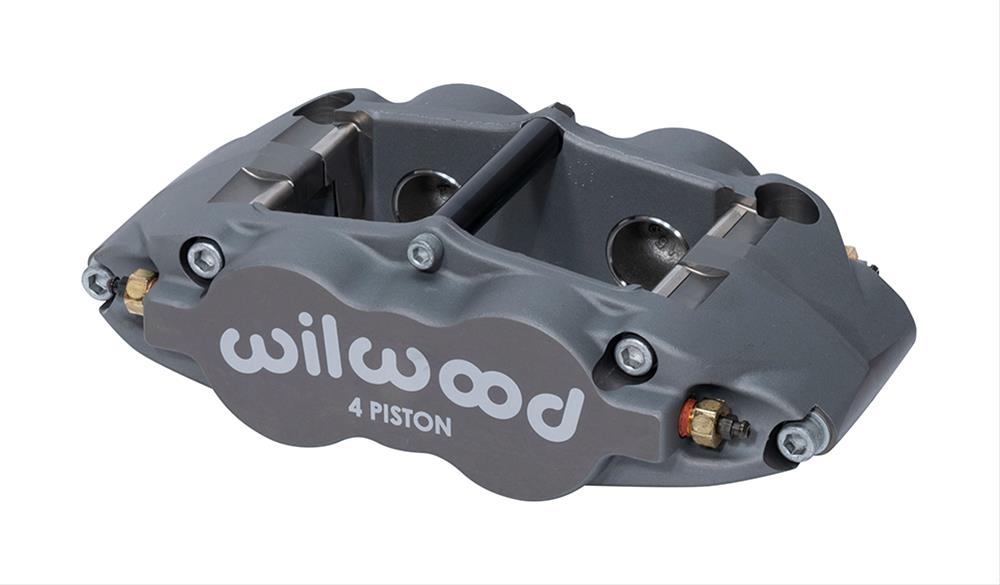

Wilwood Billet Superlite 4 Calipers 120-13232

These Wilwood Billet Superlite 4 calipers feature FEA modeling and stress analysis technology. They also feature a reinforced radial transition between the piston housing body and the solid bridge. That is combined with a full body-length reinforcement rib to give them the highest resistance to deflection and separation under load. Four high-strength steel bridge bolts and a fifth center bridge bolt further add to their superior clamping efficiency, while providing easy access to the brake pads. Superlite 4 calipers are available with stainless steel or Thermolock pistons and equipped with Wilwood's SRS stainless steel bridge plates. The SRS plates eliminate the bridge wear caused by pad gouging and extend the service life of the caliper body. The spring-loaded action of the SRS plates also eliminates pad rattle and dampens the vibration harmonics that contribute to squeal under braking.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-13232
Part Type: Brake Calipers
Product Line: Wilwood Billet Superlite 4 Calipers
HP Direct Part Number: WIL-120-13232
UPC: 889545003055
Caliper Series: Billet Superlite 4
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.250
Rotor Thickness (in.): 1.250 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
