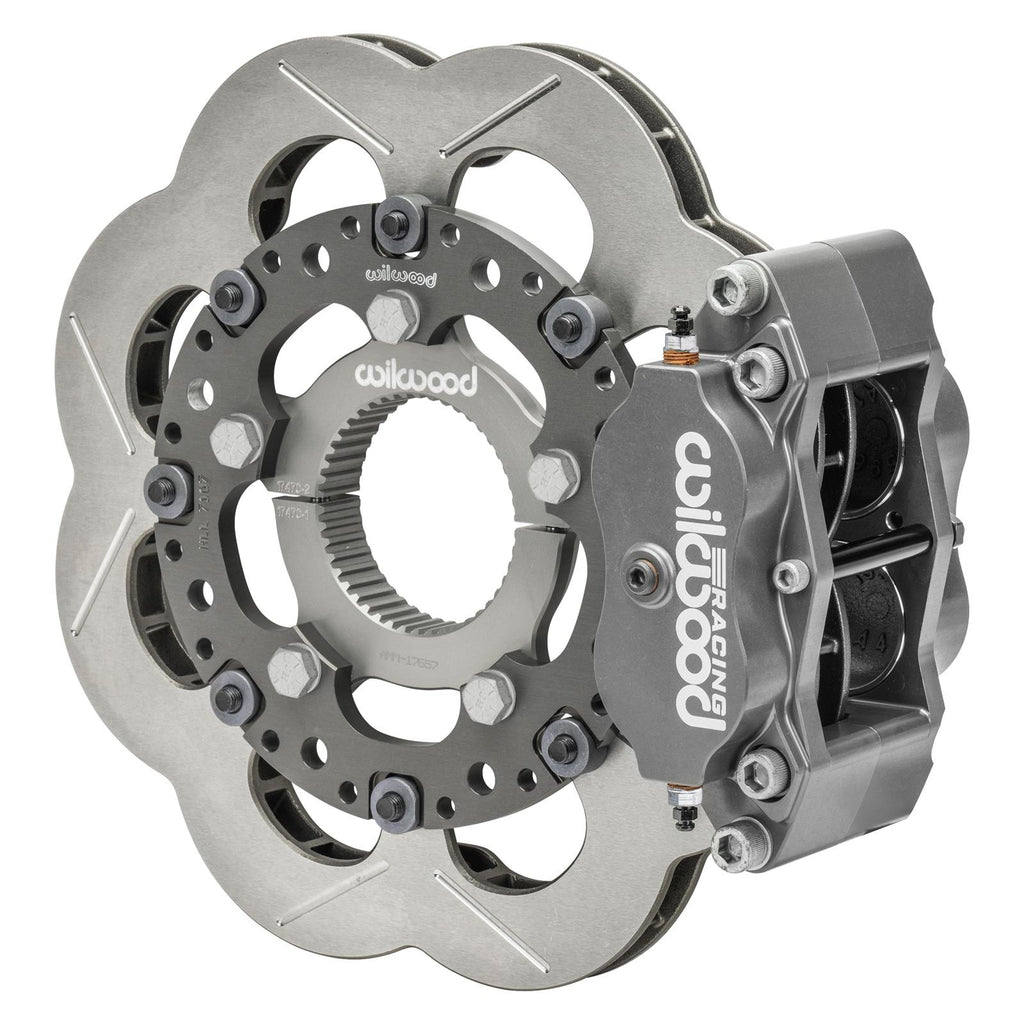

Wilwood Billet Narrow Dynalite Radial Mount Inboard Brake Kits 140-15345

Wilwood Billet Narrow Dynalite radial-mount inboard brake kits feature a fully engineered bolt-on brake system for sprint car quick-change rears with 3.00 in. x 46 splined axles. Available in several choices, the kits will have titanium, Super Alloy, or steel .810 vented or solid discs and a newly designed dynamic mount rotor axle clamp, providing the lowest rotating weights available for Sprint racing.

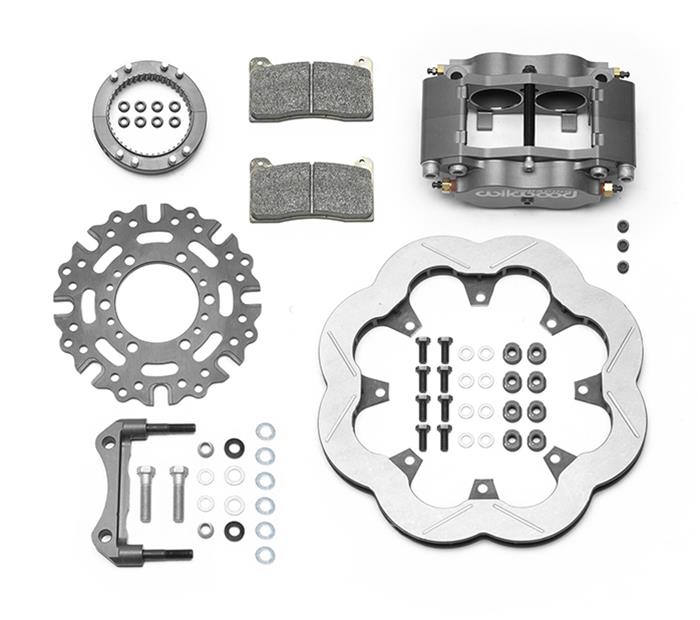

The lightweight advantages of Wilwood Sprint rotors are fortified with the high durability, long wear, and superior heat control properties of the advanced materials used. The billet Dynalite radial mount 4-piston calipers are Type III Anodized and will be fitted with composition metallic or BP-40 pads to produce superior stopping power and a consistent fade-free response. Kits will also include an axle clamp with a dual mount rotor adapter with T-nuts, radial mount bracket assembly, and mounting hardware. Choose the preferred kit for your braking needs.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-15345
Part Type: Disc Brake Kits
Product Line: Wilwood Billet Narrow Dynalite Radial Mount Inboard Brake Kits
HP Direct Part Number: WIL-140-15345
UPC: 889545086492
Position: Rear
Front Rotor Included: No
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 11.75 in./298.45mm
Rear Rotor Thickness (in.): 0.81
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Gray/Silver
Brake Pads Included: Yes
Friction Material Name: BP-30
Parking Brake Provision: No
Offset (in.): 0.000 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Notes: For use on sprint axles with 48 splines.
