Description

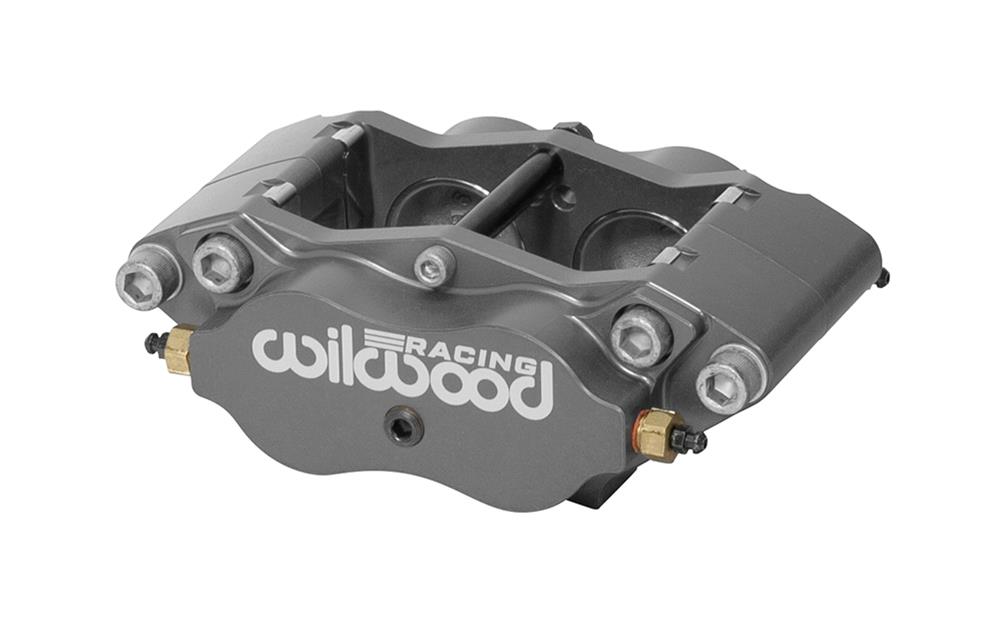

Compact and lightweight, Wilwood billet narrow Dynalite radial mount calipers are available with a spacerless design. They have a single split bridge area to maximize rigidity and strength. These NDLR calipers can be directly mounted over studs, or used with a radial mount bracket kit in place of a tab mount caliper. Weighing less than 3 lbs., they're probably the lightest and most important piece of equipment you can have on your vehicle.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-15565-SI
Part Type: Brake Calipers
Product Line: Wilwood Billet Narrow Dynalite Radial Mount Calipers
HP Direct Part Number: WIL-120-15565-SI
UPC: 889545088953
Caliper Series: Dynalite Radial Mount
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.620
Rotor Thickness (in.): 0.810 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood Racing
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Minimum rotor diameter: 11.75 in.
Manufacturer's Part Number: 120-15565-SI
Part Type: Brake Calipers
Product Line: Wilwood Billet Narrow Dynalite Radial Mount Calipers
HP Direct Part Number: WIL-120-15565-SI
UPC: 889545088953
Caliper Series: Dynalite Radial Mount
Caliper Piston Quantity: Four
Piston Diameter (in.): 1.620
Rotor Thickness (in.): 0.810 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood Racing
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female threads
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Minimum rotor diameter: 11.75 in.
