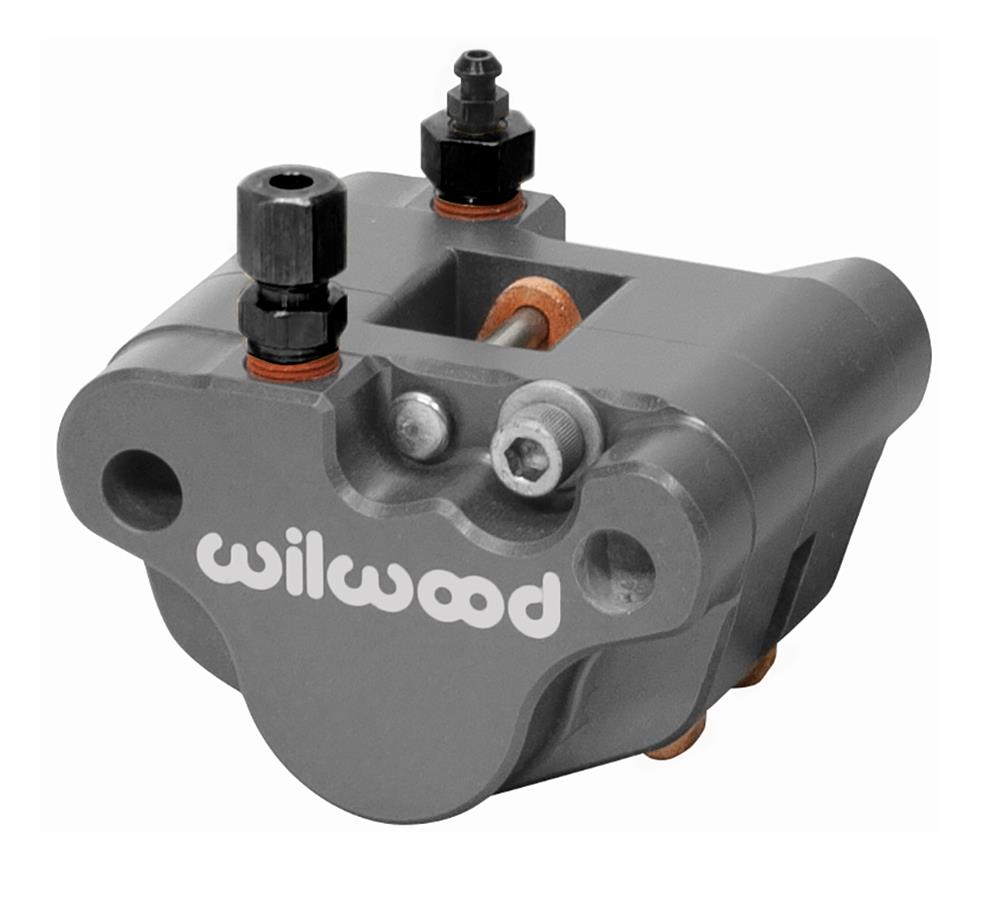

Wilwood Billet Go-Kart Calipers 120-5750

Wilwood Billet Go-Kart calipers feature a unique self-retracting and adjusting piston system, enabling the piston to retract as the brake line pressure is reduced. They can be mounted on either side of the vehicle, and at just 1.20 lbs., the calipers come with high performance, high-friction brake pads. The Wilwood Billet Go-Kart calipers also have a deep-cup stainless steel piston for reduced heat transfer, a cotter pin, a pad retainer, and an internal fluid passage. Order the caliper model best suited for your application needs.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-5750
Part Type: Brake Calipers
Product Line: Wilwood Billet Go-Kart Calipers
HP Direct Part Number: WIL-120-5750
UPC: 889545004236
Caliper Series: Billet Go-Kart
Caliper Piston Quantity: Two
Piston Diameter (in.): 1.000
Rotor Thickness (in.): 0.180 in.
Caliper Material: Aluminum
Caliper Color: Gray/Silver
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Thread Size: 1/8 in. NPT

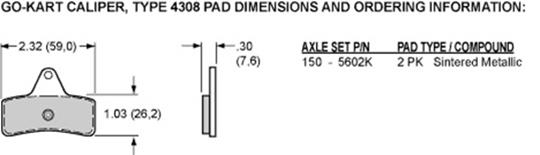

Brake Pads Included: Yes
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
Notes: Caliper comes with high performance, high friction brake pads. The PS-1 fits rotors with diameters ranging from 6.00 in. to 9.00 in. thickness sizes from 0.150 in. to 0.200 in.
