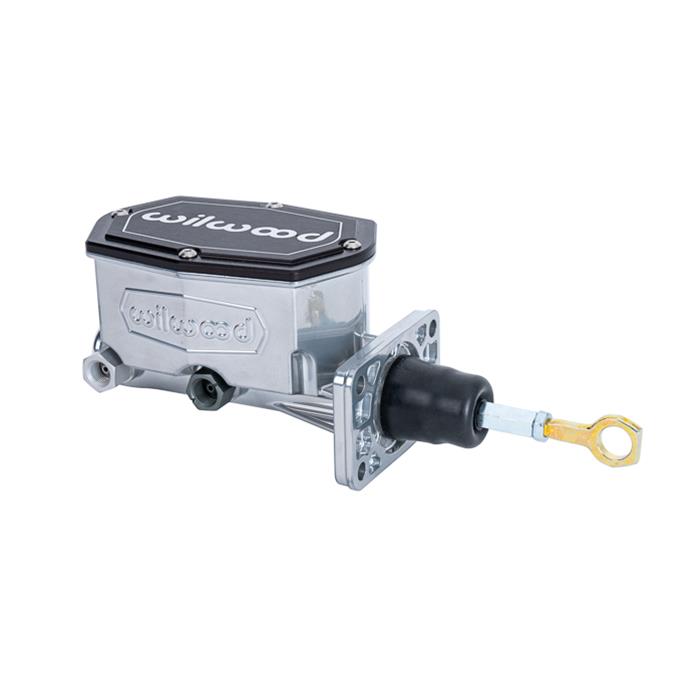

Wilwood Aluminum Master Cylinders 260-16791-P

These Wilwood lightweight aluminum master cylinders provide reliable stopping power for drag race cars, late model stock cars, and off-road vehicles. They utilize standard OEM internal components for dependable performance at an affordable price. They are available with or without large-capacity plastic reservoir and dual outlet bores for responsive performance.Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 260-16791-P
Part Type: Master Cylinders
Product Line: Wilwood Aluminum Master Cylinders
HP Direct Part Number: WIL-260-16791-P
Master Cylinder Usage: Brake
Master Cylinder Bore Size: 0.940 in.
Power Brake Compatible: No
Outlet Quantity: 2
Outlet Size 1: 1/2 in.-20
Outlet Size 2: 1/2 in.-20
Master Cylinder Material: Aluminum
Master Cylinder Finish: Chrome
Bowl Design: Dual
Mounting Hole Quantity: 4 holes
Mounting Flange Center to Center Distance (in.): 3.250
Master Cylinder Stroke: 1.100 in.
Remote Reservoir: No
Reservoir Included: Yes
Reservoir Material: Aluminum
Reservoir Color: Polished
Master Cylinder Cap Included: Yes
Pushrod Included: Yes
Mounting Brackets Included: No
Hardware Included: No
Remanufactured: No
Quantity: Sold individually.

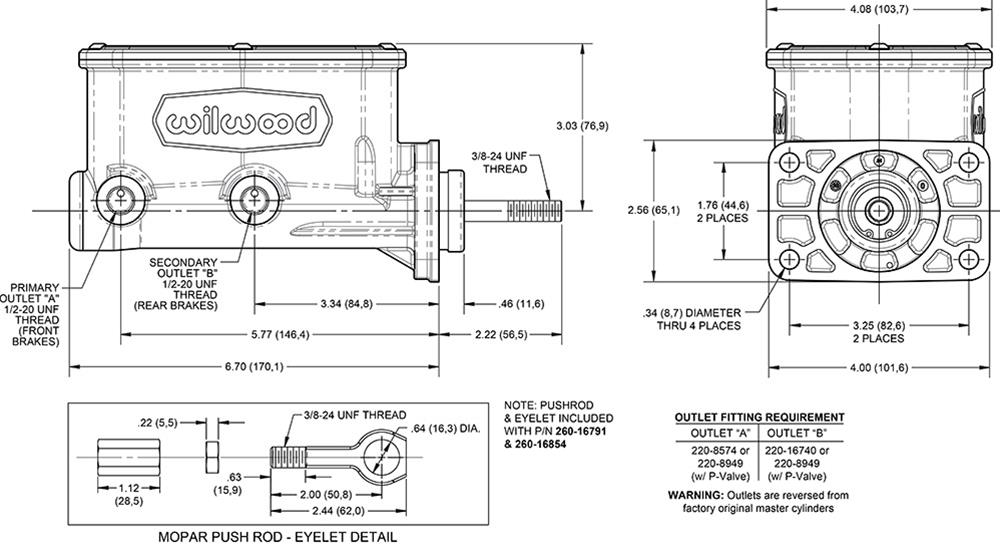

Notes: Uses 4-bolt Mopar 3.25 in. by 1.76 in. mounting pattern.
