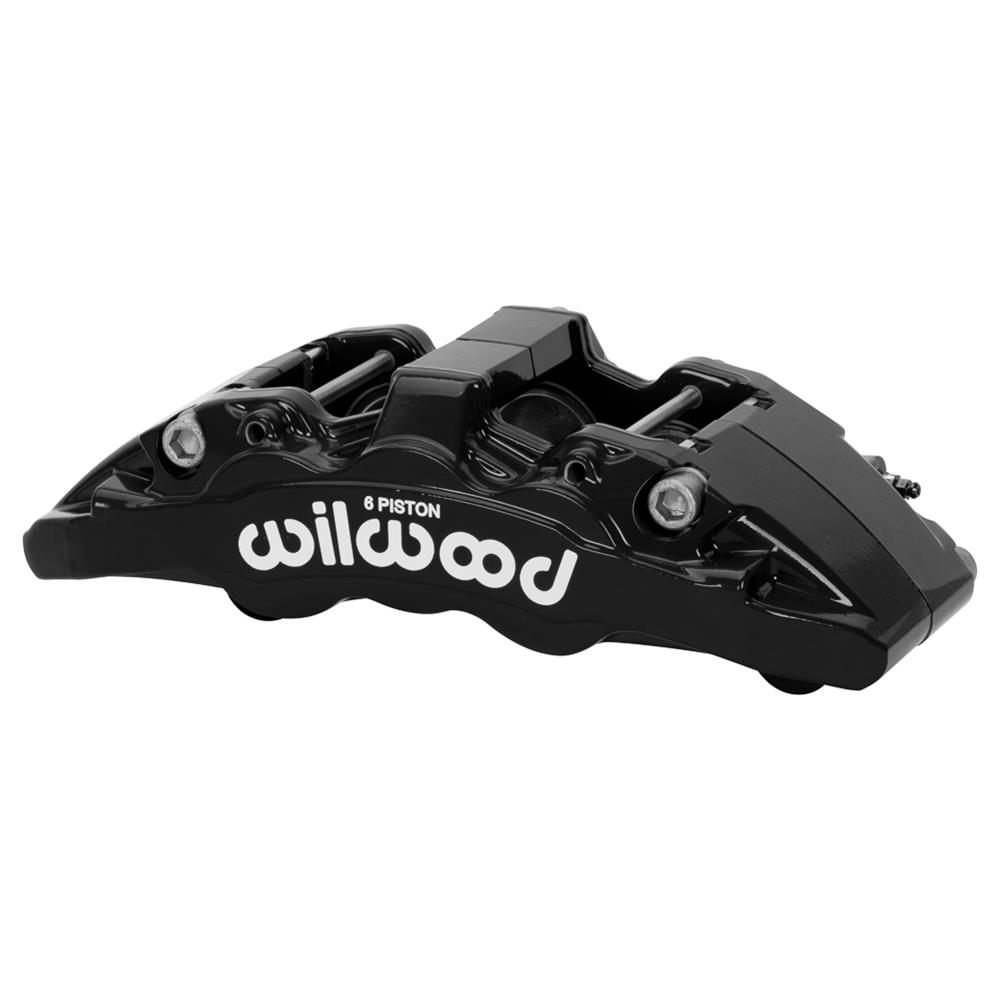

Wilwood AeroDM Lug-Mount Calipers 120-16824-BK

Wilwood AeroDM forged 6-piston lug-mount calipers deliver heavy-duty stopping power for the street and off-road. Each caliper incorporates race technology into a body design offering widespread adaptability. With variable lug geometry, AeroDM calipers offer direct spindle mounting with proprietary 13.38 in. diameter rotors on many late model trucks with multiple options for piston volume, giving these calipers the versatility necessary to suit all types of heavy-weight braking requirements. They are designed with internal fluid ports that eliminate the external fluid cross-over tubes and massive center bridge assembly for extra rigidity. Wilwood AeroDM lug-mount calipers are available in several mounting sizes and powdercoat and anodized finishes. Choose the proper fit and your favorite color.

Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 120-16824-BK
Part Type: Brake Calipers
Product Line: Wilwood AeroDM Lug-Mount Calipers
HP Direct Part Number: WIL-120-16824-BK
Caliper Series: AeroDM Lug Mount
Caliper Piston Quantity: Six
Piston Diameter (in.): 1.750/1.620/1.620
Rotor Thickness (in.): 1.250 in.
Caliper Material: Aluminum
Caliper Color: Black
Caliper Logo: Wilwood
Parking Brake Provision: No
Fittings Included: No
Fitting Attachment 1: Female NPT
Thread Size: 1/8 in. NPT
Brake Pads Included: No
Brackets Included: No
Remanufactured: No
Quantity: Sold individually.
