Wilwood AERO6 Big Brake Truck Front Brake Kits 140-12824

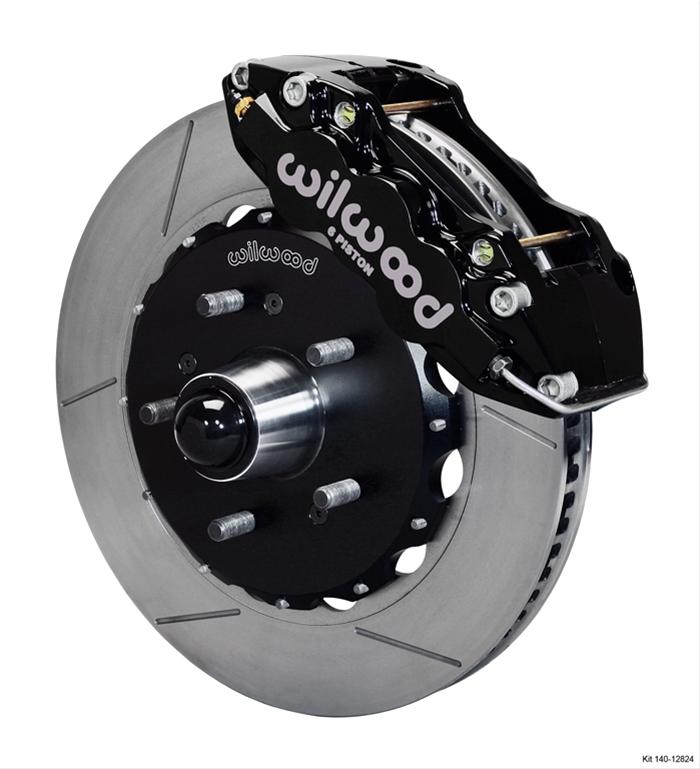

Wilwood AERO6 Big Brake truck front brake kits deliver big performance and style. They feature AERO6 calipers available with a black or red powdercoat and were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy-weight and extreme-duty vehicles. The kits provide big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades.

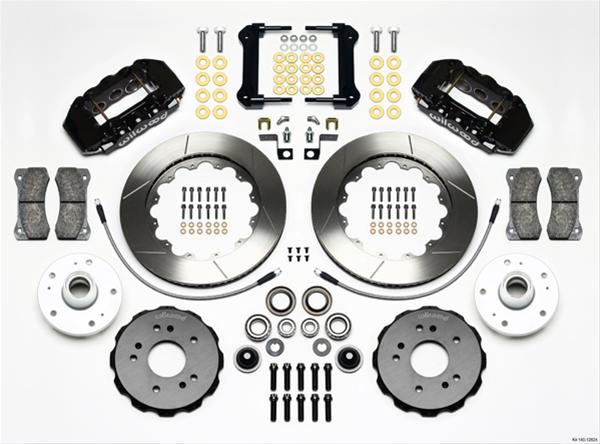

Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14.25 in. rotors provide maximum cooling for sustained high-heat durability. Wilwood AERO6 Big Brake truck front brake kits include calipers, rotors, brake pads, stainless braided flex lines, and hardware.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-12824
Part Type: Disc Brake Kits
Product Line: Wilwood AERO6 Big Brake Truck Front Brake Kits
HP Direct Part Number: WIL-140-12824
UPC: 889545017533
Position: Front
Front Rotor Included: Yes
Front Rotor Style: Slotted surface
Front Rotor Construction: Vented
Front Rotor Diameter: 14.25 in./362.00mm
Front Rotor Thickness (in.): 1.25 in.
Brake Rotor Bolt Pattern (mm): 5 x 135.00mm
Rear Rotor Included: No
Front Caliper Included: Yes
Front Caliper Piston Quantity: Six
Front Caliper Material: Forged billet aluminum
Front Caliper Color: Black
Rear Caliper Included: No
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: No

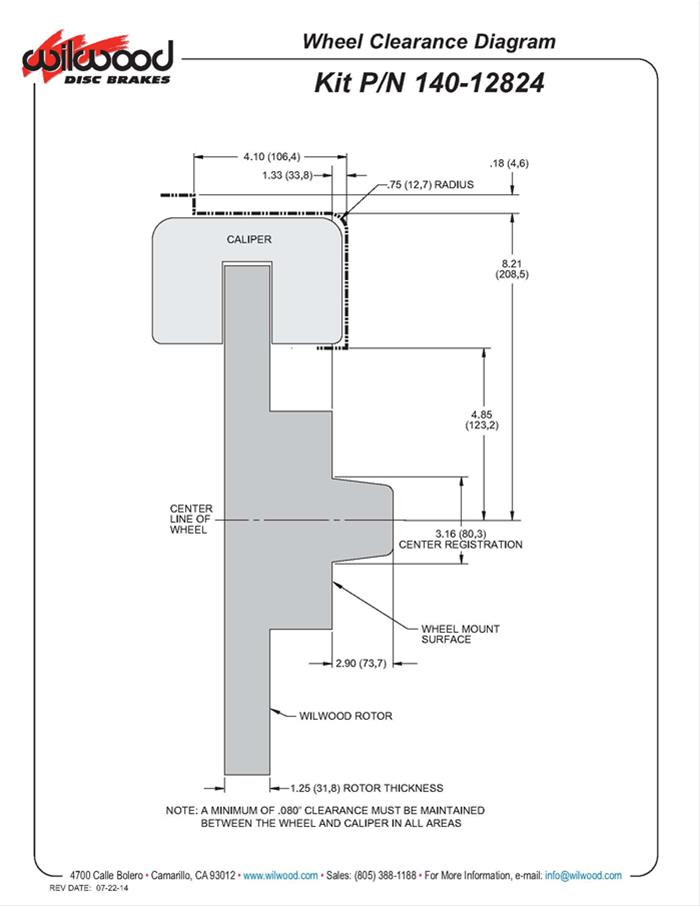

Minimum Recommended Wheel Diameter (in.): 18 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: Yes
Quantity: Sold as a kit.
Notes: Includes 1/2 in.-20 wheel studs. Use with factory spindle.
