Description

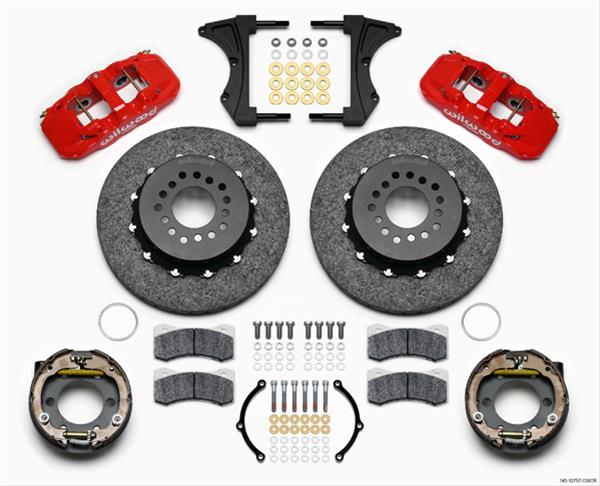

Wilwood AERO4 WCCB Carbon-Ceramic Big Brake rear parking brake kits offer an extreme performance upgrade engineered to maximize braking capacity inside custom wheels. The kits provide WCCB Carbon-Ceramic rotors, Wilwood's exclusive Dynamic Bobbin Mount parking brake hat, AERO4 calipers, brake pads, and hardware.
Additional features, benefits, and contents:
* AERO4 calipers are competition proven and offer fully detail machined forged aluminum caliper bodies for superior strength and resistance to deflection and separation under high load. The calipers are offered in two powdercoat colors.
* WCCB Carbon-Ceramic rotors are made from a proprietary blend of ceramic matrix composite material and dynamically uses a proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity than conventional iron or titanium rotors of similar or even greater weight, and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear.
* Parking brake hat is black e-coated aluminum
* Rear parking brake kits offer a simple bolt-on installation with internal shoe backing plates for outstanding holding power and are fully compatible with ABS and OE master cylinder output.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-12757-CSICR
Part Type: Disc Brake Kits
Product Line: Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kits
HP Direct Part Number: WIL-14012757CSIR
UPC: 889545017397
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: Ford 8.8 in.
Axle Housing Flange Style: Ford Mustang 05/14 8.8 in. (2.304 in. x 3.746 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: Poly-carbon matrix
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 2.660 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
Additional features, benefits, and contents:
* AERO4 calipers are competition proven and offer fully detail machined forged aluminum caliper bodies for superior strength and resistance to deflection and separation under high load. The calipers are offered in two powdercoat colors.
* WCCB Carbon-Ceramic rotors are made from a proprietary blend of ceramic matrix composite material and dynamically uses a proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity than conventional iron or titanium rotors of similar or even greater weight, and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking, and wear.
* Parking brake hat is black e-coated aluminum
* Rear parking brake kits offer a simple bolt-on installation with internal shoe backing plates for outstanding holding power and are fully compatible with ABS and OE master cylinder output.
Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-12757-CSICR
Part Type: Disc Brake Kits
Product Line: Wilwood AERO4 WCCB Carbon-Ceramic Big Brake Rear Parking Brake Kits
HP Direct Part Number: WIL-14012757CSIR
UPC: 889545017397
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: Ford 8.8 in.
Axle Housing Flange Style: Ford Mustang 05/14 8.8 in. (2.304 in. x 3.746 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Solid surface
Rear Rotor Construction: Solid
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Red
Brake Pads Included: Yes
Friction Material Name: Poly-carbon matrix
Parking Brake Provision: Yes
Parking Brake Style: Internal drum
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 2.660 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
