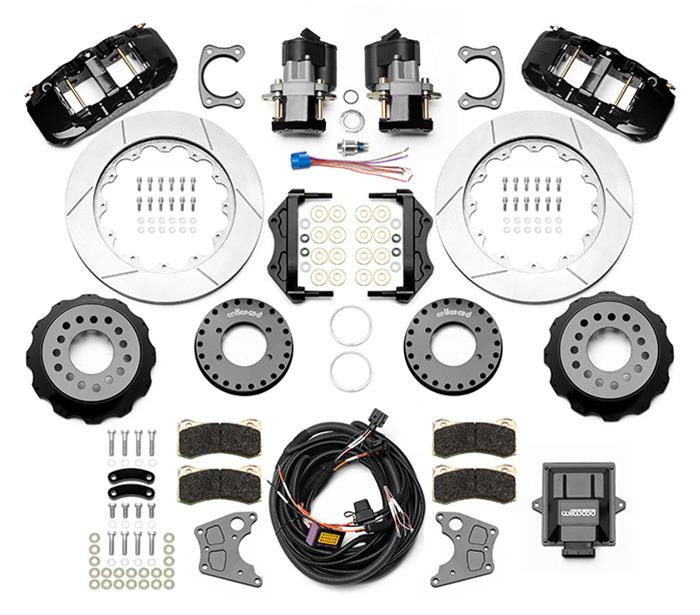

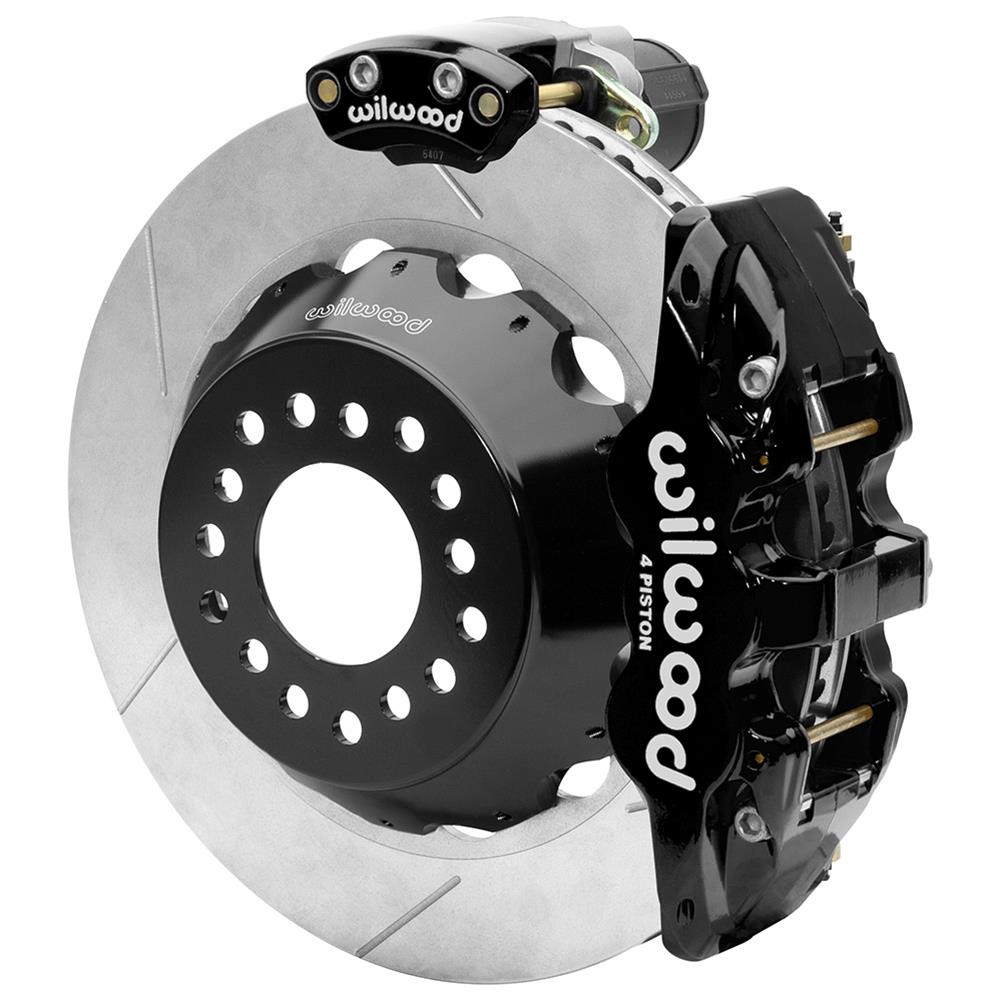

Wilwood AERO4 Big Brake Rear Parking Brake Kits 140-16175

Wilwood AERO4 Big Brake rear parking brake kits replace the factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades on late model trucks, SUVs, and high performance vehicles. High-capacity braking from the AERO4 calipers (black or red powdercoat), high-friction BP compound pads, and oversized rotors (slotted or drilled/slotted) are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Wilwood AERO4 Big Brake rear parking brake kits provide enhanced brake performance, increased durability, and high-tech style to complement big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Brand: Wilwood Disc Brakes
Manufacturer's Part Number: 140-16175
Part Type: Disc Brake Kits
Product Line: Wilwood AERO4 Big Brake Rear Parking Brake Kits
HP Direct Part Number: WIL-140-16175
UPC: 889545098174
Position: Rear
Front Rotor Included: No
Brake Rotor Bolt Pattern (in.): Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm): Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type: Ford 9 in.
Axle Housing Flange Style: Small Ford (3.336 in. x 2.00 in.)
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 1.10
Front Caliper Included: No
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Color: Black
Brake Pads Included: Yes
Friction Material Name: BP-20
Parking Brake Provision: Yes
Parking Brake Style: Electric caliper
Minimum Recommended Wheel Diameter (in.): 18 in.
Offset (in.): 2.500 in.
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Remanufactured: No
Brake Hoses Included: No
Quantity: Sold as a kit.
