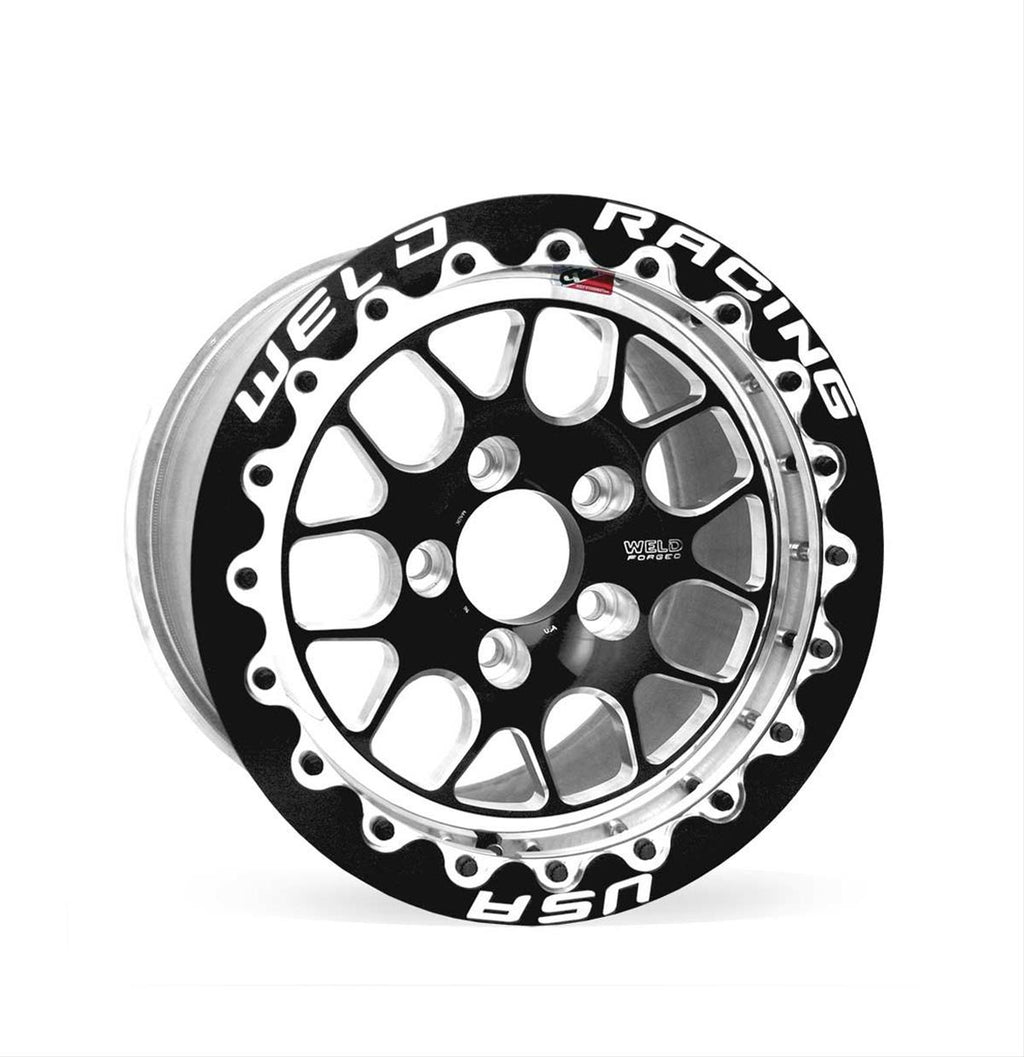

Weld Racing RT-S S77 Forged Aluminum Black Mickey Thompson Beadlock Wheels 77MB509A55F

Weld Racing has fitments for popular modern musclecars, each created uniquely for each car to maximize their stance, including these RT-S S77 forged aluminum black Mickey Thompson beadlock wheels. These wheels feature a smaller beadlock designed for use with Mickey Thompson tires. Built from 3-piece modular construction, the RT-S S77 series wheels feature a unique, multi-spoke design. They continue the Weld Racing tradition of utilizing a forged billet center and cold-forged rim shells for proven strength and durability. These Weld RT-S S77 series wheels are offered in several mounting pad heights to clear specific drum and multi-piston opposed calipers. The Weld RT-S S77s include a matching center cap.Brand: Weld Racing
Manufacturer's Part Number: 77MB509A55F
Part Type: Wheels
Product Line: Weld Racing RT-S S77 Forged Aluminum Black Mickey Thompson Beadlock Wheels
HP Direct Part Number: WLD-77MB509A55F
UPC: 190300441655
Wheel Diameter: 15 in.
Wheel Width (in.): 9.33
Wheel Size: 15x9.33
Wheel Bolt Pattern (application): 5 x 114.3mm 5 x 4 1/2 in.
Wheel Material: Forged aluminum
Manufacturers Wheel Series: Weld Racing RT-S S77 Series
Backspacing (in.): 5.50
Offset: +9.00mm
Wheel Construction: 3-piece
TPMS Sensor Compatible: Yes
Beadlock Type: Single
Beadlock Included: No
Beadlock Color: Black
Beadlock Functional: No
Lug Nut/Bolt Seat Style: Shank
Lug Nut Shank Length (in.): 0.55
Lug Nut Shank Diameter (in.): 0.69
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.18
Center Bore Diameter (mm): 80.77
Center Cap Included: Yes
Load Rating (lbs.): 1,580 lbs.
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: Yes
Valve Stem Material: Steel
Valve Stem Finish: Chrome
Quantity: Sold individually.
Notes: Medium pad design. Black beadlock ring.
Designed for Dually Truck: No
