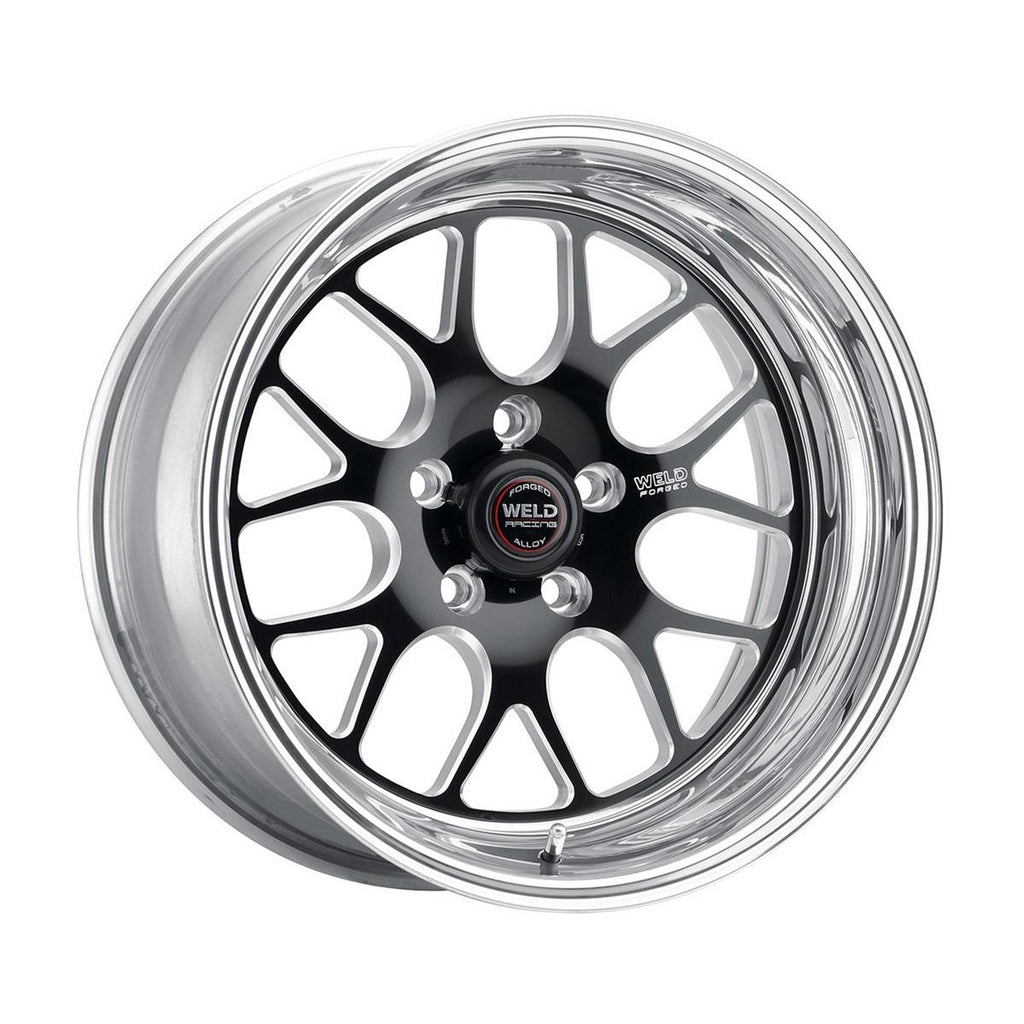

Weld Racing RT-S S77 Forged Aluminum Black Anodized Wheels 77MB0100C64A

Weld Racing has fitments for popular modern musclecars, each created uniquely for each car to maximize their stance, including these RT-S S77 forged aluminum black anodized wheels. Built from 3-piece modular construction, the RT-S S77 series wheels feature a unique, multi-spoke design. They continue the Weld Racing tradition of utilizing a forged billet center and cold-forged rim shells for proven strength and durability. These Weld RT-S S77 series wheels are offered in several mounting pad heights to clear specific drum and multi-piston opposed calipers. The Weld RT-S S77s include a matching center cap.Brand: Weld Racing
Manufacturer's Part Number: 77MB0100C64A
Part Type: Wheels
Product Line: Weld Racing RT-S S77 Forged Aluminum Black Anodized Wheels
HP Direct Part Number: WLD-77MB0100C64A
UPC: 190300183715
Wheel Diameter: 20 in.
Wheel Width (in.): 10.00
Wheel Size: 20x10
Wheel Bolt Pattern (application): 5 x 127mm 5 x 5 in.
Wheel Material: Forged aluminum
Designed for Dually Truck: No
Wheel Face Color: Black
Wheel Face Finish: Matte/Satin
Wheel Barrel/Lip Color: Polished
Wheel Barrel/Lip Finish: Polished
Manufacturers Wheel Series: Weld Racing RT-S S77 Series
Backspacing (in.): 6.40
Offset: +17.00mm
Wheel Construction: 3-piece
TPMS Sensor Compatible: Yes
Beadlock Type: None
Lug Nut/Bolt Seat Style: Conical seat - 60 degree
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.18
Center Bore Diameter (mm): 80.77
Center Cap Included: Yes
Load Rating (lbs.): 1,580 lbs.
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: Yes
Valve Stem Material: Rubber
Valve Stem Finish: Chrome sleeve
Quantity: Sold individually.
Notes: Medium pad design.
