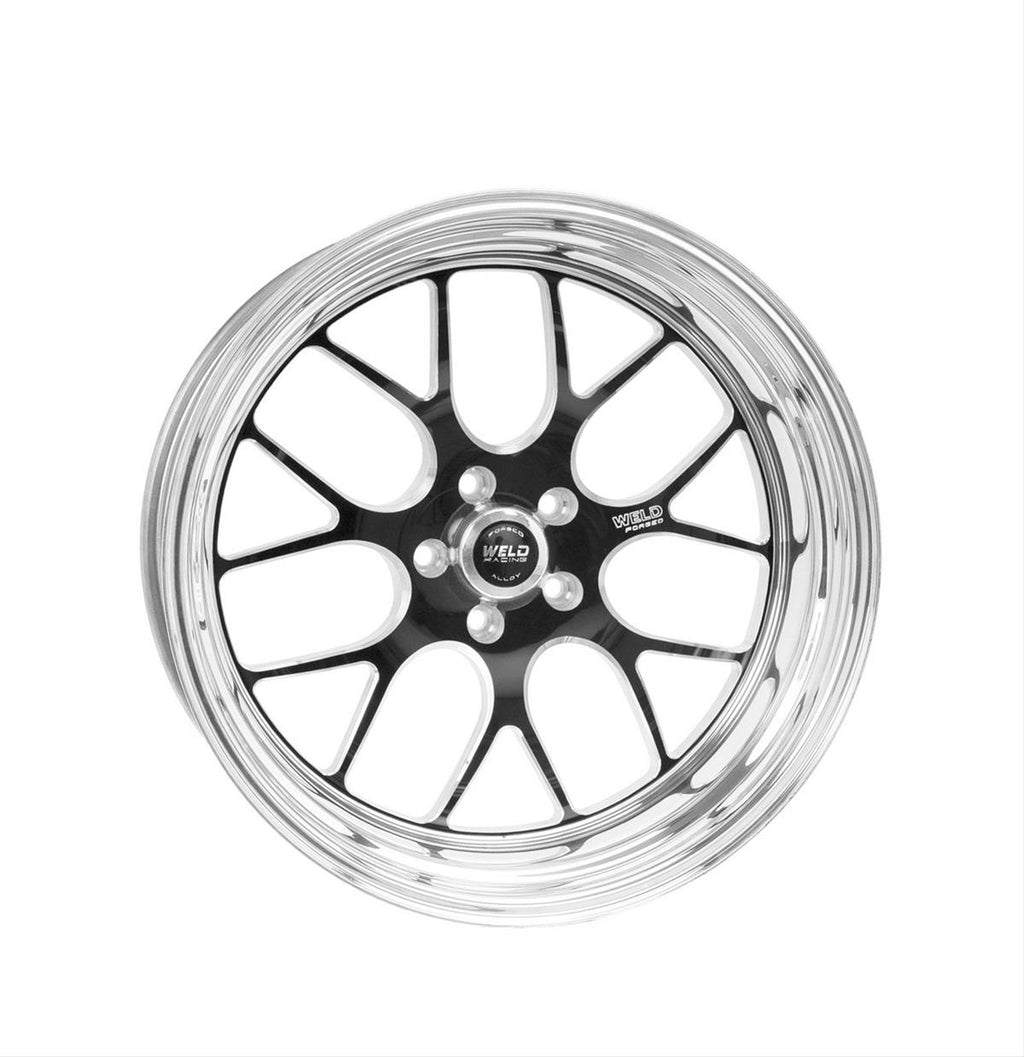

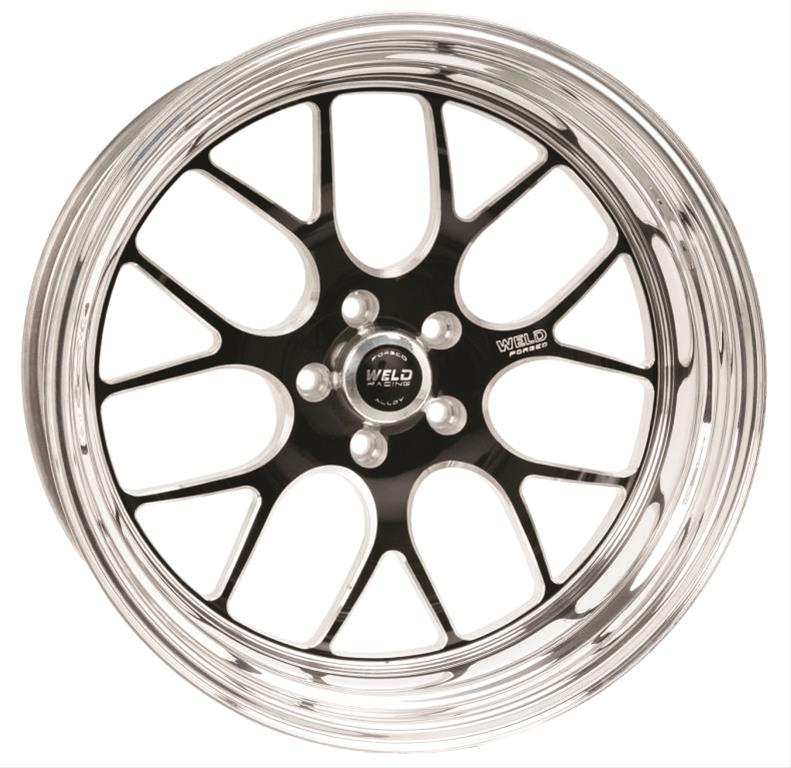

Weld Racing RT-S S77 Forged Aluminum Black Anodized Wheels 77HB7100B62A

Brand: Weld Racing
Manufacturer's Part Number: 77HB7100B62A
Part Type: Wheels
Product Line: Weld Racing RT-S S77 Forged Aluminum Black Anodized Wheels
Automotive Fittings Part Number: WLD-77HB7100B62A
UPC: 190300414161
Wheel Diameter: 17 in.
Wheel Width (in.): 10.00
Wheel Size: 17x10
Wheel Bolt Pattern (application): 5 x 120.65mm 5 x 4 3/4 in.
Wheel Material: Forged aluminum
Manufacturers Wheel Series: Weld Racing RT-S S77 Series
Backspacing (in.): 6.20
Offset: +18.00mm
Wheel Construction: 3-piece
TPMS Sensor Compatible: Yes
Beadlock Included: No
Beadlock Functional: No
Lug Nut/Bolt Seat Style: Conical seat - 60 degree
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.18
Center Bore Diameter (mm): 81.00
Center Cap Included: Yes
Load Rating (lbs.): 1,580 lbs.
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: Yes
Valve Stem Material: Steel
Valve Stem Finish: Chrome
Quantity: Sold individually.
Notes: High pad design.
Designed for Dually Truck: No
Description:
Weld Racing has fitments for popular modern musclecars, each created uniquely for each car to maximize their stance, including these RT-S S77 forged aluminum black anodized wheels. Built from 3-piece modular construction, the RT-S S77 series wheels feature a unique, multi-spoke design. They continue the Weld Racing tradition of utilizing a forged billet center and cold-forged rim shells for proven strength and durability. These Weld RT-S S77 series wheels are offered in several mounting pad heights to clear specific drum and multi-piston opposed calipers. The Weld RT-S S77s include a matching center cap.
