Weld Racing RT-S S71 Forged Aluminum Polished Wheels 71LP-505C25C

Weld Racing RT-S forged aluminum polished wheels feature 3-piece forgings that are assembled by welding, for application flexibility. They are manufactured using primary forging-grade aluminum alloys to create maximum strength and durability. Weld Racing RT-S forged aluminum polished wheels are available in 15 in. to 18 in. diameters and are tested with F.E.A. and in-house destructive testing to ensure safety.Brand: Weld Racing
Manufacturer's Part Number: 71LP-505C25C
Part Type: Wheels
Product Line: Weld Racing RT-S S71 Forged Aluminum Polished Wheels
HP Direct Part Number: WLD-71LP-505C25C
UPC: 190300251223
Wheel Diameter: 15 in.
Wheel Width (in.): 5.33
Wheel Size: 15x5.33
Wheel Bolt Pattern (application): 5 x 127mm 5 x 5 in.
Wheel Material: Forged aluminum
Designed for Dually Truck: No
Manufacturers Wheel Series: Weld Racing RT-S S71 Series
Backspacing (in.): 2.50
Offset: -16.00mm
Wheel Construction: 3-piece
TPMS Sensor Compatible: Yes
Beadlock Type: None
Lug Nut/Bolt Seat Style: Conical seat - 60 degree
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.18
Center Bore Diameter (mm): 80.77
Center Cap Included: Yes
Load Rating (lbs.): 1,580 lbs.
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: Yes
Valve Stem Material: Rubber
Valve Stem Finish: Chrome sleeve
Quantity: Sold individually.

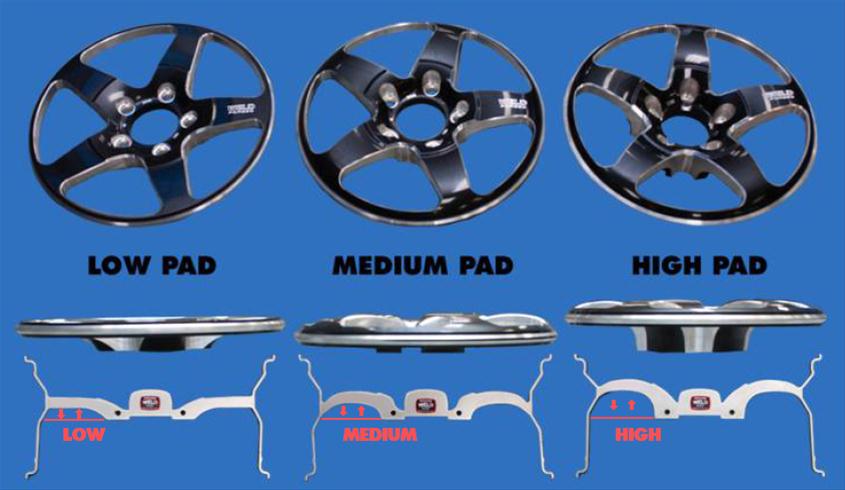

Notes: Low brake clearance design. .89 in. from the peak of the spoke curvature for brake clearance. Will not accept 5/8 in. drive studs.
