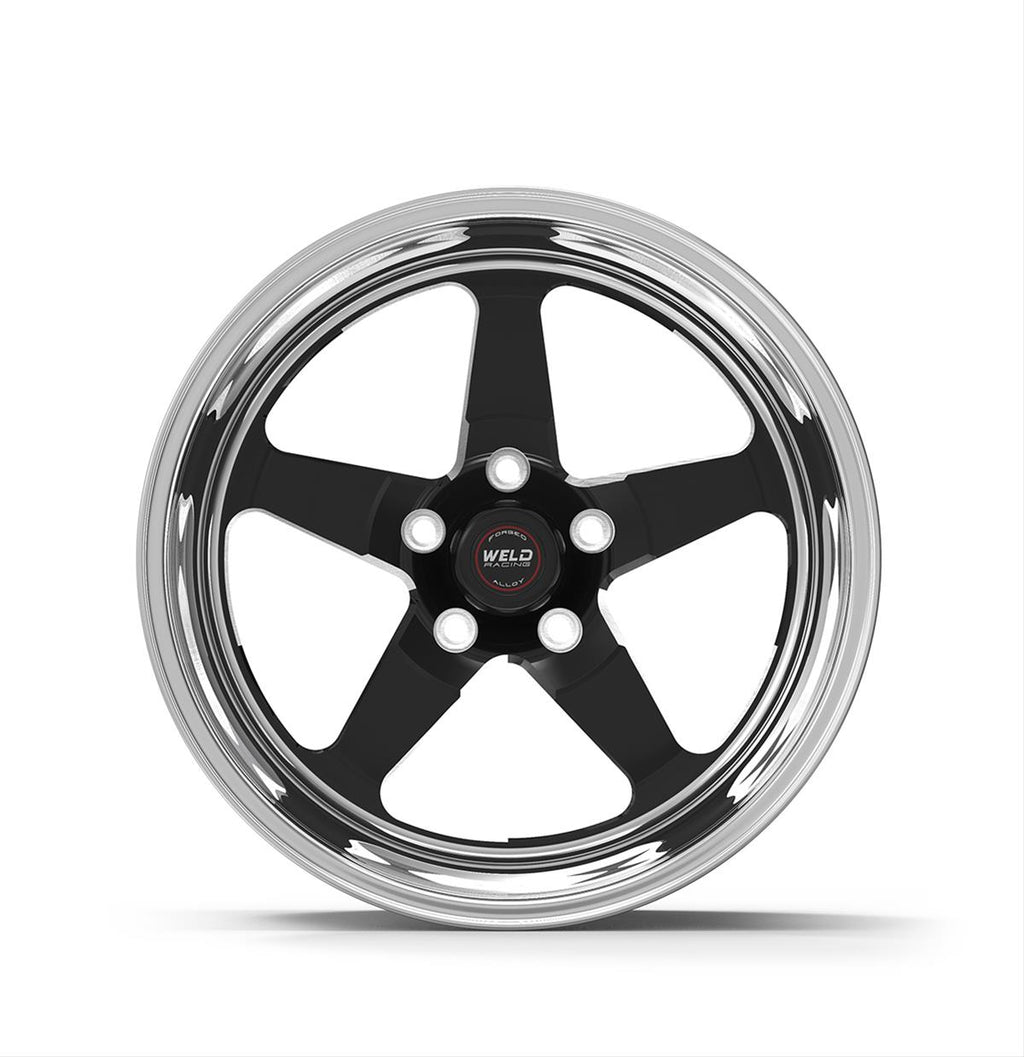

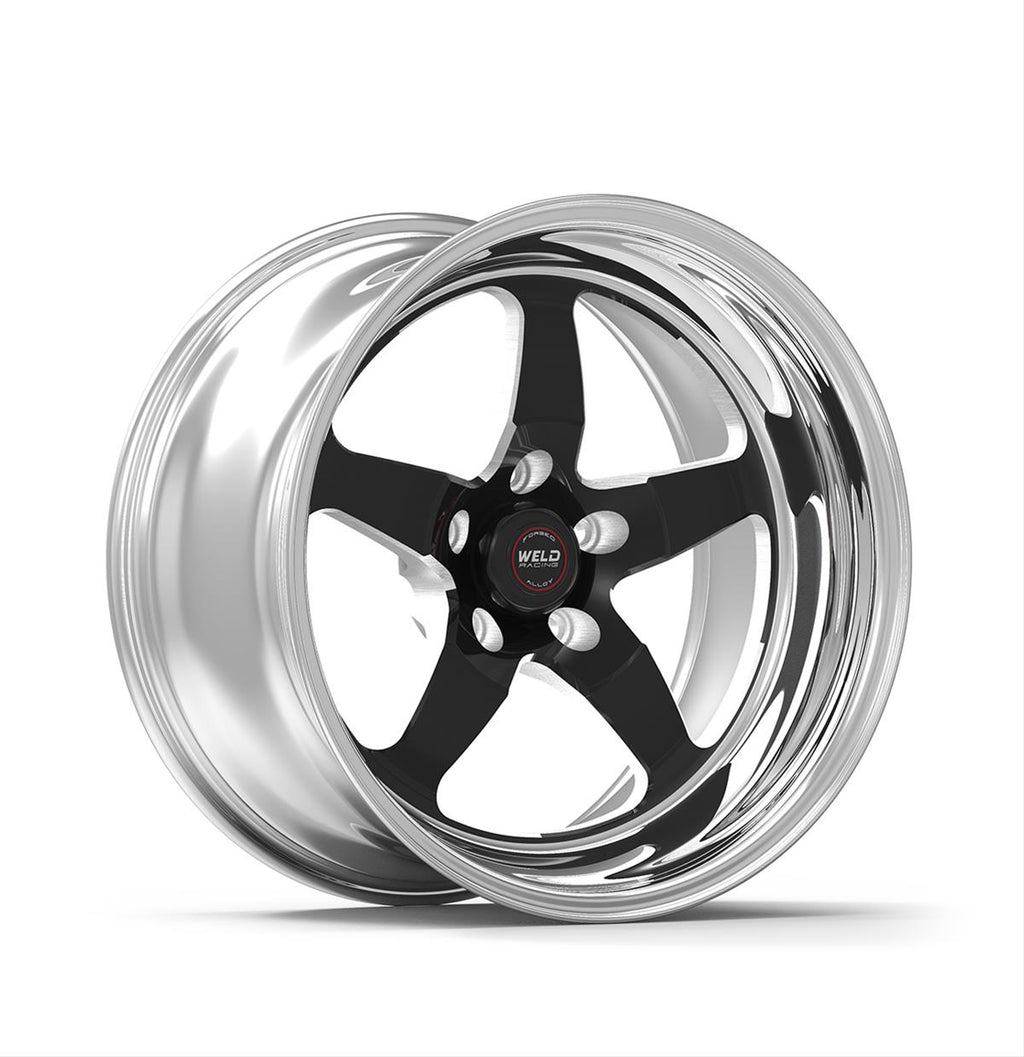

Weld Racing RT-S S71 Forged Aluminum Black Mickey Thompson Beadlock Wheels 71LB509A75F

Weld Racing RT-S S71 forged aluminum black Mickey Thompson beadlock wheels feature budget friendly 3-piece forgings that are assembled by welding, for application flexibility. They are manufactured using primary forging-grade aluminum alloys to create maximum strength and durability.
These wheels feature the classic Weld Racing look and continue their tradition of utilizing a forged billet center and cold-forged rims. They offer three mounting pad heights to clear specific drum and multi-piston opposed calipers.

Weld Racing RT-S S71 forged aluminum black Mickey Thompson beadlock wheels are available in a range of sizes and are tested using Finite Element Analysis (FEA) and in-house destructive testing to ensure safety.
Brand: Weld Racing
Manufacturer's Part Number: 71LB509A75F
Part Type: Wheels
Product Line: Weld Racing RT-S S71 Forged Aluminum Black Mickey Thompson Beadlock Wheels
HP Direct Part Number: WLD-71LB509A75F
UPC: 190300235438
Wheel Diameter: 15 in.
Wheel Width (in.): 9.28
Wheel Size: 15x9.28
Wheel Bolt Pattern (application): 5 x 114.3mm 5 x 4 1/2 in.
Wheel Material: Forged aluminum
Designed for Dually Truck: No
Manufacturers Wheel Series: Weld Racing RT-S S71 Series
Backspacing (in.): 7.50
Wheel Construction: 3-piece
TPMS Sensor Compatible: Yes
Beadlock Included: Yes
Beadlock Functional: Yes
Lug Nut/Bolt Seat Style: Shank
Lug Nut Shank Length (in.): 0.55
Lug Nut Shank Diameter (in.): 0.69
Washer Outside Diameter (in.): 1.25 in.
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.18
Center Bore Diameter (mm): 80.77
Center Cap Included: Yes
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: Yes
Valve Stem Material: Steel
Valve Stem Finish: Chrome
Quantity: Sold individually.
Notes: Low brake clearance design. Black beadlock ring.
