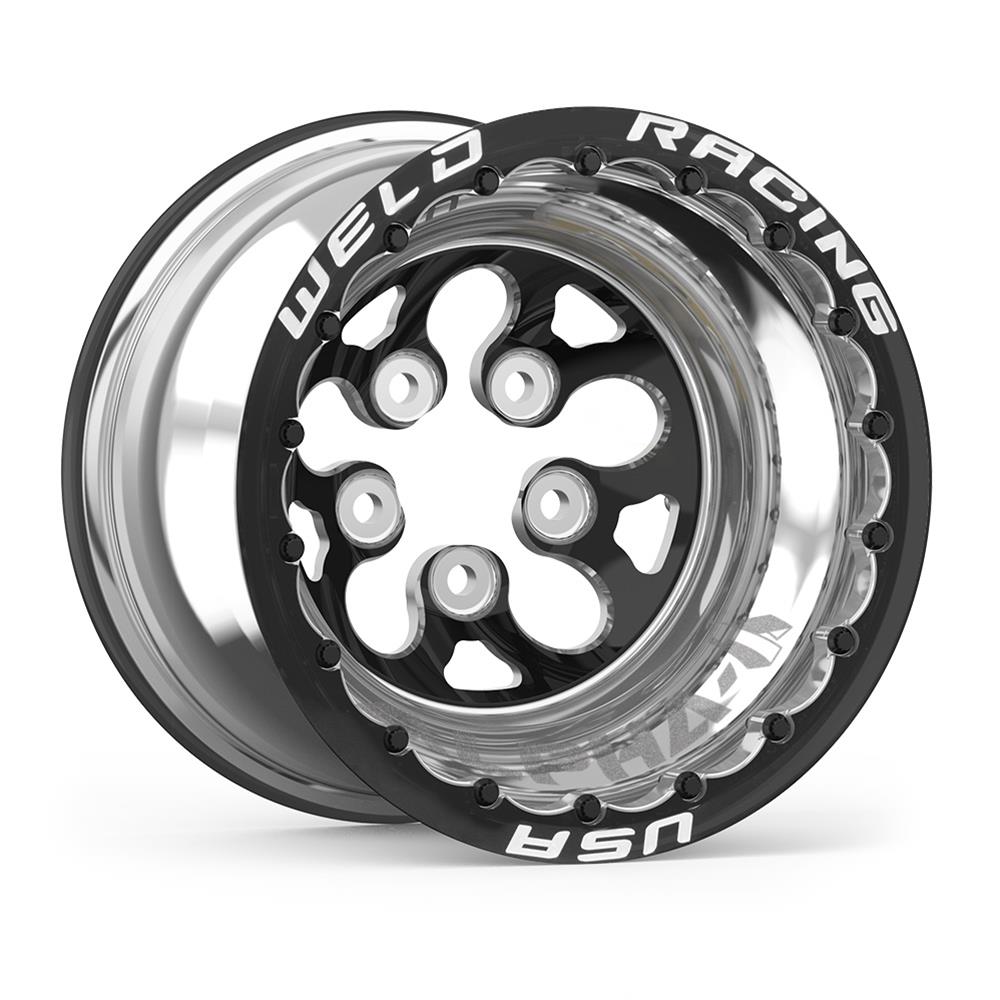

Weld Racing Matte Black Alpha-1 Pro Double Beadlock Wheels 83XB513274MB

Weld Racing has taken its revolutionary Delta-1 technology to 15 in. sizes with the introduction of the all-new Alpha-1 Pro double beadlock wheels. They feature Weld's exclusive hubless design pioneered and proven in NHRA Pro Stock, Funny Car, and Top Fuel racing. Setting a new standard for lightweight rear drag wheels, Alpha-1 forged aluminum rims are specifically designed for sportsman racers competing in the radial and small tires classes. The wheels feature black anodized spokes and beadlock rings, with brilliantly polished lips—and are available in a 15 in. diameter with widths ranging from 8 to 16 inches and in all popular bolt patterns.

Additional notes:

* 3-piece forged construction
* Optimized for weight reduction
* Floating hubless design found on the Delta-1
* Forged 6061 double beadlock rings
* Pro SFI 15.3 Certified

Brand: Weld Racing
Manufacturer's Part Number: 83XB513274MB
Part Type: Wheels
Product Line: Weld Racing Matte Black Alpha-1 Pro Double Beadlock Wheels
HP Direct Part Number: WLD-83XB513274MB
UPC: 00190300114221
Wheel Diameter: 15 in.
Wheel Width (in.): 13.00
Wheel Size: 15x13
Wheel Bolt Pattern (application): 5 x 120.65mm 5 x 4 3/4 in.
Wheel Material: Forged aluminum
Designed for Dually Truck: No
Manufacturers Wheel Series: Weld Racing Alpha-1 Pro Series
Backspacing (in.): 2.00
Offset: -127.00mm
Wheel Construction: 3-piece
TPMS Sensor Compatible: No
Beadlock Type: Single
Beadlock Color: Black
Lug Nut/Bolt Seat Style: Shank
Lug Nut Shank Length (in.): 0.55
Lug Nut Shank Diameter (in.): 0.69
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.18
Center Bore Diameter (mm): 80.77
Center Cap Included: No
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: No
Quantity: Sold individually.
Notes: Beadlock designed for Mickey Thompson style tire beads.
