Weld Racing Magnum PRO Polished Wheels 87P-616560K

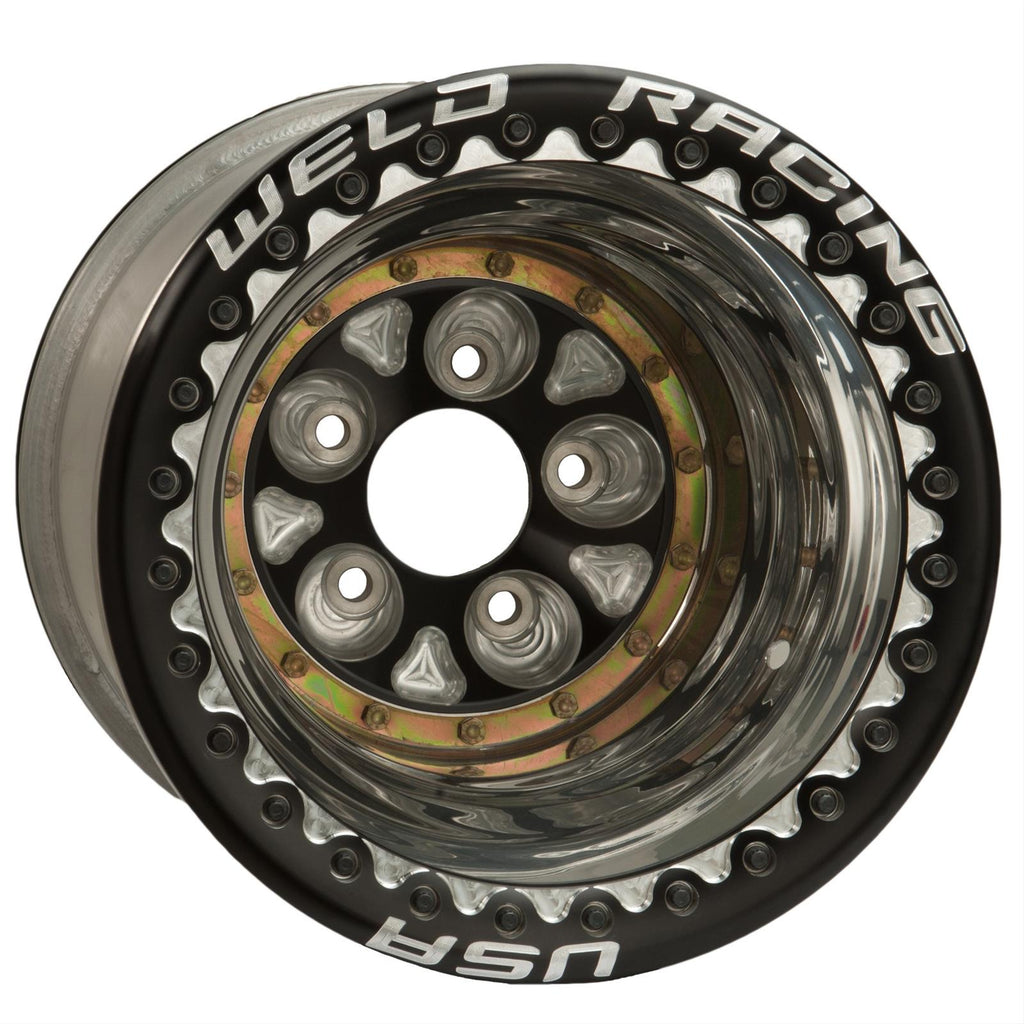

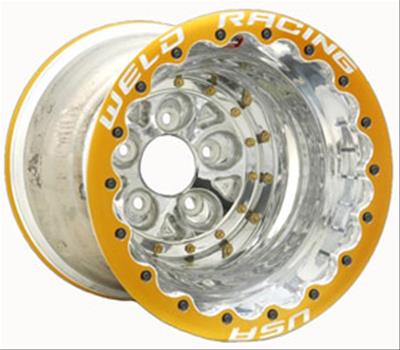

Drag racers have a quarter-mile to flaunt their speed skills--but you'll take an extra victory lap just to show off your Magnum PRO wheels from Weld Racing! These ornate rims are the choice of Top Fuel and Funny Car competitors, bursting with polished contour and accents. Most PRO wheels include a special beadlock design for premier clamping force; non-beadlock versions are also available for use with liner tires. Forged from potent 6061-T6 aluminum, Magnum PRO wheel centers are built to perform among high-stress digits like 8,000 hp and 300 mhp! These Weld Racing signatures are machined here in America and surpass SFI 15.3 standards; they're intended for use with a 5/8 in. drive stud. Select the width, offset, backspacing, and other options … then mount up your Magnum PROs and dominate the drag strip!Brand: Weld Racing
Manufacturer's Part Number: 87P-616560K
Part Type: Wheels
Product Line: Weld Racing Magnum PRO Polished Wheels
HP Direct Part Number: WLD-87P-616560K
UPC: 190300074013
Wheel Diameter: 16 in.
Wheel Width (in.): 16.00
Wheel Size: 16x16
Wheel Bolt Pattern (application): 5 x 139.70mm 5 x 5 1/2 in.
Wheel Material: Forged aluminum
Designed for Dually Truck: No
Wheel Face Color: Black
Wheel Face Finish: Gloss
Wheel Barrel/Lip Color: Polished
Wheel Barrel/Lip Finish: Polished
Wheel Accent Color: Gold
Manufacturers Wheel Series: Weld Racing Magnum P.R.O. Series
Backspacing (in.): 5.00
Offset: -88.90mm
Wheel Construction: 3-piece
TPMS Sensor Compatible: No
Beadlock Type: Double
Beadlock Color: Black
Lug Nut/Bolt Seat Style: Shank
Lug Nut Shank Length (in.): 0.55
Lug Nut Shank Diameter (in.): 0.69
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.50
Center Bore Diameter (mm): 89.00
Center Cap Included: No
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: No
Quantity: Sold individually.
Notes: Designed for use with a liner tire.
