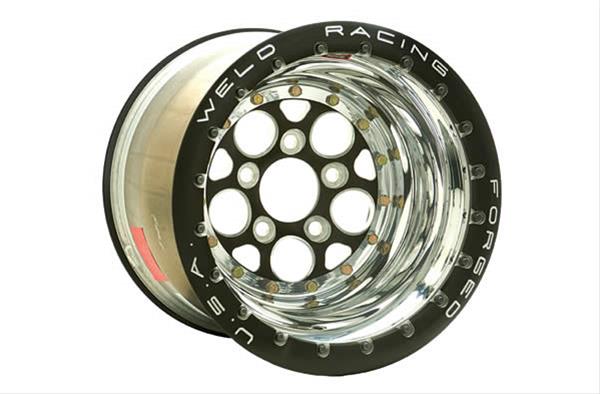

Weld Racing Magnum Drag 2.0 Black Anodized Wheels 86B-616B418UP

Weld Racing's Magnum Drag 2.0 black anodized wheels feature a lighter, stronger, forged aluminum center and cold-drawn rim shell halves. These wheels have an outer polished lip. Weld Racing Magnum Drag 2.0 black anodized wheels' double-rolled outer rim lips make for stronger, straighter, and better screw retention. They are available in standard and double-beadlock designs, so whether you're racing Super Gas or Top Fuel, Weld has you covered.Brand: Weld Racing
Manufacturer's Part Number: 86B-616B418UP
Part Type: Wheels
Product Line: Weld Racing Magnum Drag 2.0 Black Anodized Wheels
HP Direct Part Number: WLD-86B616B418UP
UPC: 190300061907
Wheel Diameter: 16 in.
Wheel Width (in.): 16.00
Wheel Size: 16x16
Wheel Bolt Pattern (application): 5 x 127mm 5 x 5 in.
Wheel Material: Forged aluminum
Designed for Dually Truck: No
Manufacturers Wheel Series: Weld Racing Magnum Drag 2.0 Series
Backspacing (in.): 4.00
Offset: -114.00mm
Wheel Construction: 3-piece
TPMS Sensor Compatible: No
Beadlock Included: Yes
Beadlock Functional: Yes
Lug Nut/Bolt Seat Style: Shank
Lug Nut Shank Length (in.): 0.55
Lug Nut Shank Diameter (in.): 0.69
Washer Outside Diameter (in.): 1.30 in.
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.50
Center Bore Diameter (mm): 88.90
Center Cap Included: No
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: No
Recommended Valve Stem: 5/8 in. bolt-on
Quantity: Sold individually.
Notes: Includes polished ultra-light beadlock rings. Do not use in Pro Modified racing.
