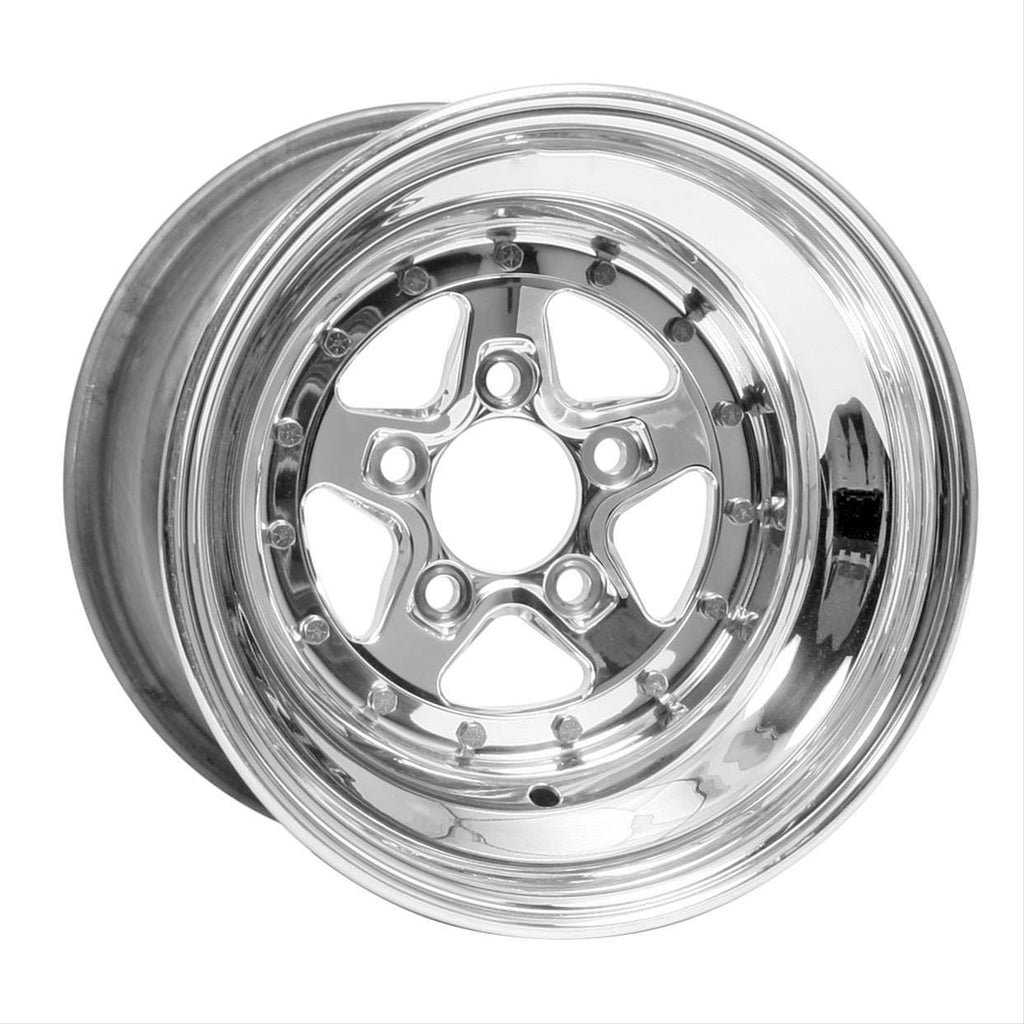

Weld Racing AlumaStar 2.0 Polished Mickey Thompson Beadlock Wheels 88-514286F

The choice of many racers, Weld Racing AlumaStar 2.0 polished Mickey Thompson beadlock wheels are a 2-piece design with a 5-spoke forged center. Weld bolts them to cold-forged aluminum rim halves with 5/16 in. Grade 8 bolts. Weld AlumaStar 2.0 wheels are NHRA-accepted in all classes and are over twice as strong as SFI 15.1 race wheel specs require them to be. These wheels feature a smaller bead area designed for use with Mickey Thompson tires.Brand: Weld Racing
Manufacturer's Part Number: 88-514286F
Part Type: Wheels
Product Line: Weld Racing AlumaStar 2.0 Polished Mickey Thompson Beadlock Wheels
HP Direct Part Number: WLD-88514286F
UPC: 190300081622
Wheel Diameter: 15 in.
Wheel Width (in.): 14.00
Wheel Size: 15x14
Wheel Bolt Pattern (application): 5 x 120.65mm 5 x 4 3/4 in.
Wheel Material: Forged aluminum
Designed for Dually Truck: No
Manufacturers Wheel Series: Weld Racing Aluma-Star 2.0 Series
Backspacing (in.): 8.00
Offset: +12.70mm
Wheel Construction: 3-piece
TPMS Sensor Compatible: No
Beadlock Included: Yes
Beadlock Functional: Yes
Lug Nut/Bolt Seat Style: Shank
Lug Nut Shank Length (in.): 0.55
Lug Nut Shank Diameter (in.): 0.69
Hub Centric Ring Compatible: No
Center Bore Diameter (in.): 3.18
Center Bore Diameter (mm): 81.00
Center Cap Included: No
Lug Nuts Included: No
Small Diameter Lug Nuts Required: No
Valve Stems Included: No
Quantity: Sold individually.
Notes: Black beadlock ring.
