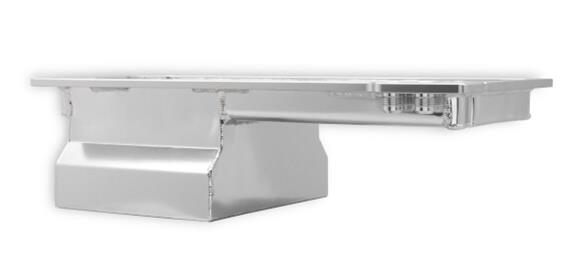

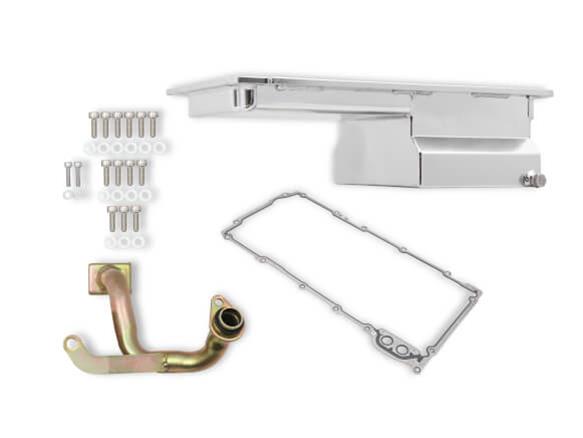

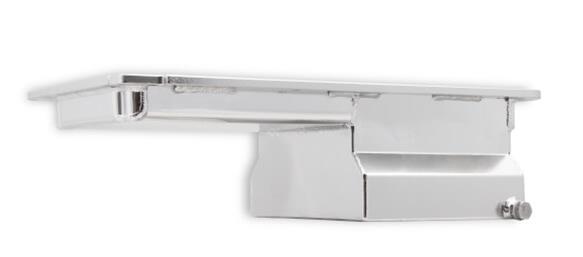

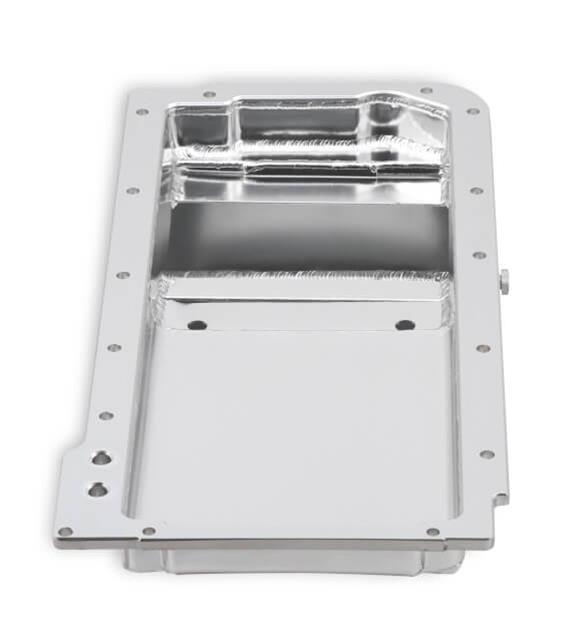

Weiand Oil Pan Packages 5044WND

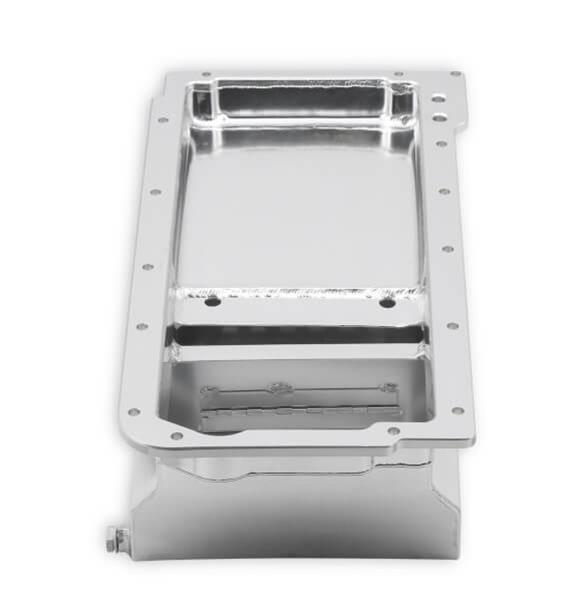

Weiand oil pan packages were clearly visible on those old gassers, getting them down the track with speed and consistency. The oil pan features trap door baffles to help keep oil under control during hard acceleration, as well as increased oil capacity to keep high performance engine oil systems fed properly. Choose from among dozens of Weiand oil pan packages—a great option for drag race, road race, and circle track applications.



Brand: Weiand
Manufacturer's Part Number: 5044WND
Part Type: Oil Pans
Product Line: Weiand Oil Pan Packages
HP Direct Part Number: WND-5044WND
UPC: 090127042694
Sump Style: Wet
Oil Pan Style: Street/Strip
Rear Main Seal Style: 1-piece
Sump Location: Front
Oil Pan Capacity: 7.00 quarts
Stroker Clearanced: No
Maximum Stroke with OE Rod: 3.620 in.
Dipstick Provision: No
Dipstick Included: No
Oil Pan Depth (in.): 6.375
Oil Pan Material: Aluminum
Oil Pan Color: Silver
Baffled: No
Kicked Out: No
Windage Tray Included: No

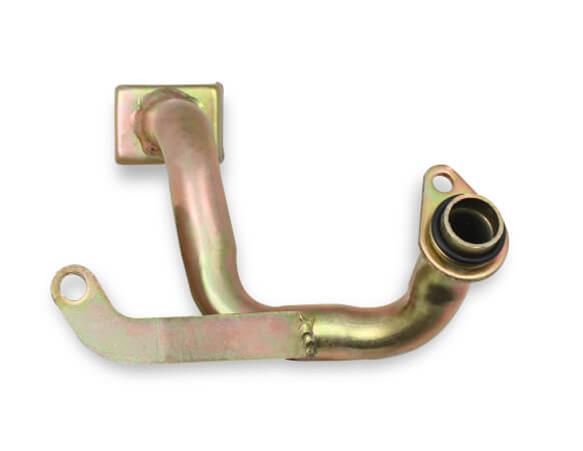

Pickup Included: Yes
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Crank Scraper Included: No

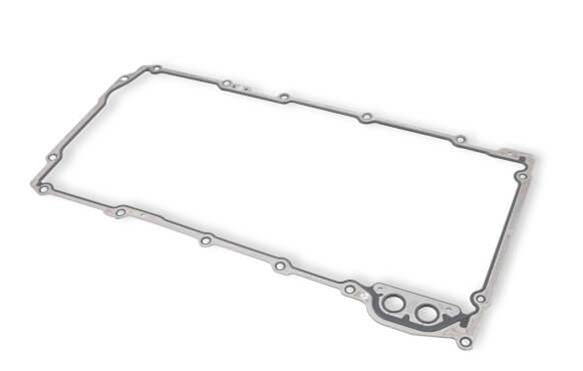

Gaskets Included: No

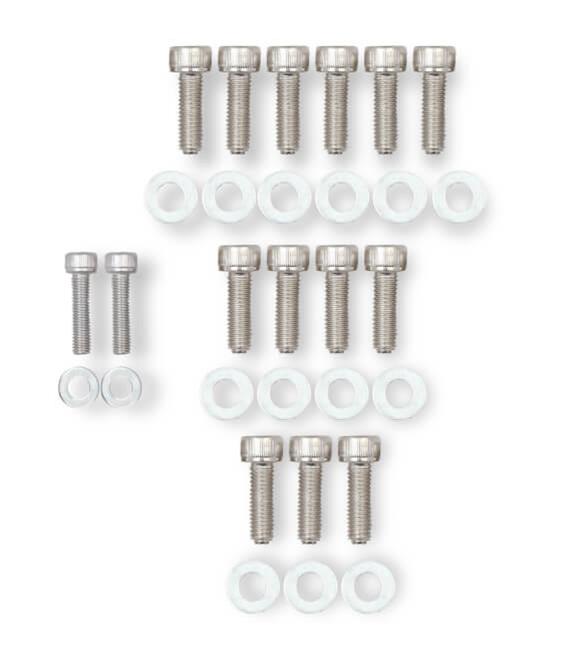

Hardware Included: No
Quantity: Sold individually.

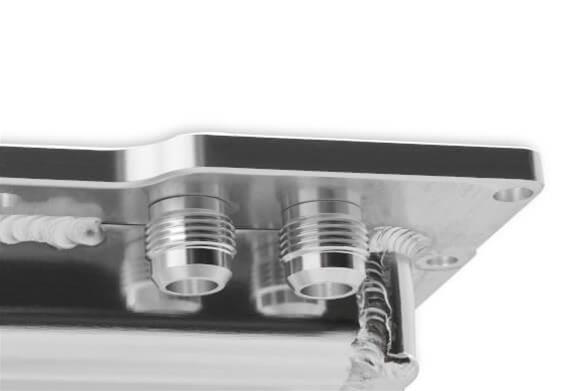

Notes: This pan is designed for use with a remote oil filter.
