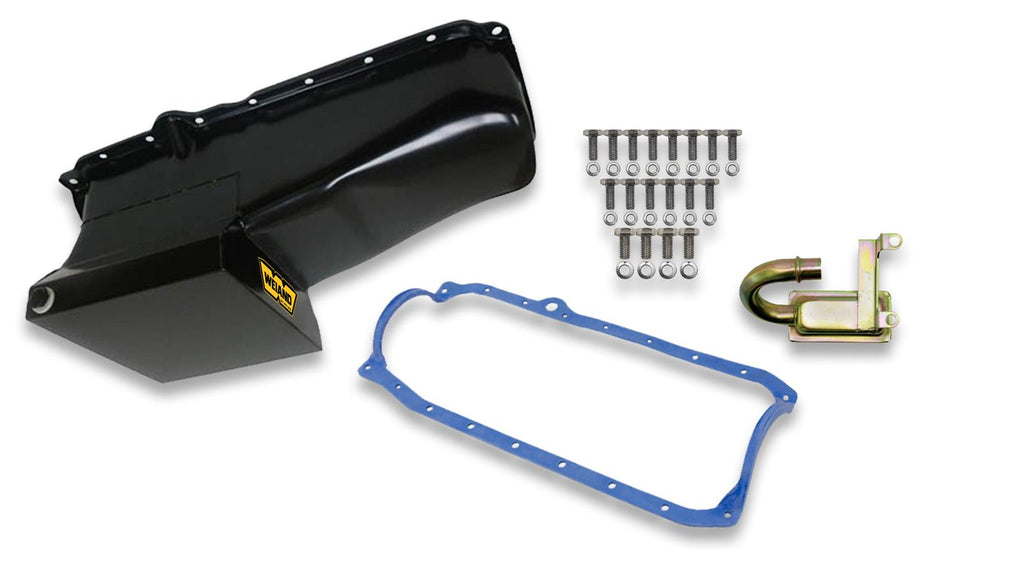

Weiand Oil Pan Packages 5004WND

Weiand oil pan packages were clearly visible on those old gassers, getting them down the track with speed and consistency. The oil pan features trap door baffles to help keep oil under control during hard acceleration, as well as increased oil capacity to keep high performance engine oil systems fed properly. Choose from among dozens of Weiand oil pan packages—a great option for drag race, road race, and circle track applications.



Brand: Weiand
Manufacturer's Part Number: 5004WND
Part Type: Oil Pans
Product Line: Weiand Oil Pan Packages
HP Direct Part Number: WND-5004WND
UPC: 090127718742
Sump Style: Wet
Oil Pan Style: Street/Strip
Rear Main Seal Style: 2-piece
Sump Location: Rear
Dipstick Location: Passenger side
Oil Pan Capacity: 7.00 quarts
Stroker Clearanced: Yes
Dipstick Provision: Yes
Dipstick Included: No
Oil Pan Depth (in.): 8.250
Oil Pan Material: Steel
Oil Pan Color: Black
Baffled: Yes
Kicked Out: Yes
Kickout Position: Driver and passenger side
Windage Tray Included: No
Pickup Included: Yes
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Crank Scraper Included: No
Gaskets Included: Yes
Hardware Included: Yes
Quantity: Sold as a kit.
Notes: Fits most chassis except '62-'67 Chevy II and V-8 Vega and Monza.
Special Attention: This only fits the 1980-1985 305 and 350 blocks with the two piece rear main seal and passenger side oil dip stick.
