Titan OT Metallic Clutch Kits 56-807

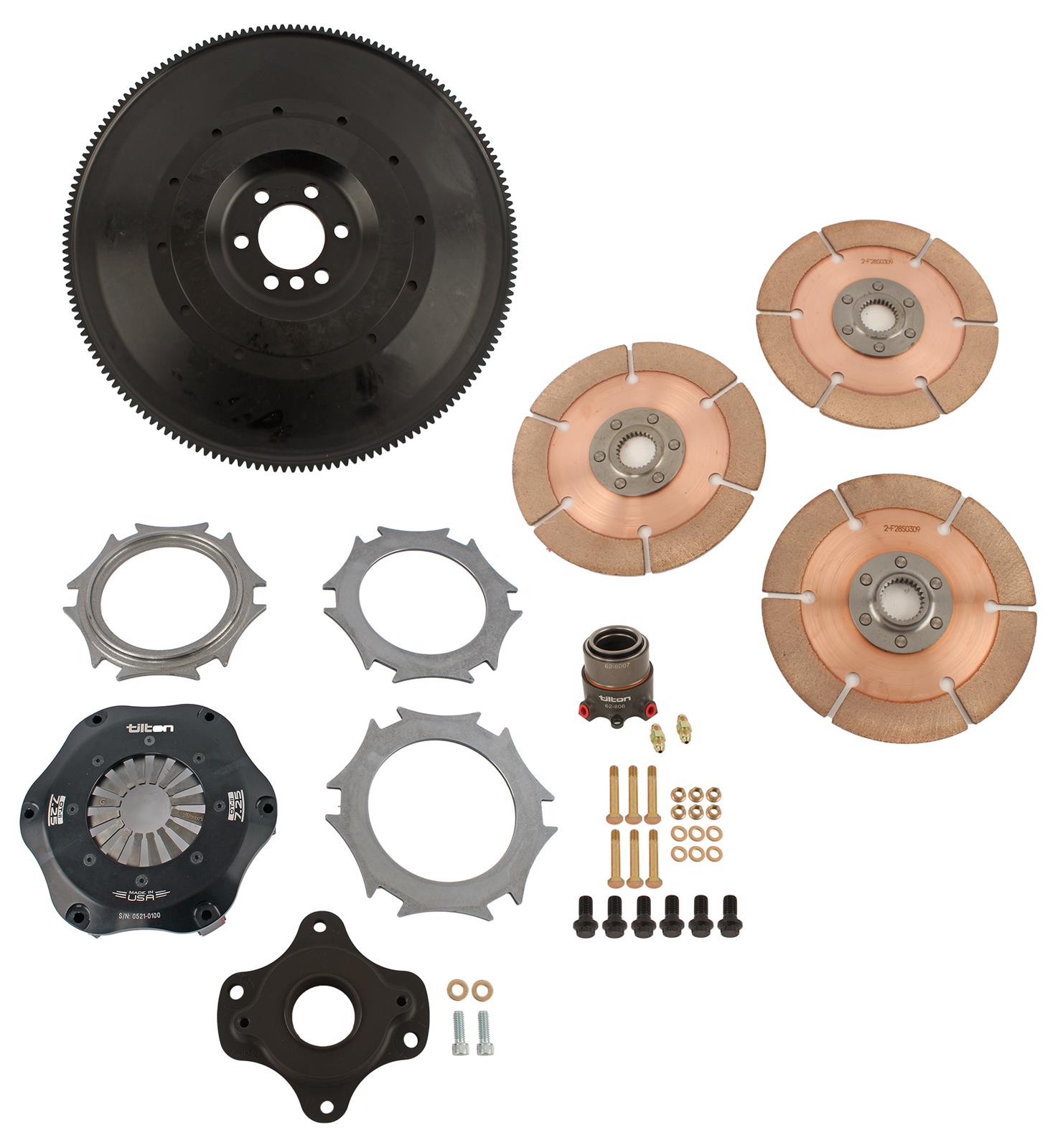

Tilton's Chevy clutch-flywheel assemblies are designed to be a direct replacement for the stock assemblies of both the C5 and C6 Corvette, as well as the Gen5 Camaro, retaining the same diameter (ring gear size) as originally equipped with the car. Metallic clutch-flywheel assemblies include a 7.25 in. 3-plate OT-Series metallic race clutch, disc pack, billet steel flywheel with integral ring gear, hydraulic release bearing assembly and related hardware. Order the model recommended for your vehicle.Brand: Tilton Engineering
Manufacturer's Part Number: 56-807
Part Type: Clutch Kits
Product Line: Titan OT Metallic Clutch Kits
HP Direct Part Number: TIL-56-807
Clutch Usage: Performance
Clutch Disc Quantity: 3
Flywheel Included: Yes
Input Spline Quantity: 26
Input Shaft Diameter: 1.125 in.
Disc Diameter (in.): 7.250 in.
Disc Diameter (mm): 184mm
Disc Material: Metallic
Disc Style: 6-paddle
Hub Style: Solid
Pressure Plate Style: Diaphragm
Throwout Bearing Included: Yes
Throwout Bearing Style: Hydraulic
Alignment Tool Included: Yes
Pilot Bushing Included: No
Flywheel Material: Billet steel
Flywheel Bolt Quantity: 6
Counterweight Assist: No
Mounting Hardware Included: Yes
Quantity: Sold as a kit.
