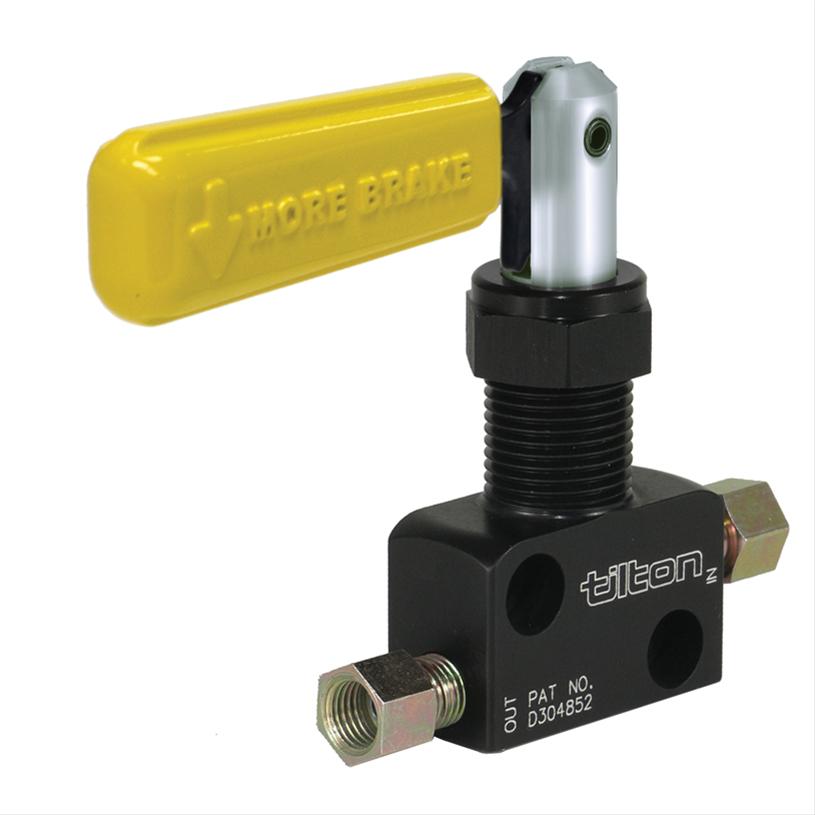

Tilton Brake Proportioning Valves 90-1000

Tilton's lightweight, adjustable, billet aluminum, hydraulic brake proportioning valves make it easy for crew members or drivers to make quick, precise adjustments to brake bias. Lever types have seven distinct "click-stop" positions, and their big, bright red handles make determining the level of bias selected as easy as a quick glance. Knob types offer the ability to vary the adjustment in bigger or smaller increments as needed, simply by turning the knurled knob more or less.Brand: Tilton Engineering
Manufacturer's Part Number: 90-1000
Part Type: Brake Proportioning Valves and Distribution Blocks
Product Line: Tilton Brake Proportioning Valves
HP Direct Part Number: TIL-90-1000
Adjustment Style: Lever
Inlet Quantity: 1
Inlet Attachment: Female threads
Brake Line Inlet Size: -3 AN
Outlet Quantity: 1
Outlet Attachment: Female threads
Brake Line Outlet Size: -3 AN
Connector For Warning Light: No
Minimum Pressure (psi): 100 psi
Maximum Pressure (psi): 3,000 psi
Pressure Reduction (%): 57 percent
Proportioning Valve Finish: Black anodized
Proportioning Valve Material: Aluminum
Remanufactured: No
Quantity: Sold individually.
Notes: Features seven distinct brake pressure reduction positions. Includes one -3AN male to 3/8 in. -24 female Inverted Flare adapter fitting and one -3AN male to -3AN male fitting.
