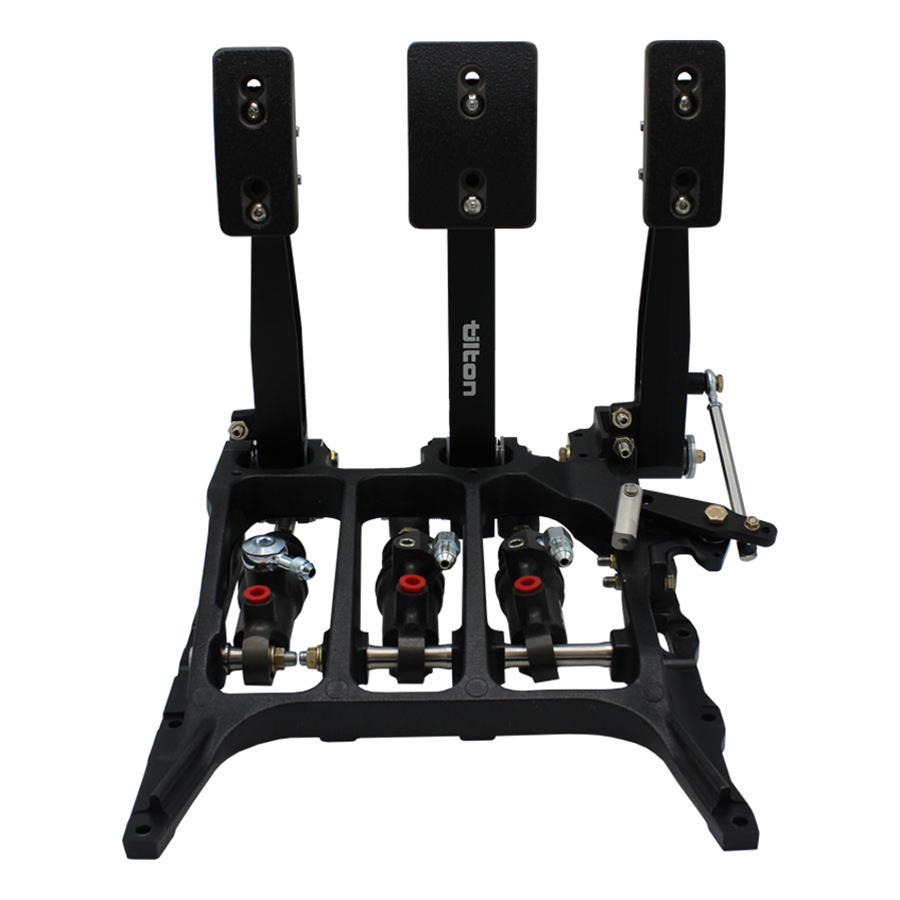

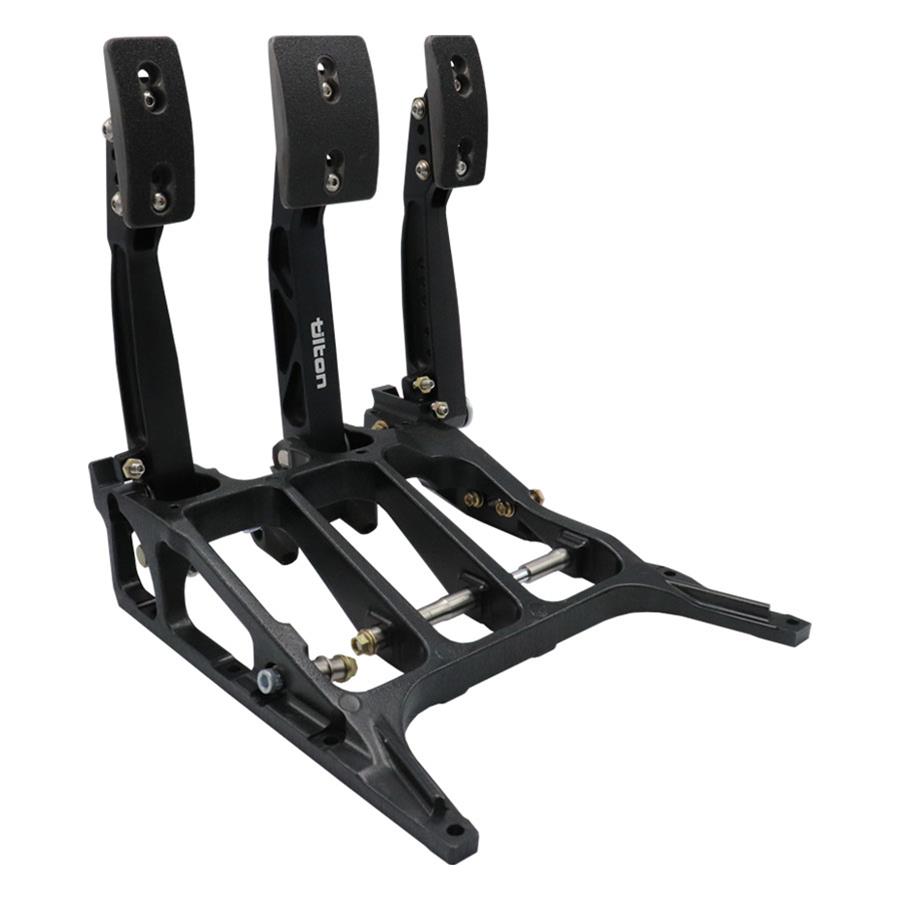

Tilton 850-Series Underfoot Pedal Assemblies 72-856

Tilton 850-Series underfoot pedal assemblies combine the value of their 600-Series with the technology of their 900-Series. The 850-Series assemblies feature a high-efficiency balance bar designed to limit motion to the horizontal plane, reducing friction and brake pressure migration.

Additional features include:

* Fully optimized for strength and weight using Finite Element Analysis (FEA)
* Large diameter 7/16 in. diameter balance bar minimizes flex to provide a solid pedal feel/response.
* PTFE-coated aluminum clevises for increased durability and reduced friction
* Lightweight forged aluminum pedals provide high strength and rigidity
* Pedal pivots have wave washers to reduce lateral pedal movement and oil impregnated bronze bushings for smooth operation with long service life
* Adjustable pedal ratio
* Adjustable pedal pad positions
Brand: Tilton Engineering
Manufacturer's Part Number: 72-856
Part Type: Pedal Assemblies
Product Line: Tilton 850-Series Underfoot Pedal Assemblies
HP Direct Part Number: TIL-72-856
Pedal Type: Throttle/Brake/Clutch
Pedal Mounting Location: Floor mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Black
Pedal Color: Black anodized
Gas Pedal Shape: Rectangle
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: 5.4:1 to 6.9:1
Gas Pedal Width (in.): 1.60 in.
Brake Pedal Width (in.): 2.60 in.
Clutch Pedal Width (in.): 1.60 in.
Balance Bar Included: Yes
Master Cylinder Style: Dual
Quantity: Sold individually.
