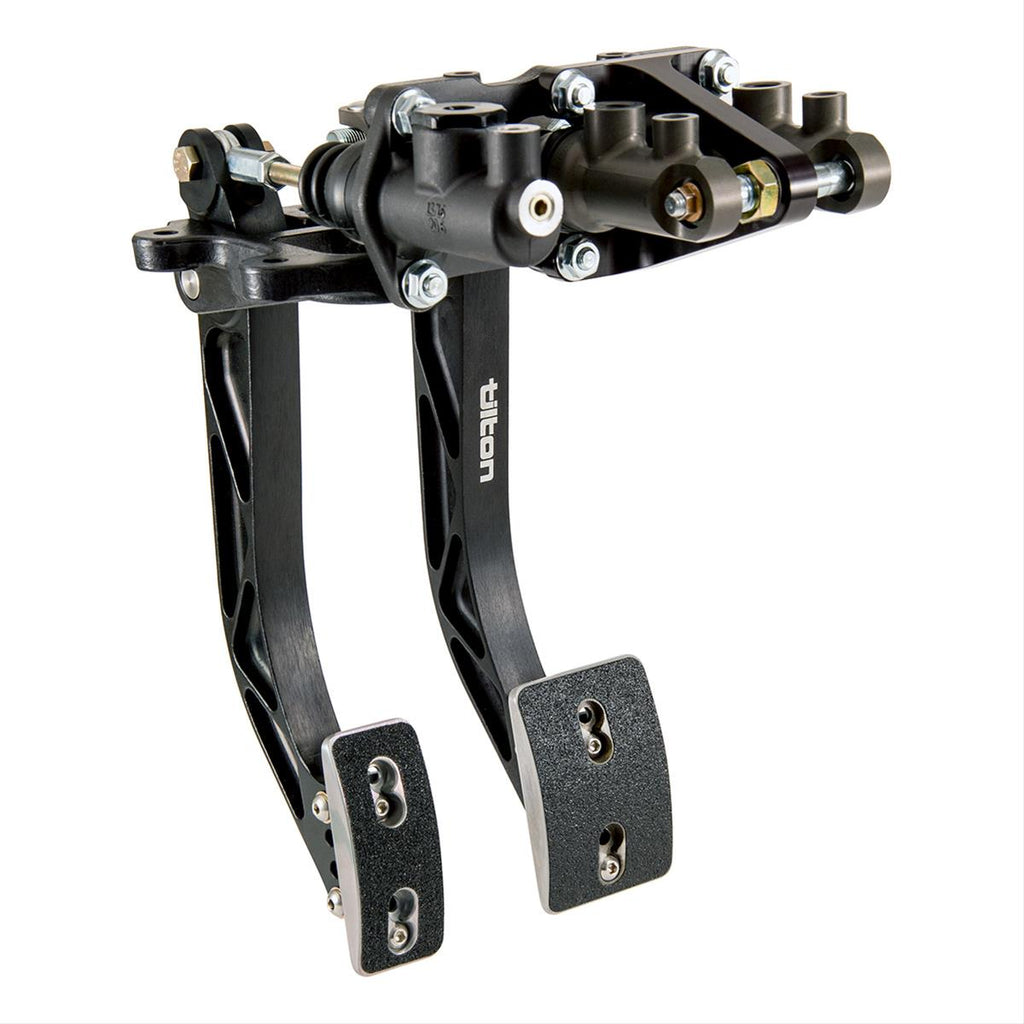

Tilton 800-Series Overhung-Mount Pedal Assemblies 72-808

Tilton's 800-Series overhung pedal assembly merges the performance of 900-Series technology and the renowned value of 600-Series pedal assemblies. These units feature a high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.

Additional features:

* Forged aluminum pedals are engineered for high rigidity and low weight
* Adjustable pedal ratios (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size
* Foot pads can be adjusted vertically, horizontally, and in angle to suit individual driver preferences
* Large diameter 7/16 in.-20 balance bar provides maximum rigidity; PTFE-coated aluminum clevises for increased durability and reduced friction
* Pedal pivots feature wave washers to reduce lateral pedal movement; and oil-impregnated bronze bushings decrease stiction
* Lightweight aluminum frame features guide "ramps" to reduce balance bar tipping—decreasing friction and improving brake repeatability
Brand: Tilton Engineering
Manufacturer's Part Number: 72-808
Part Type: Pedal Assemblies
Product Line: Tilton 800-Series Overhung-Mount Pedal Assemblies
HP Direct Part Number: TIL-72-808
Pedal Type: Brake/Clutch
Pedal Mounting Location: Underdash mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Black
Pedal Color: Black
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: 5.0:1 to 6.2:1
Balance Bar Included: No
Quantity: Sold individually.
