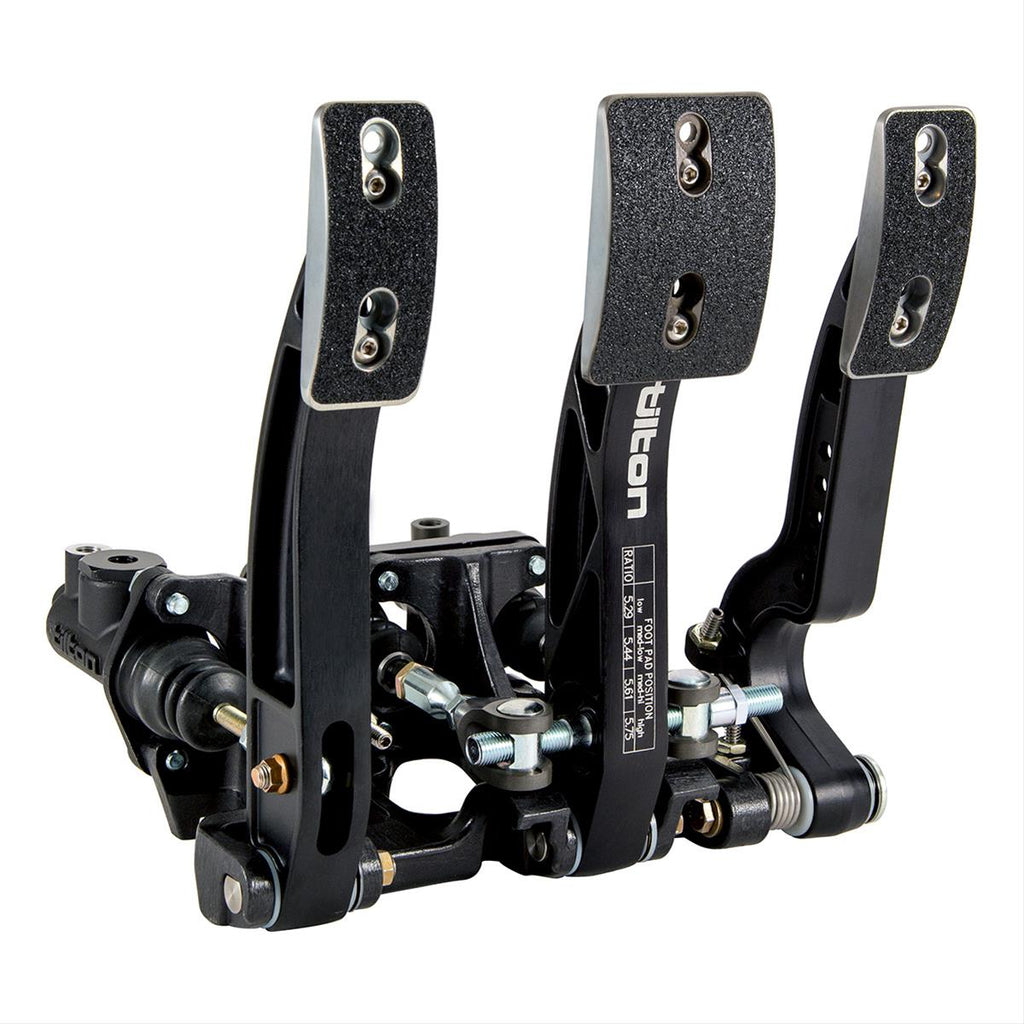

Tilton 800-Series Floor Mount Pedal Assemblies 72-803

Tilton 800-Series floor mount pedal assemblies merge both the performance of their 900-Series technology and the renowned value of Tilton's 600-Series pedal assemblies. These floor mount pedal assembly units feature a high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.

800-Series floor mount pedal assemblies feature:

* Forged aluminum pedals are engineered for high-rigidity and low-weight
* Adjustable pedal ratios (5.29:1 – 5.75:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size
* Foot pads can be adjusted vertically, horizontally, and in angle to suit individual driver preferences
* Large diameter 7/16 in.-20 balance bar provides maximum rigidity; PTFE-coated aluminum clevises for increased durability and reduced friction
* Pedal pivots feature wave washers to reduce lateral pedal movement; and oil-impregnated bronze bushings decrease stiction
* Lightweight aluminum frame features guide "ramps" to reduce balance bar tipping—decreasing friction and improving brake repeatability
Brand: Tilton Engineering
Manufacturer's Part Number: 72-803
Part Type: Pedal Assemblies
Product Line: Tilton 800-Series Floor Mount Pedal Assemblies
HP Direct Part Number: TIL-72-803
Pedal Type: Throttle/Brake/Clutch
Pedal Mounting Location: Floor mount
Pedal Pad Included: Yes
Master Cylinder Included: No
Brake Booster Included: No
Throttle Cable Included: No
Pedal Material: Aluminum
Pedal Pad Attachment: Bolt-on
Pedal Pad Material: Aluminum
Pedal Pad Color: Black
Pedal Color: Black
Gas Pedal Shape: Rectangle
Brake Pedal Shape: Rectangle
Clutch Pedal Shape: Rectangle
Pedal Ratio: Variable
Balance Bar Included: Yes
Quantity: Sold individually.
